Marine Fire-Resistant Cables: M2XH & M2XCH – Innovating Safety for Critical Maritime Lifelines

Introduction

Marine environments present some of the most challenging conditions for electrical installations, where the combination of salt spray, temperature extremes, mechanical stress, and the ever-present risk of fire creates a perfect storm of potential hazards. In this demanding context, the selection of appropriate power and control cables becomes not just a matter of electrical performance, but quite literally a question of life and safety.

The maritime industry has developed specialized cable systems designed to maintain electrical integrity even under the most extreme conditions. Among these, the M2XH and M2XCH cable families represent the pinnacle of marine cable engineering, specifically designed for applications where sustainable electrical connection during fire events is absolutely critical.

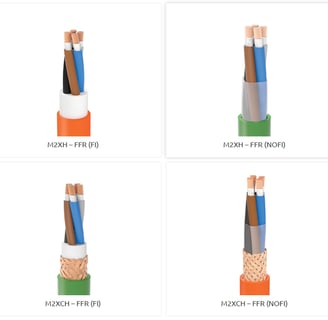

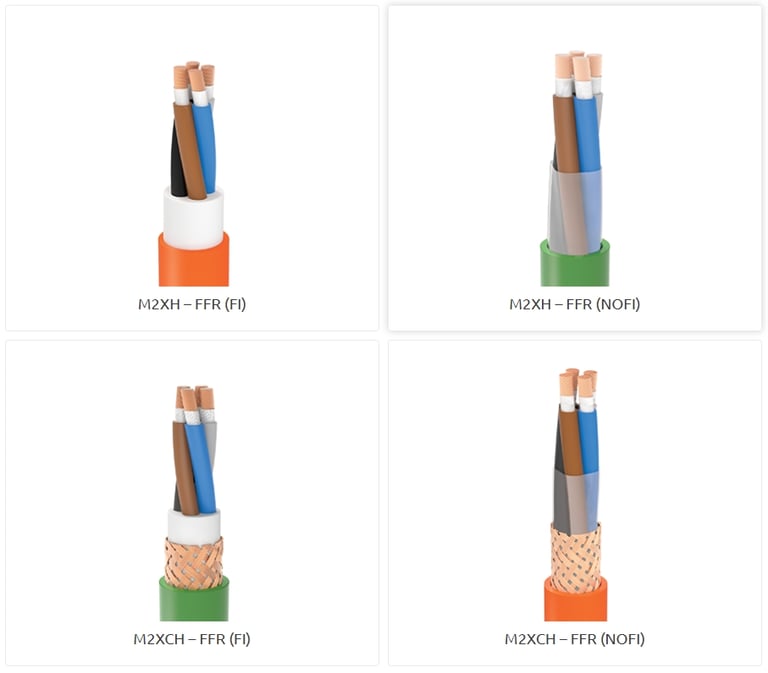

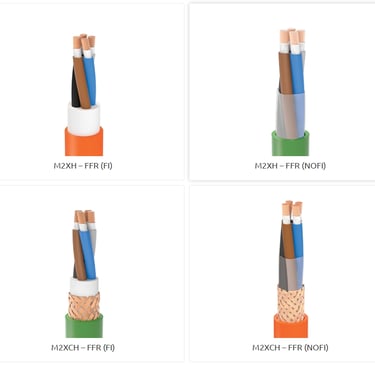

This comprehensive examination focuses on four distinct cable variants within these families: the M2XH – FFR in both FI (Fire Insulated) and NOFI (Non-Fire Insulated) configurations, and the M2XCH – FFR series, also available in both FI and NOFI versions. Understanding the subtle but crucial differences between these cable types is essential for marine engineers, naval architects, and installation professionals who must ensure that critical systems remain operational when lives depend on them.

The designation "FFR" stands for Flame, Fire, and Radiation resistant, indicating these cables' ability to withstand not only the direct effects of fire but also the thermal radiation that precedes and accompanies marine fire events. The distinction between FI and NOFI variants relates to the cable's ability to maintain circuit integrity during fire exposure, with FI cables specifically engineered to continue functioning even when directly exposed to flames.

Application Scenarios and Critical Systems Integration

The primary application domain for M2XH and M2XCH cables encompasses fixed installations within marine vehicles, where they serve as the electrical backbone for various electromechanical and electronic equipment systems. However, understanding their specific applications requires a deeper appreciation of the unique challenges present in maritime environments.

In modern vessels, these cables find their most critical applications in engine room automation systems, where they must withstand not only the elevated ambient temperatures typical of machinery spaces but also the potential for hydrocarbon fires. Engine control systems, fuel injection monitoring, and automated fire suppression systems all rely on these specialized cables to maintain functionality during emergency conditions. The ability of FI variants to continue operating during fire events means that critical engine shutdown procedures can be completed safely, even when the engine room is compromised by fire.

Emergency lighting systems represent another crucial application area where the distinction between FI and NOFI cables becomes paramount. During a maritime emergency, the vessel's primary power may be compromised, making emergency lighting systems the difference between successful evacuation and tragedy. FI cables ensure that escape route lighting remains operational even as fire spreads through the vessel, providing precious additional minutes for crew and passengers to reach safety stations.

Fire detection and alarm systems present perhaps the most obvious application for fire-resistant cables. These systems must not only detect the presence of fire but continue to operate and provide information to the bridge and damage control teams throughout the emergency. The use of FI cables in these applications ensures that fire detection systems can provide real-time information about fire spread and intensity, enabling more effective firefighting strategies.

Navigation and communication systems, while not always requiring fire resistance, benefit significantly from the robust construction of these cables. The screening provided in M2XCH variants offers essential electromagnetic interference protection for sensitive electronic navigation equipment, radar systems, and communication arrays. In the confined metal environment of a ship's hull, electromagnetic compatibility becomes crucial for system reliability.

Offshore platforms present an even more demanding application environment, where the combination of hydrocarbon processing, extreme weather exposure, and the impossibility of immediate external assistance makes system reliability absolutely critical. These installations often specify FI cables throughout their critical systems, recognizing that any loss of control capability during an emergency could result in catastrophic consequences extending far beyond the platform itself.

The choice between FI and NOFI variants often comes down to risk assessment and regulatory requirements. FI cables, with their extruded halogen-free bedding compound, are essential for systems that must maintain operation during fire events, particularly those required by SOLAS (Safety of Life at Sea) conventions and similar maritime safety regulations. NOFI variants, utilizing separating foil instead of fire-resistant bedding, provide excellent flame retardancy and are suitable for systems where continued operation during fire is not mandated but where fire spread prevention remains important.

Technical Specifications and Engineering Considerations

Understanding the technical specifications of M2XH and M2XCH cables requires examining both their electrical performance characteristics and their physical construction elements, as both aspects contribute to their exceptional performance in marine environments.

From an electrical perspective, these cables operate at rated voltages of 0.6/1 kV, making them suitable for low and medium voltage applications typical of marine power distribution and control systems. The test voltage of 3.5 kV provides a substantial safety margin, ensuring reliable insulation performance even under the stress conditions common in marine installations. This voltage rating makes these cables particularly well-suited for motor control circuits, lighting systems, and instrumentation applications where voltage levels typically range from 110V to 690V.

The operating temperature range of -40°C to +90°C reflects the extreme conditions these cables may encounter, from arctic operations to tropical engine rooms. The lower temperature limit ensures that cable flexibility is maintained even in extreme cold, while the upper limit accommodates the elevated temperatures common in machinery spaces. During short-circuit conditions, these cables can withstand temperatures up to 250°C, providing crucial safety margins during fault conditions.

The minimum installation temperature of -15°C is a practical consideration that reflects the challenges of cable installation in cold climates. Below this temperature, the outer sheath materials may become too rigid for safe installation, potentially leading to cracking or other damage during handling. This specification guides installation planning and may require temporary heating of cable storage areas in extreme climates.

The conductor construction utilizes Class 5 stranded annealed copper conforming to IEC 60228 standards. This classification indicates a highly flexible conductor construction with numerous fine wire strands, providing excellent flexibility for installation in the confined spaces typical of marine applications. The option for Class 2 conductors or tinned copper provides flexibility for specific applications where different mechanical or corrosion resistance properties are required. Tinned copper conductors offer enhanced corrosion resistance in marine environments, though at some cost in electrical conductivity.

The fire barrier construction utilizing mica tape represents one of the most critical elements in these cables' fire performance. Mica, being a naturally occurring silicate mineral, maintains its structural integrity at extremely high temperatures. When exposed to fire, the mica tape forms a protective ceramic-like barrier that maintains electrical insulation even as organic materials in the cable begin to decompose. This fire barrier is what enables FI cables to maintain circuit integrity during fire exposure, allowing critical systems to continue operating when needed most.

Cross-linked polyethylene (XLPE) insulation provides the primary electrical insulation while offering superior thermal stability compared to conventional thermoplastic insulation materials. The cross-linking process creates a three-dimensional molecular structure that maintains its properties at elevated temperatures and provides excellent resistance to environmental stress cracking, a common failure mode in marine applications.

The inner covering specifications reveal the fundamental difference between FI and NOFI variants. FI cables utilize a halogen-free bedding compound that works in conjunction with the mica tape fire barrier to maintain circuit integrity during fire exposure. This bedding compound is specifically formulated to provide mechanical protection for the fire barrier while contributing to the overall fire resistance of the cable. NOFI variants substitute a separating foil for this bedding compound, providing mechanical separation between layers while maintaining flame retardancy but without the enhanced fire resistance properties.

For M2XCH variants, the addition of a copper braided screen with minimum 90% coverage provides essential electromagnetic interference shielding. This screening is particularly important in marine applications where electronic navigation equipment, communication systems, and sensitive control circuits must operate in close proximity to high-power electrical equipment. The option for tinned copper braiding provides enhanced corrosion resistance in marine atmospheres, though the choice between tinned and untinned screening often depends on specific installation requirements and cost considerations.

The outer sheath construction utilizing SHF1 compound represents the cable's primary defense against environmental hazards. This halogen-free, flame retardant, UV resistant, thermoplastic polyolefin-based compound provides resistance to oil, salt spray, ozone, and ultraviolet radiation while maintaining flexibility across the full operating temperature range. The halogen-free formulation is crucial in marine applications, as halogen-containing compounds can produce highly toxic and corrosive gases when exposed to fire.

Standards Compliance and Fire Performance Testing

The extensive testing standards applicable to these cables reflect the critical nature of their applications and the demanding environments they must survive. Understanding these standards provides insight into the rigorous qualification process these cables must undergo and the performance levels they guarantee.

Flame retardancy testing under IEC 60332-1-2 and IEC 60332-3-22 Category A standards ensures that these cables will not propagate fire when exposed to flame sources. The single cable test (60332-1-2) simulates the behavior of an individual cable when exposed to a small flame source, while the bundled cable test (60332-3-22) evaluates fire propagation characteristics when multiple cables are installed together, as is typical in marine installations. Category A classification represents the highest level of flame retardancy, indicating that even when multiple cables are bundled together, fire will not spread along the cable run.

Fire resistance testing under IEC 60331 standards represents the most demanding performance requirement for FI cable variants. This testing involves exposing energized cables to direct flame exposure while monitoring their ability to maintain circuit integrity. The test conditions include flame temperatures of approximately 750°C applied directly to the cable surface while the cable carries rated current. Successful completion of this test demonstrates that critical circuits will continue to operate even when directly exposed to fire, providing the time necessary for emergency procedures to be completed.

Smoke emission testing according to IEC 61034-1/-2 standards addresses the often-overlooked hazard of smoke production during fire events. In the confined spaces typical of marine installations, smoke production can quickly impair visibility and create respiratory hazards that may be more immediately dangerous than the fire itself. These cables are designed to produce minimal smoke when exposed to fire, helping to maintain visibility for evacuation procedures and firefighting efforts.

Halogen content testing under IEC 60754-1/-2 ensures that these cables will not produce the highly toxic and corrosive gases associated with halogen-containing materials when exposed to fire. This is particularly important in marine applications where evacuation routes may be limited and where the corrosive effects of halogen gases could damage critical electronic systems.

Ozone resistance testing according to IEC 60811-403 addresses the degradation effects of ozone exposure, which can be significant in marine environments where ozone concentrations may be elevated due to electrical equipment operation and atmospheric conditions. This testing ensures long-term reliability of the cable's outer sheath materials.

UV and sunlight resistance testing under EN 50289-4-17 A&B and ISO 4892-2&3 standards confirms the cables' ability to withstand prolonged exposure to ultraviolet radiation without degradation. This is essential for cables that may be exposed to sunlight during installation or in applications where they may be routed through areas with natural or artificial UV exposure.

The construction standard IEC 60092-353 and material testing standards IEC 60092-350 to 360 provide the comprehensive framework governing marine cable design and qualification. These standards address not only the individual component specifications but also the interaction between different cable elements and their performance as complete systems.

Mechanical Properties and Installation Considerations

The mechanical properties of these cables reflect careful engineering to balance flexibility for installation with durability for long-term service in challenging marine environments. The minimum bending radius specifications provide crucial guidance for cable routing and installation procedures.

For cables with diameters of 25mm or less, the minimum bending radius of 4 times the cable diameter allows for relatively tight routing while preventing damage to internal components. This specification is particularly important for smaller control and instrumentation cables that must often navigate through confined spaces with multiple direction changes.

For larger cables or those with screening (M2XCH variants), the increased minimum bending radius of 6 times the cable diameter reflects the additional mechanical constraints imposed by larger conductor sizes and the presence of metallic screening. The copper braided screen in M2XCH cables requires more generous bending radii to prevent damage that could compromise electromagnetic shielding effectiveness.

These bending radius requirements have significant implications for installation planning, particularly in retrofit applications where cable routing may be constrained by existing structural elements. Installation teams must carefully plan cable routes to ensure that minimum bending radii are maintained throughout the installation, as violations of these requirements can lead to premature cable failure or degraded performance.

Frequently Asked Questions: Practical Installation and Selection Guidance

The distinction between M2XH and M2XCH cable types often creates confusion among specifiers and installers. The fundamental difference lies in the presence of electromagnetic shielding in M2XCH variants. The copper braided screen in M2XCH cables provides essential protection against electromagnetic interference, making these cables ideal for installations serving sensitive electronic equipment such as navigation systems, communication equipment, or precision control circuits. The decision to specify screened cables should be based on electromagnetic compatibility requirements rather than simple preference, as the additional screening adds cost and installation complexity.

The selection between FI and NOFI variants represents one of the most critical decisions in marine cable specification. FI cables with their fire-resistant bedding compound are specifically designed and tested to maintain circuit integrity during fire exposure. This capability is essential for systems that must continue operating during emergency conditions, including emergency lighting, fire detection and alarm systems, emergency communications, and critical navigation equipment. The additional cost of FI cables is justified only when continued operation during fire is required by regulation or critical to safety. NOFI variants provide excellent flame retardancy and are suitable for systems where fire spread prevention is important but continued operation during fire is not required.

For outdoor or exposed deck applications, all variants of M2XH and M2XCH cables provide suitable environmental protection. The SHF1 outer sheath compound offers excellent resistance to ultraviolet radiation, ozone, and salt spray exposure. However, installation methods must still provide appropriate mechanical protection against physical damage from deck operations, cargo handling, or maintenance activities.

The chemical resistance properties of the SHF1 sheath material make these cables well-suited to marine environments where exposure to fuel oils, hydraulic fluids, cleaning chemicals, and salt spray is inevitable. However, specific chemical compatibility should be verified for applications involving prolonged exposure to unusual chemicals or extreme concentrations.

The flexibility advantages of Class 5 conductor construction become particularly apparent in marine installations where cable routing through confined spaces with multiple direction changes is common. The fine wire strands in Class 5 conductors provide superior flexibility compared to the larger strands used in Class 2 conductors, reducing installation stress and improving long-term reliability in applications subject to vibration or thermal cycling.

The practical implications of choosing NOFI over FI variants extend beyond simple cost considerations. While NOFI cables provide excellent flame retardancy and general fire performance, they lack the certified fire survival capability of FI variants. This means that systems connected with NOFI cables should be designed with the assumption that they will not remain operational during fire events, requiring alternative emergency procedures or backup systems where continued operation is critical.

Conclusion and Best Practices

The selection of appropriate marine cables represents a critical decision that extends far beyond simple electrical performance considerations. The M2XH and M2XCH cable families provide sophisticated solutions for marine applications where fire resistance, electromagnetic compatibility, and environmental durability are paramount concerns.

The key to successful cable selection lies in understanding the specific performance requirements of each application and matching those requirements to the appropriate cable configuration. Critical safety systems that must remain operational during fire events require FI variants with their certified fire survival capability. Systems requiring electromagnetic interference protection need the screening provided by M2XCH variants. Applications where cost optimization is important but fire spread prevention remains a concern may be well-served by NOFI variants.

The importance of using cables tested and certified to recognized marine standards cannot be overstated. The harsh marine environment and the critical nature of many marine electrical systems demand cables that have been thoroughly tested under conditions that simulate actual service requirements. The comprehensive testing requirements addressed by IEC 60092 series standards provide assurance that these cables will perform as expected when lives and valuable assets depend on their reliability.

Successful marine cable installations require close collaboration between designers, specifiers, and installation teams to ensure that cable routing, support, and termination practices maintain the performance capabilities built into these sophisticated cable systems. The minimum installation temperature requirements, bending radius limitations, and environmental protection needs must all be considered throughout the installation process.

As marine systems continue to evolve toward greater automation and electronic control, the importance of reliable cable systems will only increase. The M2XH and M2XCH cable families represent proven solutions that provide the reliability, safety, and performance required by modern marine applications. However, their successful application requires careful attention to specification details, proper installation practices, and ongoing maintenance appropriate to the marine environment.

The investment in high-quality fire-resistant marine cables represents not just a technical specification decision, but a commitment to the safety of crews, passengers, and valuable marine assets. In the unforgiving marine environment where external assistance may be hours or days away, the reliability provided by properly specified and installed cable systems can make the difference between a manageable incident and a catastrophic loss.
