Marine Cable Showdown: H07RN-F vs MYY Choosing the Right Solution for Harsh Environments

Introduction

In the unforgiving realm of marine environments, the integrity of a vessel's electrical and communication systems hinges critically on the selection of appropriate cables. Beyond merely transmitting power or data, these cables must withstand a relentless barrage of challenges: corrosive saltwater, extreme temperatures, mechanical stress, and constant exposure to UV radiation. Failure to choose the right cable can lead to catastrophic consequences, ranging from signal degradation and equipment malfunction to, most critically, safety hazards and system downtime. This article delves into two distinct yet vital cable types frequently employed in marine applications: H07RN-F and MYY. While both serve crucial roles, their inherent mechanical, electrical, and material properties dictate their suitability for specific onboard tasks. Understanding these differences is paramount for ensuring the signal integrity, safety, and durability of any marine electrical system.

Application Scenarios: Where Each Cable Shines

The primary distinction between H07RN-F and MYY cables lies in their intended applications, driven by their construction and material characteristics.

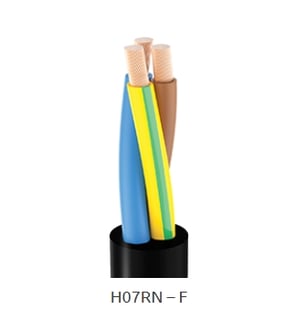

H07RN-F Cable: The Robust Performer

The H07RN-F cable is engineered for demanding roles, particularly as signal and communication lines within sophisticated shipborne systems such as radio, radar, and information networks. Its design prioritizes robust performance in harsh marine environments. The inclusion of twisted pairs is a critical feature, specifically designed to ensure effective high-frequency signal transmission. This twisted construction helps to mitigate electromagnetic interference (EMI) originating from both internal and external sources, thereby preserving signal quality. Furthermore, the optional overall screen provides an additional layer of EMI protection, creating a faraday cage effect that shields the sensitive signals within.

Beyond communication, the H07RN-F's exceptional durability makes it suitable for both mobile and fixed installations. You'll find it on ship decks, where it endures constant foot traffic, exposure to weather, and potential impacts. It's equally at home on offshore platforms and in temporary power setups where flexibility and resilience are paramount. Its superior resistance to oils, UV radiation, mechanical wear, and flame propagation are key attributes that make it the go-to choice for applications demanding longevity and reliability in challenging conditions.

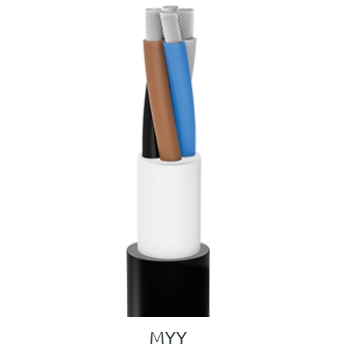

MYY Cable: The Fixed Workhorse

In contrast, the MYY cable is primarily intended for fixed installations within the electromechanical and electronic equipment of yachts and other marine vehicles. It is commonly found in control panels, lighting systems, and various onboard devices where the installed cables are subject to low mechanical stress. The MYY cable typically utilizes PVC insulation and sheathing. While PVC offers a cost-efficient solution, it comes with limitations. It is notably less resistant to oils and prolonged outdoor exposure compared to the rubber compounds used in H07RN-F. Consequently, MYY cables are best suited to dry, sheltered locations within vessels, such as inside bulkheads, conduits, or equipment enclosures, where they are protected from direct environmental stressors.

Electrical and Technical Parameters: A Closer Look

Delving into the technical specifications reveals the fundamental differences that define the performance envelopes of H07RN-F and MYY cables.

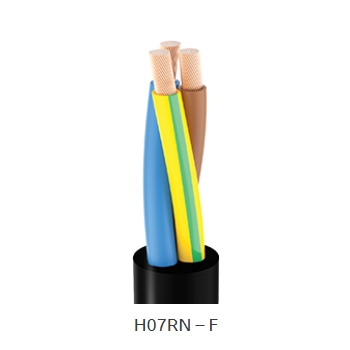

H07RN-F: Engineered for Extremes

The H07RN-F cable boasts impressive electrical and mechanical parameters, underscoring its suitability for rigorous marine applications.

• Voltage Rating: 450/750V, indicating its capability for robust power and signal transmission.

• Conductor: Features Class 5 annealed plain (or optional tinned) copper conductors, adhering to EN/IEC 60228. Class 5 conductors are finely stranded, providing excellent flexibility, which is crucial for dynamic applications.

• Insulation: Utilizes EI4 rubber (EPR - Ethylene Propylene Rubber) compound for insulation. EPR is renowned for its outstanding thermal properties, excellent dielectric strength, and superior resistance to water absorption, ozone, and chemicals.

• Sheath: Encased in an EM2/EM3 elastomer compound sheath, which is specifically designed to be UV- and oil-resistant. This rubber-based outer layer provides a robust barrier against external aggressors.

• Operating Temperature: Demonstrates a broad operating temperature range:

  • Mobile use: -25°C to +60°C, accommodating dynamic applications in varying climates.

  • Fixed use: -35°C to +85°C, allowing for stable performance in more stationary, yet potentially warm, environments.

  • Short-circuit: Capable of withstanding up to 200°C, providing a significant safety margin during fault conditions.

  • Surface temperature: Maximum +50°C, ensuring the cable remains safe to touch under normal operating conditions.

• Mechanical Specifications:

  • Min. bending radius: Defined per HD 516 Table 6.C, signifying its high flexibility and ease of installation, especially in confined spaces.

  • Max tensile load: 15 N/mm², indicating its significant mechanical strength and resistance to stretching forces.

• Compliance & Testing:

  • Flame Retardancy: Meets IEC/EN 60332-1-2, meaning it will not propagate a flame when subjected to a direct flame source.

  • Oil Resistance: Complies with IEC 60811-2-1, confirming its ability to resist degradation when exposed to various oils.

  • UV Resistance: Tested to EN 50289-4-17 A&B and ISO 4892-2&3, ensuring its long-term performance under direct sunlight and UV radiation.

  • Standards: Adheres to a comprehensive set of international and harmonized European standards, including EN 50525, HD 22, VDE 0282, IEC 60245, EN 50395, and EN 50396, guaranteeing its quality and safety.

MYY: Purpose-Built for Controlled Environments

The MYY cable, while less robust than H07RN-F, is perfectly adequate for its intended applications.

• Voltage Rating: Typically 300/500V or 450/750V, depending on the specific construction and intended application.

• Conductor: Features Class 5 tinned or bare copper conductors, complying with IEC 60228. The tinning provides enhanced corrosion resistance, which is beneficial in marine environments, even if the cable is installed internally.

• Insulation/Sheath: Primarily uses PVC (Polyvinyl Chloride) compound for both insulation and sheath. For multicore cables, a PVC bedding may also be present to provide a cushion and maintain the cable's circular shape.

• Construction & Materials Standards: Built according to marine-specific standards:

  • IEC 60092-353: Fixed wiring on ships, indicating its primary use case.

  • IEC 60092-351/359: Defines the characteristics of the insulation and sheath materials, respectively.

• Flame Retardancy: Meets IEC 60332-1-2, similar to H07RN-F. Crucially, multicore MYY cables also meet IEC 60332-3-22 Cat. A, signifying enhanced flame retardancy when installed in bunched conditions, a critical safety feature in shipboard wiring where cables may be routed closely together.

• Conductor Resistance: Conforms to IEC 60228, ensuring appropriate electrical conductivity.

Maritime Challenges: Addressing Common Questions

The selection of marine cables often raises specific questions regarding their performance under typical maritime stressors.

Q1: Which cable is better suited for environments exposed to oil and UV? A: Without a doubt, H07RN-F. Its rubber sheath (EM2/EM3) is specifically engineered and tested for superior oil resistance (HD 60811-2-1) and UV resistance (EN 50289-4-17 A&B, ISO 4892-2&3). In contrast, MYY's PVC sheath has limited endurance in such harsh conditions, making it susceptible to degradation, cracking, and loss of insulating properties when exposed to oils or direct sunlight over time.

Q2: Can MYY be used for signal transmission systems like radar or radio? A: Not recommended. MYY lacks the critical twisted pair construction and electromagnetic shielding (like an overall screen) that are absolutely essential for stable high-frequency signal transmission. In a marine environment, where various electrical systems can generate significant EMI, H07RN-F is far better designed for such purposes, ensuring signal integrity and minimizing interference with sensitive electronic equipment.

Q3: Are both cables flame-retardant? A: Yes, both cables meet the basic flame retardancy standard of IEC 60332-1-2, meaning they will not propagate a fire if a small flame is applied. However, MYY offers an enhanced safety feature for multicore types, as it also meets IEC 60332-3-22 Cat. A. This standard is crucial for bunched cables, as it assesses a cable's ability to resist vertical flame propagation when multiple cables are installed together, significantly reducing the risk of fire spread in dense cable trays commonly found on ships.

Q4: How do the cables differ in mechanical flexibility and durability? A: H07RN-F is significantly more flexible and robust. Its Class 5 stranded copper conductors combined with EPR (Ethylene Propylene Rubber) insulation and an elastomer sheath make it ideal for applications involving frequent movement, bending, or exposure to physical abuse. It can withstand substantial mechanical stress. MYY, with its PVC construction, is inherently more rigid and less resilient to repeated bending or physical impact. It is strictly intended for fixed setups with minimal movement where mechanical stress is not a primary concern.

Q5: What’s the impact of ambient temperature on installation and operation? A: H07RN-F possesses a much wider and more forgiving temperature range. Its minimum installation temperature of -25°C allows for cold weather deployment without risk of cable damage or cracking. Furthermore, its maximum short-circuit temperature of 200°C provides a crucial safety buffer, preventing insulation breakdown during electrical faults. MYY, on the other hand, has narrower thermal margins. Its PVC compounds can become brittle at low temperatures and soften at high temperatures, potentially leading to insulation failure or degradation. Therefore, MYY should not be used in environments where low temperatures or significant overheating risks are present.

Technical Knowledge Expansion: Deeper Insights

To truly appreciate the nuances of marine cable selection, it's beneficial to explore the underlying technical frameworks and material science.

Marine Cable Certification Frameworks: A Global Language

The marine industry relies on a robust framework of standards to ensure the safety and reliability of onboard electrical systems. The IEC 60092 series stands as the international reference for shipboard wiring, forming the bedrock for cables like MYY. This series provides comprehensive specifications for cables designed for fixed electrical installations in ships, covering everything from material requirements to test methods and flame retardancy.

In parallel, harmonized European standards like HD 516 and EN 50525 are frequently applied to general-purpose flexible cables, such as H07RN-F, when adapted for marine use. While IEC 60092 focuses specifically on ships, these European standards provide broad guidelines for robust cables in diverse environments, which are then often supplemented with marine-specific certifications where applicable. Understanding whether a cable adheres to an international marine standard or a general industrial standard adapted for marine use is crucial for compliance and performance validation.

EPR vs. PVC: A Material Science Showdown

The choice of insulating and sheathing materials fundamentally dictates a cable's performance characteristics.

• EPR (Ethylene Propylene Rubber) used in H07RN-F: EPR is a synthetic rubber known for its exceptional properties. It offers superior heat resistance, allowing for higher operating temperatures without degradation. Its excellent dielectric strength ensures efficient electrical insulation, even under fluctuating loads. Crucially for marine applications, EPR exhibits outstanding resistance to oils, chemicals, ozone, and weathering effects like UV radiation. This makes it incredibly durable in harsh outdoor and industrial environments, where exposure to various contaminants is common. Its flexibility across a wide temperature range also contributes to its mechanical robustness.

• PVC (Polyvinyl Chloride) used in MYY: PVC is a thermoplastic polymer widely used in cables due to its cost-effectiveness, ease of processing, and good electrical insulating properties. However, it has inherent limitations compared to EPR. While flame-retardant, PVC compounds can become brittle at low temperatures (e.g., below -15°C to -20°C) and soften at higher temperatures (e.g., above +70°C to +80°C), potentially compromising insulation integrity. Its resistance to UV radiation and oils is significantly lower than EPR, leading to premature aging, cracking, and plasticizer migration when exposed. This material science insight directly explains why H07RN-F is better suited for exposed and dynamic applications, while MYY is reserved for more controlled internal environments.

Electromagnetic Compatibility (EMC) in Marine Cabling: The Silent Battle

In the dense electronic landscape of a modern vessel, Electromagnetic Compatibility (EMC) is not merely a desirable feature but a critical safety and operational requirement. Electromagnetic interference (EMI) can disrupt sensitive navigation systems, communication equipment, and control systems, leading to hazardous situations.

This is precisely why shielded and twisted pair designs are paramount in high-frequency communication systems aboard ships, a feature prominently found in H07RN-F.

• Twisted pairs work on the principle of common-mode rejection. By twisting the conductors of a pair, any external electromagnetic noise induces approximately equal and opposite voltages in each wire. When the signal is received differentially, this common-mode noise is largely canceled out, leaving a clean signal. This is particularly effective against low-frequency magnetic interference.

• Shielding (e.g., an overall screen), typically a braided or foil layer, provides a Faraday cage effect. This conductive barrier intercepts external electromagnetic fields, diverting them to ground and preventing them from coupling with the internal conductors. It is highly effective against high-frequency electric field interference.

Beyond cable design, the role of cable layout and spacing is equally crucial in reducing cross-talk and interference. Proper cable management, including segregating power cables from signal cables, maintaining adequate spacing, and using grounded cable trays, can significantly minimize inductive and capacitive coupling between adjacent cables. Furthermore, ensuring proper grounding practices for cable shields is essential to prevent ground loops and enhance the effectiveness of the shielding. Neglecting these aspects, even with appropriately chosen cables, can undermine the entire system's EMC performance.

Conclusion

The vast and varied demands of the marine environment necessitate a discerning approach to cable selection. The H07RN-F cable stands out as the ideal choice for flexible, signal-critical, and harsh-environment use, particularly in applications involving communication systems, radar, and power distribution in exposed or high-stress areas. Its robust construction, superior material properties (EPR and elastomer sheath), and comprehensive resistance to oil, UV, and mechanical wear make it an indispensable component for reliable marine operations.

Conversely, the MYY cable is a suitable and cost-effective solution for protected, fixed installations in controlled environments within vessels. While it excels in areas with low mechanical stress and limited exposure to environmental aggressors, its PVC construction limits its resilience in demanding conditions.

Ultimately, a proper understanding of each cable's specific properties, adherence to relevant standards, and a keen awareness of marine-specific challenges are not just technical considerations but foundational elements for designing safe, efficient, and reliable electrical and communication systems aboard any marine vessel. Choosing the right cable is not merely a matter of compliance but a proactive measure to ensure the long-term operational integrity and safety of life at sea.
