Marine Cable Selection Guide: Understanding L-M2X vs M2X Cables for Maritime Applications

Introduction: Why Marine Cable Selection Matters

When you step aboard a modern vessel or offshore platform, you're entering a complex electrical ecosystem where every wire and cable plays a critical role in maintaining safety, functionality, and regulatory compliance. Unlike standard terrestrial electrical installations, marine environments present unique challenges that demand specialized cable solutions engineered to withstand saltwater corrosion, extreme temperatures, UV radiation, and the constant motion of the sea.

The selection between different types of marine cables isn't merely a technical preference—it's a decision that directly impacts system reliability, safety margins, and long-term operational costs. Today, we'll explore two prominent marine cable types: L-M2X and M2X cables, understanding when and why each excels in specific maritime applications.

Understanding the Fundamental Differences

Before diving into technical specifications, it's helpful to understand that L-M2X and M2X cables serve different primary purposes in marine electrical systems, much like how a precision screwdriver and a heavy-duty wrench both have their place in a mechanic's toolkit.

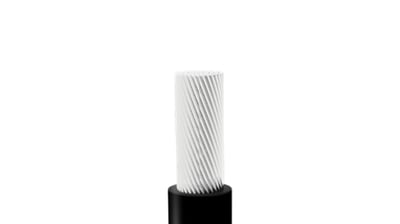

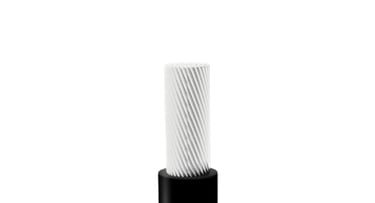

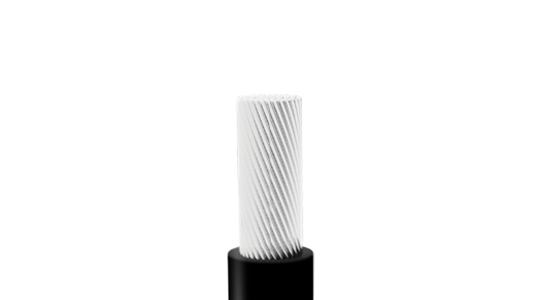

L-M2X cables are specialized for low-voltage control applications, particularly excelling in marine switchboard installations where their specific type approval provides both regulatory compliance advantages and optimal performance characteristics. Think of these as the precision instruments of marine wiring—designed for accuracy and reliability in control systems.

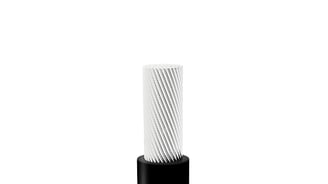

M2X cables, conversely, are engineered as the workhorses of marine power distribution, capable of handling higher voltages and substantially greater current loads. These cables form the backbone of a vessel's electrical infrastructure, delivering power to major equipment and systems throughout the ship.

Core Application Scenarios: Where Each Cable Shines

L-M2X: Precision in Control Systems

L-M2X cables find their optimal application in scenarios requiring precise, reliable control signal transmission. Their primary strength lies in marine switchboard applications, where they carry specific type approvals that streamline compliance with marine classification society requirements. This approval isn't merely a bureaucratic convenience—it represents validation that the cable's design, materials, and performance characteristics align perfectly with the demanding requirements of marine control environments.

In practical terms, you'll find L-M2X cables powering bridge instrumentation systems that provide critical navigation data, alarm systems that alert crews to potential hazards, and control panels that manage everything from lighting systems to auxiliary equipment. The cable's design emphasizes reliability and precision over raw power-handling capability.

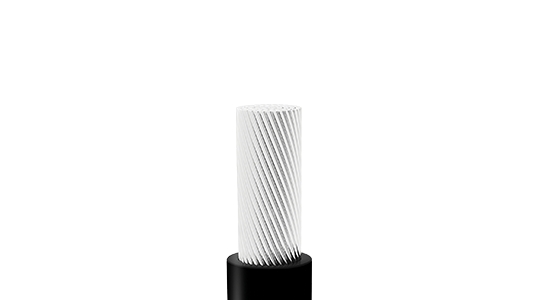

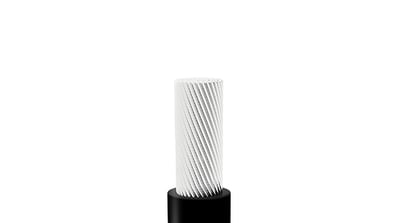

M2X: Robust Power Distribution

M2X cables excel in applications demanding substantial power delivery across a vessel's electrical infrastructure. These cables serve as the primary arteries of marine electrical systems, carrying power from generators to major equipment installations. Their robust construction and higher voltage ratings make them ideal for feeding power to propulsion motors, galley equipment, lighting circuits, and emergency power systems.

The M2X cable's ability to handle currents up to 590 amperes (in larger conductor sizes) while maintaining reliability under harsh marine conditions makes it indispensable for primary power distribution applications where system failure could compromise vessel safety or operational capability.

Technical Foundation: What Makes Marine Cables Special

Both L-M2X and M2X cables share several fundamental characteristics that distinguish them from standard electrical cables. Understanding these shared features helps appreciate why marine-specific cables command premium pricing and why substituting standard cables represents a false economy in maritime applications.

Advanced Conductor Technology

Both cable types utilize electrolytic, stranded, annealed copper conductors conforming to IEC 60228 Class 5 specifications. This isn't merely high-quality copper—it's copper that has been refined and processed to maximize conductivity while providing the flexibility necessary for marine installations. The stranding pattern allows the conductor to flex repeatedly without work-hardening and eventual failure, a critical characteristic in environments where cables experience constant vibration and movement.

Halogen-Free, Flame-Retardant Construction

Perhaps the most critical shared characteristic is both cables' use of Halogen-Free, Flame-Retardant Cross-Linked Polyolefin Compound (HF90) for insulation and sheathing. This material choice reflects a fundamental understanding of marine fire safety requirements. In the confined spaces of a vessel, toxic fume generation during a fire can be as dangerous as the fire itself. Traditional PVC cables, while less expensive, release hydrochloric acid and other toxic compounds when heated, creating deadly atmospheric conditions that can trap crew members and hamper firefighting efforts.

The HF90 compound eliminates this hazard while maintaining excellent electrical insulation properties and mechanical durability. This material also provides superior resistance to UV radiation and ozone exposure, extending cable life in exposed installations.

Environmental Resilience

Both cable types are engineered to operate reliably across temperature ranges from -40°C to +90°C, accommodating everything from Arctic shipping routes to tropical installations. This temperature stability isn't achieved through simple material selection—it requires careful engineering of thermal expansion coefficients and material compatibility to prevent insulation cracking or conductor stress across these extreme ranges.

Critical Differences: Choosing the Right Tool for the Job

While L-M2X and M2X cables share fundamental marine-grade construction principles, their differences determine appropriate application selection.

Voltage and Current Capabilities

The most fundamental difference lies in electrical capacity. L-M2X cables are rated for 300/500V operation with conductor sizes ranging from 0.5mm² to 2.5mm², supporting currents up to approximately 29 amperes. This capacity aligns perfectly with control system requirements where precision and reliability matter more than raw power delivery.

M2X cables, rated for 0.6/1kV operation with conductor sizes spanning from 1mm² to 300mm², can handle currents up to 590 amperes in their largest configurations. This dramatic difference in power-handling capability makes M2X cables essential for main power distribution where substantial electrical loads must be supplied reliably.

Installation Considerations

M2X cables specify a minimum installation temperature of -15°C, providing clear guidance for cold-weather installations. This specification isn't arbitrary—it reflects the cable's insulation and sheathing materials' flexibility characteristics at low temperatures. Installing cables below their minimum temperature rating can cause insulation cracking or conductor damage, creating long-term reliability issues.

L-M2X cables, while not specifying this parameter explicitly, typically follow standard marine cable installation practices requiring temperatures above 0°C unless special precautions are taken.

Type Approval Advantages

L-M2X cables often carry specific type approvals for marine switchboard applications from major classification societies. This approval process involves rigorous testing and validation of the cable's performance in typical switchboard environments, including verification of flame propagation characteristics, smoke generation, and electrical performance under various load conditions.

While M2X cables can certainly be used in switchboard applications, L-M2X's specific approval streamlines the compliance process and provides additional assurance of optimal performance in these critical control environments.

Selection Strategy: Matching Cable to Application

Selecting between L-M2X and M2X cables requires systematic evaluation of several key factors that determine optimal performance and compliance.

System Voltage Requirements

Start by identifying your system's operating voltage. Applications operating at or below 500V may utilize either cable type, but those requiring 600V or higher operation mandate M2X cables. This isn't merely a matter of safety margin—using under-rated cables in higher voltage applications violates marine safety standards and creates serious fire and electrocution hazards.

Current Loading Analysis

Calculate the maximum current each circuit will carry, including appropriate safety factors for marine applications. L-M2X cables excel in control circuits where currents rarely exceed 25 amperes, while M2X cables become necessary for power distribution circuits carrying substantial loads.

Environmental Exposure Assessment

Consider the installation environment carefully. Both cable types handle typical marine environmental stresses well, but installations involving extended UV exposure, extreme temperature variations, or mechanical stress may benefit from M2X cables' more robust construction, even in lower-power applications.

Regulatory Compliance Requirements

Always verify classification society requirements for your specific application and vessel type. While both cables meet general marine standards, specific applications may mandate particular approvals or certifications that influence cable selection.

Installation Best Practices and Considerations

Proper installation significantly impacts marine cable performance and longevity, regardless of cable type selection. Understanding key installation principles helps ensure optimal system performance and regulatory compliance.

Bend Radius Management

Both L-M2X and M2X cables specify minimum bend radii of four times the cable's outer diameter. This requirement prevents insulation stress and conductor damage during installation. In practice, larger M2X cables naturally require larger bend radii, potentially influencing routing decisions in space-constrained installations.

Support and Protection

Marine installations require appropriate cable support to prevent stress from vessel movement and vibration. Cable ties, clamps, and support brackets must be spaced appropriately and constructed from materials compatible with the marine environment. Stainless steel or plastic supports resist corrosion better than standard steel hardware.

Termination Techniques

Proper cable termination using marine-grade connectors and terminals ensures reliable electrical connections that withstand marine environmental stresses. Use tinned copper lugs and appropriate torque specifications to prevent connection degradation over time.

Future Considerations and Technology Evolution

Marine cable technology continues evolving to meet increasing demands for efficiency, safety, and environmental responsibility. Understanding these trends helps inform current selection decisions and future planning.

Enhanced Fire Safety Standards

Regulatory bodies continue strengthening fire safety requirements for marine cables, particularly regarding smoke generation and toxic fume emission. Both L-M2X and M2X cables' halogen-free construction positions them well for evolving regulatory requirements.

Integration with Smart Systems

Modern vessels increasingly incorporate sophisticated monitoring and control systems that demand reliable data transmission alongside power delivery. While both cable types primarily serve power transmission roles, understanding their electromagnetic compatibility characteristics becomes increasingly important in integrated system designs.

Conclusion: Strategic Cable Selection for Maritime Success

Selecting appropriate marine cables represents a critical decision point that influences vessel safety, operational reliability, and long-term maintenance costs. L-M2X cables excel in precision control applications where specific type approvals and optimized performance characteristics provide clear advantages. M2X cables serve as the robust foundation for power distribution systems where higher voltage and current capabilities are essential.

The key to successful cable selection lies in understanding your specific application requirements, environmental conditions, and regulatory obligations. Never compromise on marine-grade cable quality—the harsh marine environment quickly exposes any weakness in cable construction or material selection.

Always consult official manufacturer technical data sheets and relevant marine classification society requirements before finalizing cable selection and installation plans. The investment in proper marine cables and professional installation pays dividends in system reliability, safety, and regulatory compliance throughout your vessel's operational life.

Remember that marine electrical systems are only as reliable as their weakest component. Choosing the right cable for each application ensures that your electrical infrastructure provides the dependable foundation your maritime operations demand.
