M2XSH Marine Cable: High-Performance, Flame-Retardant Power Solutions for Harsh Offshore & Shipbuilding

Introduction: The Critical Foundation of Maritime Electrical Systems

When we consider the complex electrical systems that power modern maritime vessels, we often focus on the sophisticated equipment and advanced control systems. However, the foundation of any reliable marine electrical installation lies in something far more fundamental yet equally critical: the cables that carry power throughout the vessel. In the unforgiving maritime environment, where salt spray, extreme temperatures, mechanical stress, and the constant threat of fire create a perfect storm of challenges, ordinary electrical cables simply cannot meet the demanding requirements.

The M2XSH marine cable represents a sophisticated engineering solution specifically designed to address these unique maritime challenges. This specialized cable system serves as the electrical backbone for fixed installations on ships, providing reliable power transmission while maintaining the highest standards of safety and durability. Understanding the engineering principles behind the M2XSH cable helps us appreciate why specialized marine cabling is not merely a luxury but an absolute necessity for modern maritime operations.

The development of marine-specific cables like the M2XSH stems from decades of learning from maritime electrical failures and accidents. Early maritime electrical systems often relied on adapted terrestrial cables, which frequently failed in the harsh marine environment, leading to power outages, equipment damage, and in worst cases, fire hazards that could endanger entire vessels. The evolution toward purpose-built marine cables represents a crucial advancement in maritime safety and operational reliability.

Application Scenarios: Where Engineering Meets Maritime Reality

The M2XSH cable finds its primary application in the most demanding areas of marine electrical installations, where the combination of environmental stressors and operational requirements creates unique challenges. These cables serve as the electrical lifelines for electromechanical and electronic equipment throughout marine vessels, from the engine room's heavy machinery to the bridge's sophisticated navigation systems.

In fixed installations on open decks, the M2XSH cable must withstand the full fury of maritime weather conditions. Consider the deck of a cargo vessel crossing the North Atlantic in winter, where the cable might experience temperatures well below freezing, constant salt spray, and intense ultraviolet radiation when the weather clears. The cable's outer sheath must maintain its integrity under these conditions while providing reliable electrical conductivity to critical deck equipment such as crane systems, lighting arrays, and communication equipment.

Internal ship zones present their own unique challenges. In engine rooms, cables must operate in high-temperature environments with significant mechanical vibration and potential exposure to fuel vapors and lubricants. The M2XSH cable's robust construction allows it to maintain electrical integrity while providing the mechanical protection necessary to prevent damage from the constant movement and vibration inherent in these spaces.

The versatility of M2XSH cables extends across various vessel types, each with distinct requirements. Passenger ships demand the highest levels of fire safety due to the large number of people on board, making the cable's flame-retardant and low-smoke properties essential. Cargo vessels require robust mechanical protection to withstand the stresses of loading and unloading operations, while offshore platforms need cables that can endure the constant exposure to salt water and extreme weather conditions that characterize offshore operations.

The selection of M2XSH for these applications reflects a careful balance of engineering considerations. The cable must provide reliable electrical performance while meeting stringent safety standards, all while maintaining cost-effectiveness for commercial maritime operations. This balance requires sophisticated materials engineering and manufacturing processes that optimize each component of the cable's construction.

Electrical and Physical Specifications: The Science Behind Marine Cable Engineering

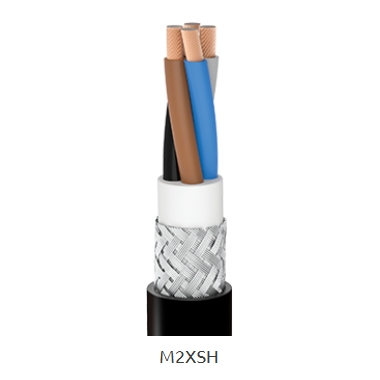

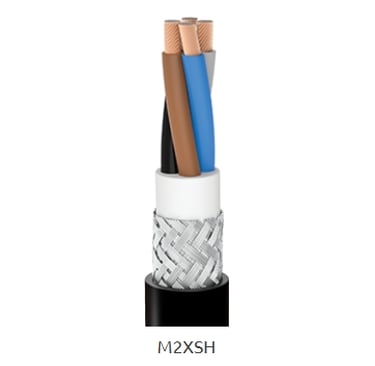

Understanding the construction of the M2XSH cable requires examining each component layer by layer, much like understanding the human body requires knowledge of its various systems working in harmony. Each element of the cable's design serves specific purposes that contribute to the overall performance and safety characteristics.

The conductor forms the electrical heart of the cable, utilizing stranded, annealed copper that conforms to IEC 60228 Class 5 specifications. This classification indicates a high degree of flexibility, which is crucial for marine applications where cables must navigate complex routing paths and withstand the constant movement of the vessel. The stranding pattern, which involves multiple fine copper wires twisted together, provides both flexibility and redundancy. If individual strands break due to mechanical stress, the remaining strands continue to carry current, ensuring continued operation.

The choice of annealed copper deserves particular attention. The annealing process involves heating the copper to specific temperatures and then cooling it in a controlled manner, which relieves internal stresses and increases the metal's ductility. This process is essential for marine applications because it allows the copper to withstand repeated bending and flexing without work hardening, which could lead to conductor failure over time.

The insulation system employs cross-linked polyethylene, commonly known as XLPE, which represents a significant advancement over traditional thermoplastic insulations. The cross-linking process creates chemical bonds between polymer chains, resulting in a material that maintains its properties at elevated temperatures and provides superior resistance to environmental stress cracking. This characteristic is particularly important in marine environments where temperature cycling and chemical exposure can degrade lesser insulation materials.

XLPE insulation offers several advantages that make it ideal for marine applications. Its excellent dielectric properties ensure reliable electrical performance across a wide temperature range, while its resistance to moisture absorption prevents the degradation that can occur in humid marine environments. The material's inherent flexibility also contributes to the cable's overall mechanical performance, allowing it to bend and flex without cracking or losing its insulating properties.

The inner sheath utilizes a halogen-free bedding compound, which serves multiple critical functions. This layer provides mechanical protection for the insulated conductors while also serving as a barrier against moisture ingress. The halogen-free formulation is particularly important for marine applications because it significantly reduces the emission of toxic and corrosive gases in the event of a fire. In the confined spaces of a ship, these emissions could pose serious health risks to crew and passengers attempting to evacuate or fight the fire.

The armor system represents one of the most critical aspects of marine cable design. The M2XSH employs galvanized steel wire braid with a minimum 90% coverage, providing exceptional mechanical protection against physical damage. The braided construction distributes mechanical stresses across multiple wire elements, preventing localized failure that could compromise the cable's integrity. The galvanization process coats the steel wires with zinc, providing corrosion resistance essential for marine environments where salt spray and high humidity are constant threats.

The armor serves dual purposes beyond mechanical protection. The steel braid also provides electromagnetic shielding, which is increasingly important in modern marine installations where sensitive electronic equipment must operate reliably despite the electromagnetic interference generated by large electrical motors and other equipment. This shielding capability helps ensure that control signals and data transmissions remain clear and accurate.

The outer sheath employs SHF1 compound, a sophisticated polyolefin-based material engineered specifically for marine applications. This material provides the cable's first line of defense against environmental hazards, including ultraviolet radiation, ozone, and temperature extremes. The polyolefin base provides excellent chemical resistance, while flame-retardant additives ensure that the cable meets stringent fire safety requirements without compromising its environmental resistance.

The standards compliance of the M2XSH cable reflects the rigorous testing and certification process required for marine electrical equipment. The flame retardancy standards, including IEC 60332-1-2 and IEC 60332-3-22 Category A, ensure that the cable will not propagate fire under various test conditions. These standards simulate real-world fire scenarios, including both single cable and bundled cable configurations, ensuring that the cable's fire performance remains consistent regardless of installation method.

The operational ratings of the M2XSH cable reflect careful engineering optimization for marine conditions. The 0.6/1 kV rating provides adequate voltage capability for most marine distribution systems while maintaining safety margins. The wide operating temperature range from -40°C to +90°C accommodates the extreme conditions encountered in marine service, from Arctic operations to tropical climates and high-temperature machinery spaces.

Frequently Asked Questions: Addressing Real-World Marine Installation Challenges

The practical application of M2XSH cables in marine environments raises numerous technical questions that reflect the complex challenges faced by marine electrical engineers and installers. Understanding these challenges and their solutions provides valuable insight into the sophisticated engineering behind modern marine electrical systems.

Question 1: How does M2XSH perform in open-deck installations exposed to UV and moisture?

The performance of cables in open-deck installations represents one of the most demanding applications in marine electrical systems. The combination of ultraviolet radiation, salt spray, temperature cycling, and mechanical stress creates an environment that can rapidly degrade inadequately designed cables. The M2XSH cable's SHF1 outer sheath addresses these challenges through sophisticated materials engineering that provides comprehensive environmental protection.

The UV resistance of the SHF1 compound comes from carefully selected stabilizers and antioxidants that absorb harmful ultraviolet radiation before it can damage the polymer matrix. This protection is quantified through testing according to EN 50289-4-17 and ISO 4892-2/3 standards, which simulate years of outdoor exposure in accelerated laboratory conditions. The testing process exposes cable samples to intense UV radiation while monitoring changes in mechanical properties, electrical performance, and visual appearance.

Moisture resistance involves multiple aspects of cable design working together. The outer sheath provides the primary barrier against moisture ingress, while the inner sheath serves as a secondary barrier. The armor system is designed to shed water rather than trap it, and the conductor stranding allows for some moisture migration without compromising electrical performance. This multi-layered approach ensures that even if one barrier is compromised, the cable continues to perform reliably.

Question 2: Is M2XSH cable safe in case of a fire onboard?

Fire safety represents perhaps the most critical concern in marine electrical installations, where the confined environment of a ship can turn a small electrical fire into a catastrophic event. The M2XSH cable incorporates multiple fire safety features that work together to minimize fire risk and provide safe evacuation conditions if a fire does occur.

The flame retardancy of the cable is achieved through carefully formulated compounds that release flame-suppressing gases when exposed to heat. These gases dilute the oxygen available for combustion and cool the burning material, effectively self-extinguishing the fire. The IEC 60332 standards test this capability under various conditions, including single cable tests and bundled cable tests that simulate real installation conditions.

The low smoke emission characteristics, tested according to IEC 61034 standards, ensure that visibility is maintained during evacuation procedures. Traditional cables can produce dense smoke that obscures exit routes and makes firefighting efforts extremely difficult. The M2XSH cable's halogen-free construction eliminates the production of corrosive gases that can damage equipment and pose health risks to personnel.

Question 3: Can M2XSH withstand harsh mechanical stress or vibration?

Marine environments subject cables to mechanical stresses that are rarely encountered in terrestrial applications. The constant motion of the vessel, combined with vibration from engines and other machinery, creates a challenging environment for electrical cables. The M2XSH cable's steel wire armor provides exceptional mechanical protection through its distributed load-bearing capability.

The braided armor construction distributes mechanical loads across multiple steel wires, preventing the concentration of stress that could lead to cable failure. This design allows the cable to flex and bend repeatedly without compromising its structural integrity. The armor also provides protection against impact damage from tools, equipment, and debris that might otherwise damage the cable during installation or operation.

The electromagnetic shielding provided by the armor is an additional benefit that becomes increasingly important as marine electrical systems incorporate more sensitive electronic equipment. The steel braid creates a Faraday cage effect that prevents electromagnetic interference from affecting the cable's performance or interfering with nearby equipment.

Question 4: What precautions are needed during installation in cold climates?

Cold weather installation presents unique challenges for marine cables, as low temperatures can make materials brittle and difficult to handle. The M2XSH cable is rated for installation at temperatures as low as -15°C, but proper installation techniques are essential to ensure optimal performance.

Below the minimum installation temperature, the cable's outer sheath and insulation materials become less flexible, increasing the risk of cracking or damage during installation. Pre-warming the cable or using heated storage areas can help maintain flexibility during installation. Installation crews must also be aware that the minimum bending radius increases at low temperatures, requiring more careful route planning to avoid sharp bends that could damage the cable.

The installation process should also consider thermal expansion and contraction effects. Cables installed in extremely cold conditions will expand when they reach normal operating temperatures, potentially creating stress concentrations if not properly supported. Proper cable support and routing design must account for these thermal effects to ensure long-term reliability.

Question 5: Is the cable environmentally friendly in terms of emissions and disposal?

Environmental considerations are becoming increasingly important in marine operations, driven by both regulatory requirements and corporate responsibility initiatives. The M2XSH cable's halogen-free construction significantly reduces its environmental impact compared to traditional marine cables.

The elimination of halogens from the cable's construction prevents the formation of highly toxic and corrosive gases during combustion. These gases, including hydrogen chloride and hydrogen fluoride, can cause severe environmental damage and pose serious health risks. The halogen-free design ensures that even in the worst-case scenario of a fire, the cable's environmental impact is minimized.

The materials used in the M2XSH cable are also selected for their recyclability and environmental compatibility. The copper conductors are fully recyclable, while the polyolefin-based compounds can be processed through appropriate recycling streams. This consideration becomes increasingly important as the maritime industry moves toward more sustainable practices and circular economy principles.

Conclusion: The Future of Marine Electrical Infrastructure

The M2XSH marine cable represents more than just a technical solution to the challenges of marine electrical installations; it embodies the evolution of maritime electrical engineering toward higher standards of safety, reliability, and environmental responsibility. Through its sophisticated multi-layer construction and compliance with rigorous international standards, this cable system provides the foundation for safe and reliable electrical power distribution in the world's most demanding maritime environments.

The cable's design philosophy reflects a deep understanding of the unique challenges faced by marine electrical systems. From the flexible copper conductors that accommodate the constant motion of vessels to the flame-retardant outer sheath that protects against fire hazards, every aspect of the M2XSH cable has been optimized for marine service. This optimization extends beyond mere technical specifications to encompass real-world installation challenges, environmental concerns, and the operational realities of modern maritime operations.

As the maritime industry continues to evolve toward more sophisticated electrical systems and higher environmental standards, cables like the M2XSH will play an increasingly critical role in enabling safe and reliable operations. The integration of renewable energy systems, advanced automation, and digital technologies in marine applications will demand even higher levels of electrical system reliability, making the robust design and proven performance of specialized marine cables more important than ever.

The M2XSH cable's compliance with global maritime standards ensures its acceptance across international waters, providing vessel operators with the confidence that their electrical installations meet the highest standards of safety and performance. This standardization is crucial for the global maritime industry, where vessels must operate safely and reliably regardless of their location or the waters they traverse.

Looking forward, the principles embodied in the M2XSH cable design will continue to influence the development of next-generation marine electrical systems. The emphasis on safety, environmental responsibility, and operational reliability will drive continued innovation in marine cable technology, ensuring that the critical electrical infrastructure of maritime vessels continues to evolve to meet the challenges of an ever-changing marine environment.
