LIYCY vs LIYCY-JZ Cables: Choosing the Right Shielded Control Cable for Singapore’s Maritime and Port Applications

Introduction to Shielded Control Cables in Maritime Environments

In the bustling maritime hub of Singapore, where massive container ships dock alongside sophisticated port terminals, the reliability of electrical control systems forms the backbone of operational efficiency. At the heart of these systems lies an often-overlooked but critically important component: the control cable. These specialized cables serve as the nervous system of modern maritime infrastructure, transmitting vital data and signals that coordinate everything from crane operations to cargo handling systems.

The maritime environment presents unique challenges that would quickly overwhelm ordinary electrical cables. Singapore's tropical climate subjects cables to constant humidity levels often exceeding 80%, while the saline atmosphere from sea spray creates corrosive conditions that can degrade electrical connections over time. Port terminals generate significant electromagnetic interference (EMI) from heavy machinery, radio communications, and high-power electrical systems operating in close proximity. Additionally, cables must withstand exposure to industrial chemicals, oils, and greases while maintaining signal integrity despite constant mechanical stress from vessel movement and cargo operations.

Within this demanding environment, LIYCY and LIYCY-JZ cables have emerged as preferred solutions for EMC-sensitive applications. These shielded control cables represent decades of engineering evolution, specifically designed to maintain signal integrity in electromagnetically noisy industrial environments. Understanding their specific characteristics and applications becomes crucial for engineers and technicians responsible for maintaining the complex electrical systems that keep Singapore's maritime operations running smoothly.

Common Features: The Engineering Foundation of LIYCY and LIYCY-JZ

To appreciate the differences between these cable types, we must first understand their shared engineering foundation. Both LIYCY and LIYCY-JZ cables are built upon a robust construction philosophy that prioritizes flexibility, signal integrity, and electromagnetic compatibility.

The conductor design represents a critical starting point. Both cable types feature fine-stranded bare copper conductors manufactured to IEC-60228, Class 5 specifications. This classification indicates extremely fine stranding, with individual wire strands typically measuring 0.1mm or less in diameter. The engineering rationale behind this design choice becomes clear when considering the dynamic nature of maritime installations. Unlike fixed building installations, shipboard systems and port equipment experience constant movement, vibration, and flexing. Fine-stranded conductors distribute mechanical stress across numerous individual strands, dramatically reducing the likelihood of conductor fatigue and breakage compared to solid or coarsely stranded alternatives.

The insulation system employs PVC (Polyvinyl Chloride) as the primary dielectric material surrounding each conductor. PVC offers several advantages in maritime applications, including excellent resistance to moisture, oils, and many industrial chemicals commonly encountered in port environments. The insulation thickness is carefully calculated to provide reliable electrical isolation while maintaining flexibility. The dielectric strength of PVC insulation ensures that adjacent conductors remain electrically isolated even under the mechanical stress of installation and operation.

Core laying represents another sophisticated aspect of cable design. Individual insulated conductors are twisted together in carefully engineered layers, with the twist length optimized to minimize crosstalk between adjacent cores. This twisted configuration helps maintain signal integrity by ensuring that electromagnetic coupling between conductors remains predictable and manageable. The twist geometry also contributes to the cable's overall flexibility and helps prevent preferential bending that could lead to mechanical stress concentration.

The electromagnetic shielding system forms perhaps the most critical component of both cable types. A tinned copper wire braided screen surrounds the core assembly, providing approximately 85% coverage of the underlying conductors. This coverage percentage represents an engineering compromise between electromagnetic effectiveness and mechanical flexibility. Higher coverage percentages, while providing superior EMC performance, would significantly reduce cable flexibility and increase manufacturing costs. The tinned copper construction offers superior corrosion resistance compared to bare copper, particularly important in maritime environments where salt spray and humidity could otherwise degrade shielding effectiveness over time.

The outer sheath, typically manufactured from PVC in a distinctive grey color (RAL7001), serves multiple protective functions. Beyond providing mechanical protection against abrasion and impact, the outer sheath contributes to the cable's flame retardancy characteristics in accordance with IEC-60332-1 standards. This fire performance becomes particularly important in confined spaces common aboard vessels and in port facilities where fire suppression may be challenging.

Electrical specifications shared between both cable types reflect their industrial control heritage. The working voltage rating of Uo/U 300/500V accommodates typical control and instrumentation circuits while providing adequate safety margins. The test voltage of 1000VAC for one minute demonstrates insulation integrity under stress conditions. Insulation resistance specifications of at least 20 MΩ per kilometer ensure minimal signal leakage even in humid conditions. Temperature ratings span from -5°C to +70°C during cable movement and -30°C to +70°C for fixed installations, accommodating the thermal variations common in maritime operations.

The Critical Distinction: Core Identification and Grounding Philosophy

While LIYCY and LIYCY-JZ cables share fundamental construction principles, their core identification and grounding approaches represent fundamentally different design philosophies that significantly impact their suitability for specific maritime applications.

LIYCY cables traditionally employ DIN 47100 color coding for core identification. This standardized system uses a combination of colors and numerical markings to distinguish individual conductors within multi-core cables. The color coding system provides visual identification that technicians can quickly recognize during installation and maintenance procedures. However, the standard DIN 47100 system does not inherently guarantee the presence of a dedicated protective conductor (ground wire) within the cable assembly.

This characteristic makes LIYCY cables particularly suitable for applications where grounding is managed through external means. In many control panel applications, for instance, equipment grounding may be accomplished through the mounting structure or separate grounding conductors routed alongside the control cables. The absence of a dedicated ground conductor within the cable itself can actually be advantageous in systems where grounding philosophy requires isolation between signal grounds and protective grounds.

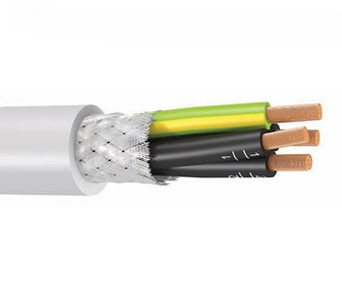

LIYCY-JZ cables incorporate a fundamentally different approach to core identification and grounding. The "-JZ" suffix specifically denotes the presence of a green/yellow protective conductor integrated within the cable assembly. This protective conductor serves dual purposes: it provides equipment grounding for safety purposes and offers a dedicated path for shield termination to enhance electromagnetic compatibility performance.

The core identification system in LIYCY-JZ cables typically employs black insulation with white numerical printing for signal conductors, while the protective conductor maintains the internationally recognized green/yellow color coding. This numerical identification system offers several advantages in complex maritime installations. Technicians can quickly identify conductor functions without relying on color recognition, which can be challenging under poor lighting conditions common in engine rooms and cargo holds. The numerical system also reduces the likelihood of wiring errors in systems with numerous parallel cable runs.

The integrated protective conductor in LIYCY-JZ cables addresses several critical requirements in maritime electrical systems. International safety standards, including those governing shipboard electrical installations, often mandate protective grounding for equipment safety. The integrated ground wire ensures that this requirement is met inherently through the cable design rather than relying on external grounding arrangements that might be compromised during installation or maintenance.

Electromagnetic Compatibility Considerations in Maritime Environments

The electromagnetic environment within modern port terminals and aboard vessels presents unique challenges that require careful consideration of cable shielding and grounding strategies. Large motors driving crane systems, variable frequency drives controlling cargo handling equipment, and high-power radio communication systems all contribute to a complex electromagnetic spectrum that can interfere with sensitive control and monitoring circuits.

The braided shield present in both LIYCY and LIYCY-JZ cables provides the primary defense against electromagnetic interference. However, the effectiveness of this shielding depends critically on proper termination practices. The shield must be connected to a low-impedance ground reference at both ends of the cable run to create an effective Faraday cage around the signal conductors.

LIYCY-JZ cables offer a significant advantage in this regard through their integrated protective conductor. This dedicated ground wire provides a convenient and reliable path for shield termination, ensuring that the electromagnetic shielding remains effective throughout the cable's service life. The continuous ground path also helps prevent the development of ground loops that could otherwise introduce noise into sensitive control circuits.

The shield termination approach becomes particularly important in maritime applications where cable runs may span considerable distances between equipment locations. Long cable runs increase the likelihood of electromagnetic pickup and make proper grounding even more critical for maintaining signal integrity. The integrated ground wire in LIYCY-JZ cables ensures that grounding remains consistent regardless of cable length or routing complexity.

Installation and Maintenance Advantages in Maritime Settings

The practical aspects of cable installation and maintenance in maritime environments strongly favor the design characteristics of LIYCY-JZ cables. Port terminals and shipboard installations often involve complex routing through confined spaces, cable trays, and conduit systems where access for installation and maintenance may be limited.

The numerical identification system employed in LIYCY-JZ cables significantly simplifies installation procedures. Technicians can quickly identify conductor functions without relying on color recognition, which becomes particularly valuable when working in the poor lighting conditions common in engine rooms, cargo holds, and below-deck spaces. The numerical system also reduces the likelihood of wiring errors that could compromise system operation or safety.

The integrated protective conductor eliminates the need for separate grounding arrangements during installation. This simplification reduces installation time and labor costs while ensuring that grounding requirements are met consistently across all cable terminations. The continuous ground path also facilitates easier troubleshooting of electromagnetic interference issues, as technicians can verify shield continuity and grounding effectiveness using standard electrical testing equipment.

Maintenance procedures also benefit from the LIYCY-JZ design approach. The integrated protective conductor provides a convenient test point for verifying system grounding integrity during routine maintenance inspections. This capability becomes particularly valuable in maritime environments where corrosion and mechanical stress may compromise grounding connections over time.

Regulatory Compliance and Safety Considerations

Maritime electrical installations must comply with numerous international and national safety standards that govern equipment grounding, electromagnetic compatibility, and fire safety. These regulatory requirements often influence cable selection decisions and may mandate specific design characteristics.

The integrated protective conductor in LIYCY-JZ cables directly addresses many regulatory requirements for equipment grounding. International standards such as IEC 60364 and national electrical codes typically require protective grounding for equipment safety, particularly in environments where personnel may be exposed to electrical hazards. The integrated ground wire ensures compliance with these requirements while simplifying installation and maintenance procedures.

Fire safety regulations in maritime environments are particularly stringent due to the confined spaces and limited evacuation options aboard vessels and in port facilities. Both LIYCY and LIYCY-JZ cables meet flame retardancy requirements in accordance with IEC-60332-1 standards, but the integrated protective conductor in LIYCY-JZ cables may provide additional safety benefits by ensuring reliable equipment grounding that can facilitate proper operation of protective devices during fault conditions.

Electromagnetic compatibility regulations, including those governing industrial equipment and marine electronics, often require specific approaches to cable shielding and grounding. The integrated protective conductor in LIYCY-JZ cables supports compliance with these requirements by providing a dedicated path for shield termination that maintains electromagnetic shielding effectiveness throughout the cable's service life.

Cost-Benefit Analysis for Maritime Applications

While LIYCY-JZ cables may command a slight premium over standard LIYCY cables due to their additional protective conductor and specialized core identification system, the total cost of ownership often favors the LIYCY-JZ design in maritime applications.

Installation cost savings represent a significant factor in this analysis. The integrated protective conductor eliminates the need for separate grounding arrangements, reducing both material costs and installation labor. The numerical identification system also reduces installation time and the likelihood of wiring errors that could require costly troubleshooting and rework.

Maintenance cost advantages continue throughout the cable's service life. The integrated protective conductor facilitates easier verification of grounding integrity during routine maintenance procedures, potentially reducing downtime and maintenance labor costs. The reliable grounding provided by the integrated conductor may also extend equipment life by ensuring proper operation of protective devices and reducing the likelihood of electrical faults.

Risk mitigation represents another important cost consideration. The enhanced safety and reliability provided by proper grounding can help prevent costly equipment failures, production interruptions, and safety incidents. In maritime environments where downtime can result in significant operational and financial consequences, the risk mitigation benefits of LIYCY-JZ cables often justify their additional cost.

Conclusion and Strategic Selection Guidelines

The choice between LIYCY and LIYCY-JZ cables for maritime applications hinges primarily on grounding requirements, installation complexity, and regulatory compliance needs. While both cable types provide excellent electromagnetic shielding and mechanical durability suitable for demanding maritime environments, LIYCY-JZ cables offer significant advantages in applications requiring integrated protective grounding.

For new installations in Singapore's port terminals and marine facilities, LIYCY-JZ cables represent the optimal choice for most control and instrumentation applications. The integrated protective conductor ensures compliance with safety regulations while simplifying installation and maintenance procedures. The numerical core identification system provides clear advantages in complex installations where multiple cable runs must be managed effectively.

The investment in LIYCY-JZ cables pays dividends through improved safety, simplified installation, reduced maintenance costs, and enhanced regulatory compliance. In the demanding environment of maritime operations, where system reliability directly impacts operational efficiency and safety, the additional capabilities of LIYCY-JZ cables justify their selection for critical control and communication systems.

As Singapore continues to enhance its position as a global maritime hub, the selection of appropriate electrical infrastructure components becomes increasingly important. LIYCY-JZ cables provide the reliability, safety, and performance characteristics necessary to support the sophisticated control systems that keep modern port operations running efficiently and safely in one of the world's most challenging maritime environments.
