Introduction: Why Cable Selection Matters in Dynamic Installations

The marine and industrial sectors present some of the most challenging environments for electrical infrastructure, where cable failures can result in costly downtime, safety hazards, and operational disruptions. In these demanding applications, particularly those involving continuous motion and exposure to harsh environmental conditions, the selection of appropriate cabling solutions becomes a critical engineering decision that directly impacts system reliability, maintenance costs, and operational efficiency.

Traditional cable designs often fall short when subjected to the unique combination of mechanical stress, environmental exposure, and electrical demands found in marine installations. The constant flexing motion in crane operations, the corrosive salt-laden atmosphere of port environments, and the need for reliable power and control signal transmission create a complex set of requirements that demand specialized engineering solutions.

The ÜNFLEX PUR – C – HF cable represents a targeted approach to addressing these challenges, specifically engineered for mobile energy and control systems in marine and industrial applications. This specialized cable design incorporates advanced materials science and construction techniques to deliver reliable performance in dynamic installations where conventional cables would quickly fail.

Understanding the technical specifications, construction methodology, and performance characteristics of such specialized cables is essential for engineers and procurement professionals who must make informed decisions about critical infrastructure investments. The following comprehensive analysis examines whether the ÜNFLEX PUR – C – HF cable truly represents the optimal solution for high-mobility marine and industrial applications.

Application Scenarios: Where ÜNFLEX PUR – C – HF Excels

Festoon Systems and Energy Transfer Applications

The ÜNFLEX PUR – C – HF cable demonstrates exceptional performance in festoon systems, which are commonly employed in port cranes, shipyard gantries, and container handling equipment. These systems require cables that can withstand continuous lateral movement while maintaining electrical integrity and mechanical durability. The cable's design specifically addresses the unique stresses encountered in festoon applications, where cables must traverse extended distances while supporting their own weight and maintaining consistent electrical performance.

In drag chain applications, the cable's construction provides the necessary flexibility and durability to handle the repetitive bending cycles characteristic of automated material handling systems. The concentric layer design and specialized lay-up configuration ensure that the cable maintains its structural integrity even under the demanding conditions of high-speed drag chain operations.

Marine and Port Equipment Applications

Port cranes and hoists represent one of the most demanding applications for dynamic cables, combining high mechanical stress with exposure to corrosive marine environments. The ÜNFLEX PUR – C – HF cable's polyurethane sheathing provides exceptional resistance to saltwater vapor and the hydrolysis that commonly affects cables in marine installations. This resistance is particularly critical in port environments where cables are exposed to salt spray, humidity, and temperature variations that can rapidly degrade conventional cable materials.

Shipboard automation systems present another challenging application scenario where the cable's performance characteristics prove advantageous. The confined spaces, constant vibration, and exposure to marine atmospheres found aboard vessels require cables that can maintain reliable operation while occupying minimal space and providing long service life. The cable's halogen-free construction also addresses important safety considerations in marine applications where fire safety is paramount.

Container handling equipment, including reach stackers, rubber-tired gantry cranes, and automated guided vehicles, benefit from the cable's resistance to oils, alkalines, and solvents commonly encountered in port operations. The frequent contact with hydraulic fluids, cleaning solvents, and other chemicals found in industrial environments makes chemical resistance a critical performance parameter.

Industrial Robotics and Automation

Dynamic cable tracks in industrial robotics applications place unique demands on cable design, requiring exceptional flexibility combined with resistance to mechanical wear. The ÜNFLEX PUR – C – HF cable's construction accommodates the torsional stresses and rapid acceleration and deceleration cycles typical of robotic systems while maintaining signal integrity for precise control applications.

The cable's electromagnetic compatibility characteristics, provided by the tinned copper wire braiding, ensure reliable operation in environments with high electromagnetic interference. This is particularly important in industrial settings where multiple motors, drives, and control systems operate in close proximity, potentially creating interference that could disrupt critical control signals.

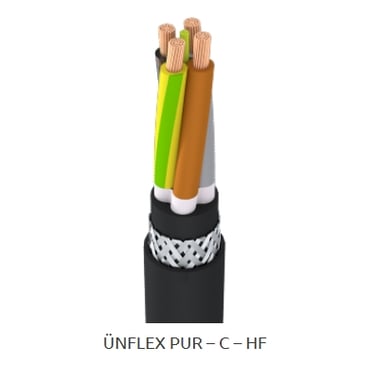

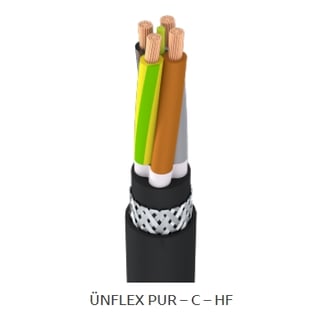

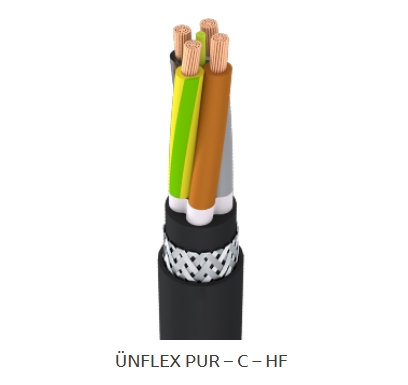

Technical Construction and Electrical Parameters

Conductor Design and Electrical Performance

The ÜNFLEX PUR – C – HF cable employs stranded Class 5 plain annealed copper conductors manufactured to IEC 60228 specifications. This conductor design provides the optimal balance between electrical conductivity and mechanical flexibility required for dynamic applications. The Class 5 stranding configuration offers superior flexibility compared to lower class conductors while maintaining excellent electrical characteristics and resistance to fatigue failure under repeated flexing cycles.

The conductor's plain annealed copper construction ensures optimal electrical conductivity and resistance to work hardening, which can occur in cables subjected to continuous flexing. This characteristic is particularly important in applications where cables experience millions of flex cycles over their service life, as work hardening can lead to conductor failure and system downtime.

Insulation System Engineering

The cable utilizes a halogen-free polyester-based compound for conductor insulation, providing excellent dielectric properties while maintaining the flexibility required for dynamic applications. This insulation system offers superior resistance to thermal degradation and maintains its electrical properties across the specified temperature range, ensuring consistent performance in varying environmental conditions.

The halogen-free formulation addresses important environmental and safety considerations, particularly in marine applications where fire safety is critical. The absence of halogens eliminates the production of toxic gases in the event of fire, making the cable suitable for use in enclosed spaces and areas where personnel evacuation might be limited.

Core Identification and Cable Assembly

The cable's core identification system follows established industry standards, with cables containing up to five cores utilizing color-coded identification per DIN VDE 0293-308, while cables with six or more cores employ numerical identification. This standardized approach ensures compatibility with existing installation practices and reduces the potential for wiring errors during installation and maintenance.

The concentric layer construction with a central textile strength member provides the mechanical support necessary for dynamic applications while maintaining the cable's flexibility. The textile strength member distributes tensile loads evenly across the cable cross-section, preventing damage to the electrical conductors and maintaining cable integrity under mechanical stress.

Electromagnetic Protection and Screening

The cable incorporates a tinned copper wire braid with a minimum coverage of 80% to provide electromagnetic interference (EMI) protection. This screening system is essential in industrial and marine environments where electromagnetic compatibility is critical for reliable operation of control systems and sensitive electronic equipment.

The tinned copper construction provides superior corrosion resistance compared to bare copper, ensuring long-term effectiveness of the electromagnetic shielding even in corrosive marine environments. The high coverage percentage ensures effective protection against both low-frequency magnetic interference and high-frequency electromagnetic interference.

Sheathing and Environmental Protection

The cable features a dual-layer polyurethane sheathing system designed to provide comprehensive protection against environmental hazards. The inner and outer polyurethane layers are formulated to resist hydrolysis, oils, alkalines, and solvents commonly encountered in marine and industrial environments.

The halogen-free, flame-retardant formulation meets IEC 60332-1 requirements for flame retardancy while maintaining the flexibility and durability required for dynamic applications. The polyurethane material provides excellent abrasion resistance and maintains its properties across the specified temperature range.

Electrical and Temperature Specifications

The cable is rated for operation at 0.6/1 kV AC, with DC applications supported up to 1.8 kV maximum. The test voltage rating of 3.5 kV provides adequate safety margin for the specified operating voltages and ensures reliable long-term performance. These voltage ratings make the cable suitable for both power distribution and control applications in marine and industrial systems.

Temperature performance specifications reflect the cable's suitability for challenging environmental conditions. In fixed installations, the cable operates reliably from -50°C to +80°C, while mobile applications are supported from -40°C to +80°C during normal service. The cable can withstand short-circuit temperatures up to +90°C for the cable overall and +250°C for the conductor specifically, providing protection against overload conditions.

Mechanical Performance Parameters

The cable's mechanical specifications directly address the demands of dynamic applications. The minimum bending radius of 6xD for fixed installations and 8xD for mobile applications ensures that the cable can be installed and operated within practical space constraints while maintaining mechanical integrity.

The maximum tensile load rating of 15 N/mm² provides guidance for installation tension and ensures that the cable can support its own weight in vertical installations while maintaining electrical and mechanical performance. The torsional resistance specification of ±25°/m accommodates the twisting forces encountered in rotating applications and cable reels.

Travel speed specifications demonstrate the cable's suitability for high-speed dynamic applications, with festoon systems supported up to 200 m/min and horizontal reeling applications up to 60 m/min. These specifications ensure that the cable can meet the performance demands of modern high-speed material handling equipment while maintaining reliability and service life.

Standards Compliance and Quality Assurance

International Standards Adherence

The ÜNFLEX PUR – C – HF cable's compliance with multiple international standards provides assurance of quality and compatibility with global installation practices. Adherence to IEC 60502 ensures compatibility with international power cable standards, while VDE 0250-1 compliance addresses European requirements for flexible cables.

The flame retardancy compliance with IEC 60332-1 ensures that the cable meets international fire safety requirements, particularly important in marine applications where fire safety is paramount. Oil resistance testing per HD/EN/IEC 60811-2-1 and DIN VDE 0473-811-2-1 standards provides verification of the cable's ability to withstand exposure to hydraulic fluids and lubricants commonly found in industrial environments.

Quality Control and Testing Protocols

The comprehensive testing protocols ensure that each cable meets the specified performance requirements before delivery. Electrical testing includes insulation resistance, dielectric strength, and conductor resistance measurements to verify electrical performance. Mechanical testing validates the cable's ability to withstand the specified tensile loads, bending radii, and torsional stresses.

Environmental testing confirms the cable's resistance to oils, chemicals, and temperature extremes, ensuring reliable performance in demanding applications. The testing protocols provide traceability and quality assurance that are essential for critical applications where cable failure could result in significant operational disruption or safety hazards.

Performance Analysis in Marine Environments

Corrosion Resistance and Longevity

The marine environment presents unique challenges for cable materials, with salt spray, humidity, and temperature variations creating conditions that can rapidly degrade conventional materials. The ÜNFLEX PUR – C – HF cable's polyurethane sheathing provides exceptional resistance to these environmental factors, maintaining its protective properties even under continuous exposure to marine atmospheres.

The resistance to hydrolysis is particularly important in marine applications where cables may be exposed to moisture for extended periods. Unlike conventional materials that may degrade when exposed to water, the polyurethane formulation maintains its mechanical and protective properties, ensuring long-term reliability in challenging environments.

Chemical Compatibility and Resistance

Port and marine environments commonly involve exposure to various chemicals, including hydraulic fluids, cleaning solvents, and fuel products. The cable's formulation provides resistance to oils, alkalines, and solvents, ensuring that accidental contact with these substances does not compromise cable integrity or performance.

This chemical resistance is particularly valuable in container handling equipment where hydraulic systems are prevalent and chemical spills may occur during normal operations. The cable's ability to maintain its properties when exposed to these substances reduces maintenance requirements and extends service life.

Temperature Performance in Marine Applications

Marine environments can subject cables to significant temperature variations, from the extreme cold of refrigerated container areas to the high temperatures found in engine rooms and equipment enclosures. The cable's temperature rating provides reliable operation across these conditions, ensuring consistent performance regardless of environmental variations.

The thermal stability of the polyurethane sheathing ensures that the cable maintains its flexibility and protective properties across the specified temperature range, preventing the brittleness or softening that can affect other materials under temperature stress.

crane near body of water during daytime
crane near body of water during daytime

FAQ: Addressing Common Marine Application Concerns

Environmental Durability and Seaport Conditions

Question: Can this cable withstand the harsh conditions of a seaport environment, including salt spray, humidity, and chemical exposure?

Answer: The ÜNFLEX PUR – C – HF cable is specifically engineered to excel in seaport environments through its advanced polyurethane sheath formulation. This sheathing system provides exceptional resistance to salt spray and hydrolysis, two of the most damaging factors in marine environments. The cable's resistance to oils, alkalines, and solvents ensures reliable performance even when exposed to the various chemicals commonly found in port operations, including hydraulic fluids, cleaning agents, and fuel products. The material's resistance to hydrolysis prevents the degradation that commonly affects other cable types when exposed to the high humidity and salt-laden atmosphere characteristic of marine terminals and shipyards.

Electromagnetic Compatibility and Signal Integrity

Question: How does the cable prevent electrical interference in dense cable environments typical of modern automated port equipment?

Answer: The cable incorporates a comprehensive electromagnetic interference (EMI) protection system featuring tinned copper wire braiding with a minimum coverage of 80%. This high-coverage screening effectively shields both power and control circuits from electromagnetic interference, which is critical in modern port environments where multiple motors, variable frequency drives, and control systems operate in close proximity. The tinned copper construction provides superior corrosion resistance compared to bare copper, ensuring that the electromagnetic shielding remains effective throughout the cable's service life, even in the corrosive marine atmosphere. This robust EMC design protects signal integrity in both analog and digital control systems, preventing the operational disruptions that can occur when interference affects critical control signals.

Mechanical Stress and Dynamic Performance

Question: What happens when the cable is exposed to high mechanical stress, continuous flexing, and rapid movement typical of crane and material handling operations?

Answer: The ÜNFLEX PUR – C – HF cable is specifically designed to handle demanding mechanical conditions through several key design features. The cable's torsional resistance rating of ±25°/m accommodates the twisting forces encountered in rotating applications and cable reels, while the concentric layer construction with a central textile strength member distributes mechanical loads evenly across the cable cross-section. The Class 5 stranded copper conductors provide exceptional flexibility and resistance to fatigue failure under repeated flexing cycles. The cable supports travel speeds up to 200 m/min in festoon systems and up to 60 m/min in horizontal reeling applications, demonstrating its capability to handle the high-speed operations common in modern material handling equipment. The specialized lay-up configuration and polyurethane sheathing work together to maintain cable integrity even under the demanding conditions of continuous operation.

Standards Compliance and Safety Certification

Question: Is this cable compliant with international safety and quality standards required for marine and industrial installations?

Answer: The ÜNFLEX PUR – C – HF cable meets comprehensive international standards that ensure safety, quality, and compatibility with global installation practices. The cable complies with IEC 60502 for power cables and VDE 0250-1 for flexible cables, providing assurance of electrical safety and performance. Flame retardancy compliance with IEC 60332-1 addresses critical fire safety requirements, particularly important in marine applications where fire hazards must be minimized. Oil resistance testing per HD/EN/IEC 60811-2-1 and DIN VDE 0473-811-2-1 standards verifies the cable's ability to maintain performance when exposed to hydraulic fluids and other chemicals. The halogen-free construction eliminates the production of toxic gases in the event of fire, making the cable suitable for use in enclosed spaces and areas where personnel evacuation might be limited. This comprehensive standards compliance ensures that the cable meets the regulatory requirements for marine and industrial installations while providing the performance characteristics necessary for reliable operation.

Cost-Benefit Analysis and Long-Term Value

Initial Investment Considerations

While specialized cables like the ÜNFLEX PUR – C – HF may represent a higher initial investment compared to standard industrial cables, the cost analysis must consider the total cost of ownership over the cable's service life. The enhanced durability and environmental resistance translate directly into reduced maintenance costs, fewer replacement cycles, and decreased system downtime.

In critical applications such as port cranes and material handling equipment, cable failures can result in significant operational disruptions and associated costs. The reliability provided by properly specified cables can prevent these costly failures and their associated impact on productivity and revenue.

Maintenance and Replacement Cycle Benefits

The cable's construction and material selection significantly extend service life compared to conventional alternatives. The resistance to environmental degradation, mechanical wear, and chemical exposure reduces the frequency of cable replacement and associated maintenance costs. This extended service life is particularly valuable in applications where cable replacement requires significant downtime or specialized equipment for access.

The reduced maintenance requirements also translate into lower labor costs and decreased inventory requirements for spare cables. The predictable performance characteristics allow for planned maintenance schedules rather than reactive responses to cable failures.

Operational Reliability and Productivity Impact

The reliability provided by the ÜNFLEX PUR – C – HF cable directly impacts operational productivity and equipment utilization. By eliminating unexpected cable failures, the cable contributes to improved equipment availability and reduced unplanned downtime. This reliability is particularly valuable in port operations where equipment downtime can impact vessel schedules and overall terminal productivity.

The cable's electromagnetic compatibility characteristics also contribute to operational reliability by preventing interference-related control system disruptions. This stable operation ensures consistent equipment performance and reduces the troubleshooting time required to identify and resolve interference issues.

Installation Considerations and Best Practices

Proper Installation Techniques

Successful implementation of the ÜNFLEX PUR – C – HF cable requires attention to proper installation techniques that maximize the cable's performance characteristics. The specified minimum bending radii must be observed during installation to prevent damage to the cable's internal structure and maintain its mechanical integrity.

Support systems for dynamic applications must be designed to accommodate the cable's movement while providing adequate support to prevent excessive tensile loading. The cable's tensile load rating provides guidance for support spacing and tension limits during installation.

System Integration and Compatibility

The cable's standard core identification system and electrical characteristics ensure compatibility with existing control systems and installation practices. The voltage and current ratings accommodate both power distribution and control applications, allowing for system integration without requiring specialized interface equipment.

The electromagnetic compatibility characteristics ensure that the cable can be installed alongside other cables and equipment without creating interference issues. The high-coverage screening provides effective protection while maintaining compatibility with standard grounding and shielding practices.

Environmental Considerations and Routing

Cable routing in marine and industrial environments requires consideration of environmental factors such as temperature variations, chemical exposure, and mechanical hazards. The cable's environmental resistance allows for installation in challenging locations, but proper routing design can further extend service life and improve reliability.

Protection from sharp edges, abrasive surfaces, and extreme temperature sources should be incorporated into the installation design. While the cable's construction provides excellent environmental resistance, proper installation practices can further enhance performance and longevity.

Conclusion: High Mobility, High Reliability

The comprehensive analysis of the ÜNFLEX PUR – C – HF cable demonstrates that it represents a well-engineered solution for the demanding requirements of high-mobility marine and industrial applications. The cable's construction methodology, material selection, and performance characteristics directly address the challenges encountered in these demanding environments.

The integration of Class 5 stranded copper conductors, halogen-free polyester insulation, comprehensive electromagnetic shielding, and dual-layer polyurethane sheathing creates a cable system that provides reliable performance across the wide range of conditions encountered in marine and industrial applications. The standards compliance and comprehensive testing protocols provide assurance of quality and reliability that are essential for critical applications.

The cable's resistance to environmental factors including salt spray, hydrolysis, oils, and chemicals ensures reliable operation in the harsh conditions typical of port and marine environments. The mechanical performance characteristics, including excellent flexibility, torsional resistance, and high-speed capability, make it well-suited for the dynamic applications found in modern material handling and automation systems.

From a cost-benefit perspective, the ÜNFLEX PUR – C – HF cable represents a sound investment for applications where reliability and performance are critical. The extended service life, reduced maintenance requirements, and improved operational reliability provide tangible benefits that justify the initial investment in quality cable infrastructure.

For engineers and procurement professionals evaluating cable solutions for high-mobility marine and industrial applications, the ÜNFLEX PUR – C – HF cable offers a compelling combination of technical performance, reliability, and long-term value. Its specialized design and proven performance characteristics make it an ideal choice for demanding applications where conventional cables would quickly fail, providing the foundation for reliable and efficient operation of critical systems.

The cable's ability to maintain consistent performance under the demanding conditions of continuous motion, environmental exposure, and electrical stress makes it a reliable long-term investment for critical energy and control systems in marine, port, and industrial automation applications. This combination of durability, flexibility, and electrical safety positions the ÜNFLEX PUR – C – HF cable as a superior choice for engineers seeking optimal performance in challenging dynamic installations.
