Is the RigFlex-125 Type P Power Cable Single Conductor 2kV Armoured and Sheathed the Right Choice for Offshore and Shipboard Power Systems?
Discover the technical specifications, applications, and advantages of RigFlex-125 Type P Power Cable for marine and offshore environments. Learn about its 2kV rating, armored construction, and compliance with IEEE 1580 standards for shipboard and oil rig power systems.
BLOGS
6/11/202512 min read
Introduction
The marine and offshore industries face unprecedented challenges in maintaining reliable electrical power systems under some of the most demanding environmental conditions on Earth. As offshore exploration ventures into deeper waters and shipboard systems become increasingly sophisticated, the need for robust, high-performance power cables has never been more critical. The harsh realities of saltwater exposure, extreme temperatures, mechanical stress, and chemical contamination create a perfect storm of challenges that can quickly defeat inferior cabling solutions.
The RigFlex-125 Type P Power Cable represents a specialized engineering solution designed specifically to address these unique challenges. This single conductor, 2kV armoured and sheathed cable has been developed through decades of marine industry experience and rigorous testing to meet the exacting demands of offshore oil rigs, floating platforms, and shipboard power distribution systems. Understanding whether this cable is the right choice for your specific application requires a comprehensive examination of its technical specifications, performance characteristics, and real-world capabilities in the unforgiving marine environment.
This article provides a detailed technical analysis of the RigFlex-125 Type P Power Cable, examining its construction, performance parameters, and suitability for various offshore and shipboard applications. By exploring the cable's design philosophy, standards compliance, and operational advantages, engineers and procurement professionals can make informed decisions about incorporating this technology into their power distribution systems.
Critical Application Scenarios in Marine Environments
Shipboard Power Systems
Modern vessels require increasingly sophisticated electrical systems to support navigation, propulsion, life safety, and operational equipment. The RigFlex-125 Type P Power Cable serves as a critical component in these systems, providing reliable power distribution throughout the vessel's electrical infrastructure. Unlike terrestrial applications, shipboard installations must contend with constant vibration, rolling motion, and the corrosive effects of saltwater exposure.
The cable's design specifically addresses the unique challenges of shipboard installations, where space constraints often require tight bending radii and where cables may be subject to frequent movement and flexing. The robust construction ensures consistent performance even under the mechanical stresses associated with a vessel's operational profile, including heavy weather conditions and the dynamic loading that occurs during cargo operations or drilling activities.
Offshore Oil Rigs and Floating Platforms
Fixed and floating offshore platforms represent some of the most challenging environments for electrical equipment. These installations must operate reliably in conditions that combine saltwater exposure, hydrocarbon contamination, extreme weather, and the mechanical stresses associated with wave action and platform movement. The RigFlex-125 Type P Power Cable has been engineered specifically to thrive in these demanding conditions.
On drilling platforms, the cable must withstand exposure to drilling fluids, hydraulic oils, and various petrochemical substances while maintaining electrical integrity. The armored construction provides essential mechanical protection against the physical hazards common in these industrial environments, while the specialized sheathing materials resist the chemical attack that would quickly degrade conventional cables.
Environmental Resilience Requirements
The marine environment presents a unique combination of challenges that few other applications can match. Continuous exposure to saltwater creates ongoing corrosion threats, while the combination of UV radiation, temperature extremes, and mechanical stress creates a hostile environment for electrical components. The RigFlex-125 Type P Power Cable's design philosophy centers on providing long-term reliability under these extreme conditions.
The cable must maintain its electrical and mechanical properties despite exposure to oil spills, cleaning solvents, hydraulic fluids, and the various chemicals used in marine operations. Additionally, the cable's construction must accommodate the thermal cycling that occurs as equipment operates and environmental conditions change, ensuring that repeated expansion and contraction do not compromise the cable's integrity.
Standards and Compliance Framework
Primary Standards Compliance
The RigFlex-125 Type P Power Cable has been designed and manufactured to meet the stringent requirements of multiple international standards, ensuring compatibility with global marine and offshore installations. The cable's compliance with IEEE 1580 provides the foundation for its electrical performance characteristics, establishing the parameters for conductor construction, insulation properties, and overall cable design.
IEEE 1580 specifically addresses marine shipboard cables and provides comprehensive guidance on construction requirements, testing procedures, and performance criteria. This standard ensures that the cable can withstand the unique electrical and environmental stresses encountered in marine applications, providing engineers with confidence in the cable's long-term reliability.
The cable's compliance with UL 1309 further reinforces its suitability for marine applications, particularly in areas where US Coast Guard approval is required. This standard addresses the specific safety requirements for marine electrical equipment, including flame resistance, smoke generation, and toxicity considerations that are critical in the confined spaces typical of shipboard installations.
International Recognition and Certification
CSA C22.2 No.245 compliance ensures that the cable meets Canadian electrical safety standards, expanding its applicability to vessels and installations operating under Canadian jurisdiction. This international recognition is particularly important for offshore installations that may operate in multiple jurisdictions or for vessels that transit international waters.
IEEE 45 compliance provides additional assurance of the cable's suitability for marine applications, as this standard specifically addresses the electrical installations on ships. The standard's requirements for conductor sizing, insulation coordination, and installation practices ensure that the cable will perform reliably within the broader context of marine electrical systems.
Fire Safety and Environmental Testing
The cable's compliance with IEEE 1202 and IEC 60332-3 flame resistance requirements ensures that it will not contribute to fire propagation in the event of an electrical fault or external fire source. This characteristic is particularly critical in marine environments where evacuation options may be limited and where fire suppression systems must rely on the electrical infrastructure remaining intact.
Cold temperature performance testing to -40°C for bending and -35°C for impact resistance ensures that the cable will maintain its flexibility and mechanical integrity even under extreme weather conditions. This capability is essential for installations in northern waters or for seasonal operations where temperature variations can be substantial.

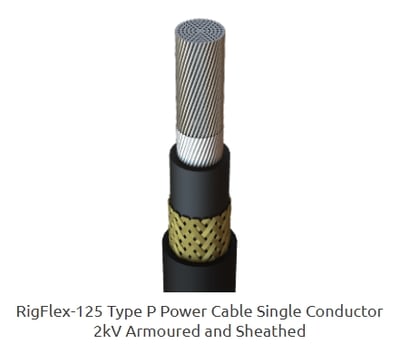

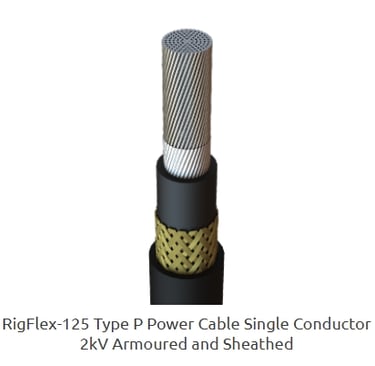

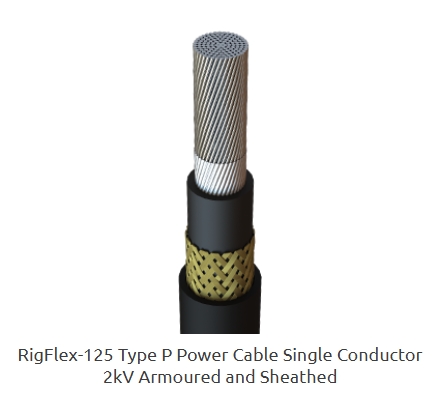

Detailed Cable Construction Analysis
Conductor Design and Materials
The RigFlex-125 Type P Power Cable utilizes a soft annealed, flexible, stranded tinned copper conductor manufactured to meet the exacting requirements of ASTM B33 and IEEE 1580 Table 11. This conductor design represents a careful balance between electrical performance, mechanical flexibility, and corrosion resistance that is essential for marine applications.
The use of tinned copper provides superior corrosion resistance compared to bare copper, which is particularly important in the salt-laden marine environment. The tinning process creates a protective barrier that prevents the formation of copper oxides and other corrosion products that could compromise the conductor's electrical properties over time. The soft annealed treatment ensures maximum flexibility, allowing the cable to withstand the repeated bending and movement that characterizes marine installations.
The stranded construction divides the conductor into multiple small wires, each individually tinned for maximum corrosion protection. This approach provides superior flexibility compared to solid conductors while maintaining excellent electrical characteristics. The stranding pattern and wire sizes are carefully optimized to provide the best combination of flexibility, current-carrying capacity, and resistance to vibration-induced fatigue.
Insulation System Engineering
The cross-linked polyolefin insulation system represents advanced materials science specifically tailored for marine applications. The Type P/Type X110 designation indicates that the insulation has been formulated to provide exceptional dielectric strength while maintaining flexibility and resistance to environmental degradation. Cross-linking creates a three-dimensional polymer network that provides superior thermal stability and mechanical properties compared to conventional thermoplastic insulations.
The insulation system's design ensures consistent electrical performance across the cable's operating temperature range, maintaining low dielectric losses and high insulation resistance even under the thermal cycling conditions common in marine environments. The material's resistance to water absorption is particularly important in marine applications, where moisture ingress can significantly compromise electrical performance.
Optional separator tape may be incorporated between the conductor and insulation to enhance flexibility and provide additional protection against moisture migration. This feature is particularly valuable in applications where the cable may be subject to frequent movement or where long-term moisture resistance is critical.
Armoring System Design
The basket-weave bronze or tinned copper wire armor represents a sophisticated approach to mechanical protection that goes beyond simple strength enhancement. The basket-weave pattern provides excellent flexibility while maintaining superior mechanical protection against crushing, impact, and abrasion. This design allows the cable to bend and flex without compromising the armor's protective capabilities.
The choice between bronze and tinned copper armoring materials allows engineers to optimize the cable's performance for specific applications. Bronze armoring provides excellent corrosion resistance and mechanical strength, making it ideal for installations where the cable may be exposed to harsh chemicals or mechanical abuse. Tinned copper armoring offers superior electrical conductivity for applications where the armor serves as an equipment grounding conductor.
The armoring system also provides electromagnetic interference (EMI) shielding, which is increasingly important as marine electrical systems become more sophisticated and incorporate sensitive electronic equipment. The continuous metallic shield helps prevent electrical noise from interfering with navigation, communication, and control systems.
Sheath Protection Technology
The thermoset chlorinated polyethylene (CPE) sheath represents the cable's final line of defense against environmental degradation. This specialized material has been formulated specifically for marine applications, providing exceptional resistance to oil, saltwater, UV radiation, and the various chemicals encountered in marine environments.
The thermoset nature of the CPE sheath ensures that it will not melt or flow under normal operating temperatures, maintaining its protective properties even under thermal stress. The material's resistance to ozone and UV radiation prevents the cracking and degradation that can affect other sheath materials when exposed to sunlight and atmospheric conditions.
The sheath's resistance to oil and petrochemical fluids is particularly important in offshore drilling applications, where the cable may be exposed to crude oil, drilling fluids, hydraulic oils, and various cleaning solvents. The CPE formulation maintains its integrity even during prolonged exposure to these aggressive substances.
Electrical and Mechanical Performance Characteristics
Voltage Rating and Dielectric Performance
The 2kV voltage rating of the RigFlex-125 Type P Power Cable positions it for medium-voltage applications common in marine power distribution systems. This voltage level provides an excellent balance between power transmission capability and safety considerations, allowing for efficient power distribution while maintaining manageable insulation requirements.
The cable's test voltage capabilities, as defined by IEEE 1580 Table 19, ensure that the insulation system can withstand the electrical stresses associated with system transients, switching operations, and fault conditions. The insulation system's dielectric strength provides substantial margin above the operating voltage, ensuring reliable performance even under abnormal electrical conditions.
The low dielectric constant and loss tangent of the cross-linked polyolefin insulation minimize power losses and heat generation, contributing to the cable's overall efficiency and thermal performance. These characteristics are particularly important in marine applications where heat dissipation may be limited by the installation environment.
Temperature Performance and Thermal Management
The cable's temperature rating of up to 125°C for single conductor applications reflects the advanced thermal properties of its insulation system. This rating, established according to IEEE 1580 and UL 1309 requirements, provides substantial operating margin for most marine applications while allowing for operation under elevated ambient temperatures or increased electrical loading.
The thermal endurance of the insulation system ensures that the cable will maintain its electrical properties throughout its design life, even under continuous operation at elevated temperatures. The cross-linked polyolefin insulation's thermal stability prevents degradation that could compromise the cable's electrical performance or safety characteristics.
Heat dissipation characteristics are particularly important in marine installations where cables may be bundled together in confined spaces or where ambient temperatures may be elevated due to machinery operation. The cable's construction facilitates efficient heat transfer from the conductor to the surrounding environment, preventing damaging temperature buildup.
Mechanical Flexibility and Installation Characteristics
The minimum bending radius of 6 times the cable diameter represents excellent flexibility for an armored power cable. This characteristic is crucial in marine installations where space constraints often require tight bends and where cables must navigate through complex routing paths. The flexible construction allows for easier installation while reducing the risk of damage during cable pulling operations.
The cable's resistance to vibration-induced fatigue is particularly important in marine applications where constant movement and vibration are unavoidable. The stranded conductor design and flexible armor construction work together to distribute mechanical stresses and prevent the concentration of stress that could lead to conductor breakage or armor failure.
Current-carrying capacity, as defined in IEEE 45.8, takes into account the specific installation conditions and thermal environment typical of marine applications. The ratings account for factors such as ambient temperature, cable grouping, and ventilation characteristics that affect the cable's ability to dissipate heat generated by electrical losses.
Key Advantages for Marine Applications
Superior Environmental Resistance
The RigFlex-125 Type P Power Cable's environmental resistance capabilities set it apart from conventional power cables. The combination of armored construction and specialized sheathing materials provides comprehensive protection against the multiple environmental stresses encountered in marine service. This protection extends far beyond simple moisture resistance to include protection against oil contamination, chemical exposure, UV degradation, and the corrosive effects of saltwater.
The cable's resistance to oil and petrochemical fluids is particularly valuable in offshore drilling operations, where exposure to crude oil, drilling muds, and hydraulic fluids is unavoidable. Unlike conventional cables that may experience rapid degradation when exposed to these substances, the RigFlex-125 maintains its electrical and mechanical properties even during prolonged exposure.
UV resistance is crucial for cables that may be exposed to sunlight during installation or operation. The specialized sheath materials prevent the photodegradation that can cause conventional cables to become brittle and crack, leading to moisture ingress and eventual failure.
Mechanical Durability and Reliability
The armored construction provides exceptional mechanical protection against the physical hazards common in marine environments. The basket-weave armor design distributes mechanical loads effectively, preventing damage from crushing, impact, or abrasion that could compromise the cable's electrical integrity.
The cable's flexibility under mechanical stress ensures that it can accommodate the dynamic loading conditions encountered in marine service. Ship movement, platform vibration, and thermal expansion all create mechanical stresses that the cable must accommodate without degradation. The flexible armor and conductor design work together to absorb these stresses without compromising performance.
Long-term reliability under repeated mechanical stress is a key advantage of the RigFlex-125 design. The cable's construction prevents the fatigue failures that can affect rigid cables subjected to repeated bending and movement. This reliability is essential in marine applications where cable replacement can be extremely difficult and expensive.
Flame Resistance and Safety Features
The cable's flame resistance characteristics provide critical safety benefits in marine environments where fire hazards are a constant concern. The insulation and sheathing materials have been formulated to resist ignition and to prevent flame propagation, helping to contain fires and provide time for evacuation or firefighting efforts.
The low smoke generation characteristics of the cable materials reduce the risk of smoke inhalation in the confined spaces typical of marine installations. This feature is particularly important in areas where evacuation routes may be limited and where smoke can quickly obscure visibility and create life-threatening conditions.
Cold temperature performance ensures that the cable maintains its flexibility and mechanical properties even under extreme weather conditions. This capability is essential for installations in northern waters or for seasonal operations where temperature variations can be substantial.
Engineering Selection Considerations
System Compatibility and Integration
When evaluating the RigFlex-125 Type P Power Cable for marine applications, engineers must consider its compatibility with existing electrical systems and installation practices. The cable's electrical characteristics must match the requirements of the power distribution system, including voltage levels, current ratings, and fault current capabilities.
The cable's physical characteristics, including diameter, weight, and bending radius, must be compatible with the installation environment. Space constraints in marine installations often require careful consideration of cable routing and support requirements. The cable's flexibility advantages may be offset by size or weight limitations in some applications.
Termination and connection requirements must also be evaluated, as the cable's armored construction may require specialized termination techniques and hardware. The availability of appropriate termination accessories and the complexity of installation procedures can significantly impact project costs and schedules.
Regulatory Compliance and Classification Society Requirements
Marine installations must comply with various regulatory requirements and classification society standards that may specify particular cable types or performance characteristics. The RigFlex-125's compliance with multiple international standards provides flexibility in meeting these requirements, but engineers must verify that the cable meets the specific requirements of their application.
Classification society approval may be required for certain installations, particularly those involving passenger vessels or commercial shipping. The cable's extensive testing and certification provide a strong foundation for obtaining these approvals, but the specific requirements of each classification society must be evaluated.
Regional electrical codes and standards may also impact cable selection, particularly for installations that operate in multiple jurisdictions. The cable's compliance with multiple international standards helps ensure broad applicability, but local requirements must always be verified.
Economic and Lifecycle Considerations
The initial cost of the RigFlex-125 Type P Power Cable must be evaluated against its expected service life and maintenance requirements. While the cable's specialized construction may result in higher initial costs compared to conventional cables, its superior durability and reliability can provide significant lifecycle cost advantages.
Maintenance and replacement costs are particularly important in marine applications where access to electrical systems may be limited and where downtime can be extremely expensive. The cable's robust construction and resistance to environmental degradation can significantly reduce maintenance requirements and extend service life.
Installation costs must also be considered, as the cable's flexibility and durability can reduce installation time and complexity. The reduced risk of installation damage and the cable's ability to accommodate tight bends can offset higher material costs through reduced labor requirements.
Conclusion
The RigFlex-125 Type P Power Cable Single Conductor 2kV Armoured and Sheathed represents a sophisticated engineering solution specifically designed to meet the demanding requirements of offshore and shipboard power systems. Its comprehensive design approach addresses the multiple challenges inherent in marine electrical installations, from environmental protection to mechanical durability to electrical performance.
The cable's construction reflects decades of marine industry experience and incorporates advanced materials science to provide superior performance under the extreme conditions encountered in offshore and shipboard applications. The combination of flexible armored construction, specialized insulation systems, and environmentally resistant sheathing creates a cable that can reliably operate in conditions that would quickly defeat conventional power cables.
For engineers and procurement professionals evaluating power cable options for marine applications, the RigFlex-125 Type P offers compelling advantages in terms of reliability, durability, and long-term performance. Its compliance with multiple international standards ensures broad applicability, while its superior environmental resistance and mechanical durability provide the foundation for reliable long-term operation.
The cable's role in ensuring system reliability and safety under extreme operational conditions cannot be overstated. In marine environments where electrical system failures can have catastrophic consequences, the choice of power cable becomes a critical safety decision. The RigFlex-125 Type P Power Cable's proven design and extensive testing provide the confidence that engineers need when specifying electrical systems for these demanding applications.
While the cable's specialized construction may result in higher initial costs compared to conventional alternatives, its superior performance characteristics and extended service life provide compelling economic advantages when evaluated on a lifecycle cost basis. For applications where reliability is paramount and where the consequences of failure are severe, the RigFlex-125 Type P Power Cable represents an excellent choice for offshore and shipboard power systems.
