Introduction: The Critical Foundation of Marine Power Infrastructure

In the unforgiving environment of offshore oil platforms and marine vessels, electrical power systems serve as the lifeline that keeps operations running smoothly and safely. Every component in these power networks must withstand extreme conditions that would quickly destroy conventional electrical equipment. Salt spray corrodes metal surfaces, mechanical vibrations stress connections, temperature fluctuations challenge material integrity, and exposure to petroleum products tests chemical resistance. Among these critical components, power cables represent one of the most vulnerable yet essential elements of the entire electrical infrastructure.

The RigFlex-125 Type P power cable emerges as a specialized solution engineered specifically to meet these extraordinary demands. This single conductor, 2kV rated cable combines advanced materials science with decades of marine engineering expertise to deliver reliable power transmission in environments where failure is not an option. Understanding the technical sophistication behind this cable design reveals why it has become a preferred choice for engineers tasked with maintaining power integrity in some of the world's most challenging operating conditions.

Application Scope: Where Engineering Meets Extreme Environments

The RigFlex-125 Type P cable finds its primary application in fixed and floating offshore oil rigs, where power distribution systems must operate continuously under conditions that push conventional electrical equipment beyond its limits. These installations present a unique combination of challenges that require specialized engineering solutions. The constant presence of saltwater creates an aggressive corrosive environment that attacks both metallic conductors and protective sheathing materials. Simultaneously, the presence of crude oil, refined petroleum products, and various petrochemical fluids introduces additional chemical stresses that can degrade insulation materials and compromise electrical integrity.

Floating platforms introduce mechanical stresses that fixed installations never experience. As these structures respond to wave action and weather conditions, power cables must flex and bend repeatedly without developing stress fractures or losing their protective properties. The cable's construction must accommodate these dynamic loads while maintaining consistent electrical performance throughout its service life.

Shipboard power systems present similar challenges but with additional complexity. Marine vessels operate across diverse geographic regions, exposing electrical systems to wide temperature variations and different environmental conditions. The RigFlex-125's design addresses these varied operating parameters through careful material selection and construction techniques that ensure consistent performance regardless of operating location.

Beyond the primary applications in offshore oil and gas operations, these cables serve critical roles in other marine industries where reliable power distribution is essential. Port facilities, marine construction projects, and specialized vessels all benefit from the cable's robust design and environmental resistance capabilities.

Design Standards and Compliance: Meeting Global Engineering Requirements

The development and manufacture of the RigFlex-125 Type P cable adheres to a comprehensive framework of international standards that ensure both safety and performance in marine applications. This standards compliance is not merely a regulatory requirement but serves as a fundamental design philosophy that guides every aspect of the cable's construction and testing protocols.

IEEE 1580 represents the primary standard governing marine cable design and performance requirements. This comprehensive specification establishes the technical parameters for conductors, insulation materials, protective layers, and testing procedures that marine cables must meet to ensure safe operation in shipboard and offshore environments. The standard addresses critical factors such as flame propagation characteristics, smoke generation properties, and toxic gas emission limits that are particularly important in enclosed marine spaces where evacuation options may be limited.

UL 1309 provides additional safety requirements specifically focused on marine applications, establishing testing protocols that verify a cable's ability to maintain electrical integrity under various failure scenarios. This standard ensures that even under abnormal operating conditions, the cable will not become a safety hazard to personnel or equipment.

CSA C22.2 No.245 brings Canadian electrical safety requirements into the compliance framework, ensuring that the cable meets North American installation and performance standards. This standard addresses specific environmental conditions common in offshore operations, including low-temperature performance requirements that are critical for operations in northern waters.

IEEE 45 serves as the overarching standard for electrical installations on ships, providing the broader context within which individual components like the RigFlex-125 must operate. This standard ensures that the cable's electrical characteristics are compatible with typical marine power distribution systems and that its installation requirements align with standard marine electrical practices.

Key Construction Features: Engineering Materials for Marine Excellence

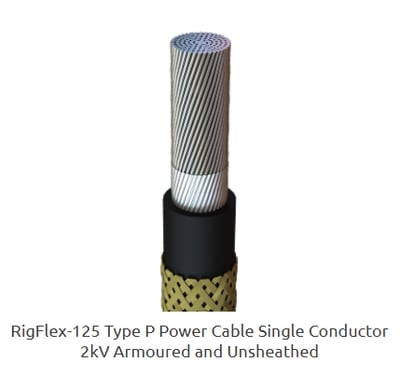

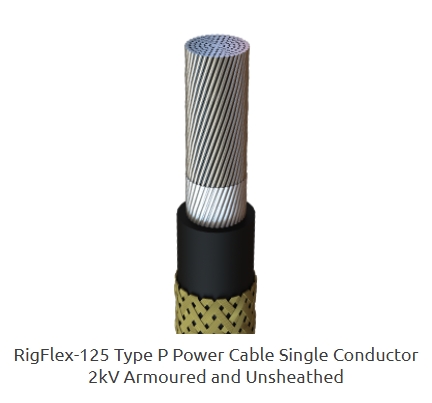

Understanding the construction of the RigFlex-125 Type P cable reveals the sophisticated engineering that enables its exceptional performance in marine environments. Each component layer serves specific functions that contribute to the cable's overall reliability and durability.

Conductor Design and Material Selection

The cable's conductor utilizes soft annealed, flexible, stranded tinned copper that conforms to ASTM B33 and IEEE 1580 Table 11 specifications. This material choice reflects careful consideration of the electrical, mechanical, and environmental requirements of marine applications. The soft annealing process creates a conductor with maximum flexibility, allowing the cable to withstand the repeated bending and flexing that occurs in marine installations without developing stress fractures that could lead to electrical failure.

The stranded construction provides several advantages over solid conductors in marine applications. Individual strands can move relative to each other during bending, distributing mechanical stress more evenly and reducing the likelihood of conductor breakage. The specific stranding pattern and individual wire diameter are optimized to provide the best balance between flexibility and current-carrying capacity.

Tinning of the copper strands provides critical corrosion protection in the marine environment. The tin coating creates a barrier that prevents salt water and other corrosive substances from reaching the underlying copper, significantly extending the conductor's service life. This protective measure is particularly important in marine applications where moisture ingress, despite protective outer layers, remains a constant concern.

Insulation System Engineering

The cross-linked polyolefin insulation system represents one of the most critical components in the cable's construction. Designated as Type P per IEEE 1580 and Type X110 per UL/CSA standards, this insulation material provides exceptional electrical properties while maintaining mechanical integrity under extreme operating conditions.

Cross-linking is a chemical process that creates three-dimensional molecular bonds within the polymer structure, dramatically improving the material's thermal stability and mechanical properties. This process enables the insulation to maintain its electrical characteristics at elevated temperatures while providing enhanced resistance to environmental stress cracking and chemical attack.

The polyolefin base material offers inherent resistance to moisture absorption, which is critical in marine environments where humidity levels remain consistently high. Unlike some insulation materials that can absorb moisture and experience degraded electrical properties, the cross-linked polyolefin maintains stable dielectric characteristics even under conditions of high humidity and temperature cycling.

Armoring System for Mechanical Protection

The basket weave armor construction provides comprehensive mechanical protection while serving dual functions as both a protective layer and an equipment grounding conductor. This armor system utilizes either bronze or tinned copper wires woven in a specific pattern that provides flexibility while maintaining structural integrity.

The basket weave design distributes mechanical loads evenly across the cable's surface, preventing localized stress concentrations that could lead to armor failure. This construction allows the cable to maintain its protective properties even when subjected to repeated bending cycles or mechanical impact. The armor's flexibility ensures that it moves with the cable during installation and operation, rather than creating stress points that could compromise the underlying insulation.

The choice between bronze and tinned copper armor materials depends on specific application requirements and environmental conditions. Bronze offers superior corrosion resistance in certain chemical environments, while tinned copper provides better electrical conductivity for grounding applications. Both materials are selected based on their proven performance in marine environments and their compatibility with the overall cable design.

Electrical and Mechanical Performance: Quantifying Reliability

The electrical performance characteristics of the RigFlex-125 Type P cable reflect its design optimization for marine power distribution applications. The 2kV voltage rating provides adequate insulation strength for medium-voltage distribution systems commonly found in offshore and marine installations. This voltage level offers an optimal balance between power transmission capability and insulation system complexity, making it suitable for a wide range of applications from motor feeders to distribution panels.

Temperature Performance and Thermal Management

The cable's temperature rating of up to 125°C for single core applications demonstrates its ability to operate reliably under high thermal stress conditions. This temperature capability is particularly important in marine environments where ambient temperatures can be elevated due to equipment operation, solar heating, or proximity to hot surfaces such as engine rooms or processing equipment.

The thermal performance extends beyond simple temperature resistance to include considerations of thermal cycling and heat dissipation. The cross-linked polyolefin insulation maintains its electrical properties throughout repeated heating and cooling cycles, preventing the degradation that can occur in less sophisticated insulation systems. The conductor design and overall cable construction facilitate efficient heat dissipation, preventing the buildup of excessive temperatures that could compromise system reliability.

Fire Performance and Safety Characteristics

Fire safety represents a critical concern in marine installations where evacuation options may be limited and fire suppression capabilities are constrained by the operating environment. The RigFlex-125's compliance with IEEE 1202 and IEC 60332-3 flame resistance standards ensures that the cable will not contribute to fire propagation in the event of an electrical fault or external fire source.

These standards test various aspects of fire performance, including flame propagation rates, smoke generation characteristics, and toxic gas emission levels. The cable's materials and construction are specifically selected to minimize these hazards, providing additional safety margins for personnel and equipment protection.

Cold Weather Performance Capabilities

Marine operations often occur in environments where low temperatures create additional challenges for electrical equipment. The RigFlex-125's cold performance specifications include cold bend testing at -40°C and cold impact testing at -35°C, demonstrating its ability to maintain mechanical integrity under extreme low-temperature conditions.

Cold bend testing verifies that the cable can be manipulated and installed even when exposed to very low temperatures, ensuring that installation and maintenance activities can proceed safely regardless of weather conditions. Cold impact testing confirms that the cable will not become brittle and fail if subjected to mechanical impact under low-temperature conditions.

Installation and Handling Characteristics

The minimum bending radius specification of 6 times the overall cable diameter provides guidance for safe installation practices while ensuring that the cable's performance characteristics are not compromised during installation. This specification reflects the cable's flexibility while establishing limits that prevent damage to the conductor, insulation, or armor systems.

Current-carrying capacity calculations per IEEE 1580 and IEEE 45.8 provide engineers with the data necessary to properly size the cable for specific applications. These calculations consider factors such as ambient temperature, installation method, and grouping effects to ensure that the cable operates within safe thermal limits throughout its service life.

black red and yellow coated wires
black red and yellow coated wires

Durability and Environmental Resistance: Engineering for Longevity

The harsh marine environment subjects electrical equipment to a combination of environmental stresses that would quickly destroy conventional power cables. The RigFlex-125's exceptional resistance to oil, abrasion, saltwater, petrochemicals, moisture, and sunlight reflects sophisticated materials engineering and construction techniques specifically developed for these challenging applications.

Chemical Resistance Engineering

Oil resistance is particularly critical in offshore petroleum operations where crude oil, refined products, and various petrochemical fluids are present throughout the installation. The cable's materials are selected and tested to ensure that prolonged exposure to these substances will not degrade the insulation properties or compromise the protective armor system. This chemical resistance extends beyond simple petroleum products to include hydraulic fluids, lubricants, and cleaning solvents commonly used in marine operations.

Saltwater presents one of the most aggressive environments for electrical equipment, combining high ionic content with excellent electrical conductivity. The cable's construction incorporates multiple barriers to saltwater ingress, while the materials are selected for their ability to maintain integrity even if some moisture penetration occurs. The tinned copper conductor and armor materials provide inherent corrosion resistance, while the cross-linked polyolefin insulation resists degradation from salt contamination.

Mechanical Durability Features

Abrasion resistance is essential in marine installations where cables may be subjected to movement against structural members, equipment housings, or other cables. The cable's outer construction provides protection against mechanical wear while maintaining flexibility for installation and operation. This abrasion resistance extends the cable's service life and reduces maintenance requirements in installations where mechanical protection may be limited.

UV resistance ensures that portions of the cable installation exposed to sunlight will not experience degradation of the protective outer layers. This characteristic is particularly important for installations on offshore platforms where portions of the electrical system may be exposed to direct sunlight and reflected light from water surfaces.

Long-term Performance Characteristics

The combination of material selection, construction techniques, and testing protocols ensures that the RigFlex-125 maintains its performance characteristics throughout extended service life under extreme operating conditions. This long-term reliability is critical in offshore installations where cable replacement is expensive and operationally disruptive.

The cable's design incorporates margin factors that account for the gradual degradation that occurs in all materials over time. These margins ensure that even as materials age and environmental exposure takes its toll, the cable continues to meet its performance specifications and safety requirements.

Advantages for Engineers and Procurement Teams: Value Through Performance

The RigFlex-125 Type P cable offers significant advantages for engineers and procurement professionals responsible for marine and offshore electrical systems. These advantages extend beyond simple technical compliance to encompass operational reliability, cost-effectiveness, and risk mitigation in critical applications.

Reliability in Mission-Critical Applications

Marine and offshore operations depend on electrical power for safety systems, navigation equipment, communication systems, and production operations. Power failures in these environments can have consequences ranging from production losses to safety emergencies. The RigFlex-125's proven reliability in harsh environments provides the foundation for dependable electrical systems that support continuous operations.

The cable's standards compliance and testing history provide documented evidence of its performance capabilities, supporting engineering decisions and regulatory approvals. This documentation is particularly valuable in offshore operations where regulatory oversight is stringent and safety requirements are paramount.

Installation and Maintenance Cost Benefits

The cable's high flexibility and rugged construction reduce installation complexity and associated costs. The ability to route the cable through congested areas and around obstacles without compromising performance reduces installation time and labor requirements. The minimum bending radius specification allows for efficient cable routing while maintaining performance integrity.

Maintenance costs are reduced through the cable's resistance to environmental degradation and mechanical damage. The extended service life and reliable performance characteristics minimize the need for preventive replacement and reduce the risk of unexpected failures that require emergency maintenance operations.

Global Acceptance and Regulatory Readiness

The comprehensive standards compliance ensures that the RigFlex-125 meets regulatory requirements in major maritime jurisdictions worldwide. This global acceptance simplifies procurement processes and reduces the complexity of managing different cable specifications for international operations.

The standards compliance also provides assurance to classification societies, insurance providers, and regulatory authorities that the electrical installation meets recognized safety and performance criteria. This regulatory acceptance can streamline approval processes and reduce project delays associated with equipment certification.

Conclusion: Excellence in Marine Power Distribution

The RigFlex-125 Type P Power Cable represents the culmination of advanced materials science, sophisticated manufacturing techniques, and decades of marine engineering experience. Its comprehensive design addresses the unique challenges of offshore and marine electrical installations through careful attention to conductor materials, insulation systems, mechanical protection, and environmental resistance.

For demanding marine power applications, the RigFlex-125 offers a proven solution that combines technical excellence with operational reliability. Its ability to maintain consistent performance under extreme environmental conditions makes it an ideal choice for offshore platforms, floating production storage and offloading vessels, and shipboard electrical systems where power reliability is essential for safe and efficient operations.

Engineers and procurement professionals can specify the RigFlex-125 with confidence, knowing that its comprehensive standards compliance, documented performance history, and proven reliability in marine applications provide the foundation for dependable electrical systems. The cable's technical sophistication, combined with its practical advantages in installation and maintenance, makes it a valuable component in the electrical infrastructure that supports modern marine and offshore operations.

In an industry where the cost of failure extends far beyond simple equipment replacement, the RigFlex-125 Type P Power Cable provides the reliability and performance assurance that marine electrical systems demand. Its continued evolution and improvement ensure that it will remain a preferred solution for marine power distribution applications well into the future.
