Is (N)GRDGCGÖU the Right Flexible Low-Voltage Cable for Demanding Marine and Port Applications?
Explore the technical specifications, applications, and benefits of (N)GRDGCGÖU flexible low-voltage cables designed for heavy-duty port, crane, and shipboard operations, offering reliable power under constant movement, mechanical stress, and harsh marine conditions.
BLOGS
6/16/202510 min read
Understanding the Foundation of Heavy-Duty Cable Engineering
The world of industrial cable engineering presents unique challenges that standard electrical cables simply cannot meet. When equipment must operate continuously under mechanical stress, environmental extremes, and constant movement, engineers turn to specialized solutions like the (N)GRDGCGÖU flexible low-voltage cable. This remarkable piece of engineering represents the intersection of materials science, electrical engineering, and practical industrial design.
The (N)GRDGCGÖU stands as a testament to advanced cable construction, specifically engineered for applications where ordinary cables would fail within weeks or months. To truly appreciate this cable's capabilities, we must first understand what makes it fundamentally different from conventional power and control cables. While standard cables prioritize cost-effectiveness and basic electrical performance, the (N)GRDGCGÖU prioritizes durability, flexibility, and reliability under the most demanding conditions.
This heavy-duty low-voltage power and control cable emerges from a deep understanding of industrial needs. Engineers designing chain systems, festoon applications, and material handling equipment face a constant challenge: how do you maintain reliable electrical connections when components are in constant motion? The answer lies in cables that can bend thousands of times without degradation, resist environmental contamination, and maintain electrical integrity under mechanical stress that would destroy conventional alternatives.
Critical Applications: Where Engineering Meets Real-World Demands
Understanding where the (N)GRDGCGÖU excels requires examining the specific challenges of modern industrial applications. Chain and festoon systems represent some of the most demanding cable environments imaginable. Picture a overhead crane system where cables must follow the crane's movement along tracks, constantly flexing and adjusting to maintain power and control connections. Traditional cables would develop stress fractures, conductor breaks, or insulation failures within months of such treatment.
The cable's design specifically addresses the needs of lifting equipment, material handlers, and cranes where safety and reliability cannot be compromised. In these applications, cable failure doesn't just mean downtime – it can represent serious safety hazards and costly equipment damage. The (N)GRDGCGÖU's construction ensures that electrical connections remain stable even when supporting heavy loads or operating at high speeds.
Loading and transport machinery present another category of demanding applications. Consider automated warehouse systems where cables must flex continuously as robotic systems move materials. The repetitive motion, combined with the need for precise control signals, demands cables that maintain their electrical characteristics throughout millions of flex cycles. The (N)GRDGCGÖU's specialized elastomer compounds and conductor design specifically address these requirements.
Industrial environments often subject cables to conditions that would quickly degrade standard alternatives. Factories and workshops frequently expose cables to moisture, oil, chemical vapors, and temperature extremes. The (N)GRDGCGÖU's multi-layer construction creates barriers against these environmental challenges while maintaining the flexibility necessary for dynamic applications.
Outdoor applications add another layer of complexity, combining environmental stress with mechanical demands. Weather exposure, UV radiation, temperature cycling, and moisture ingress all threaten cable integrity. The (N)GRDGCGÖU's outer sheath materials and construction methods specifically address these outdoor challenges while preserving the cable's primary function in demanding mechanical environments.
Deconstructing the Engineering: What Makes It Work

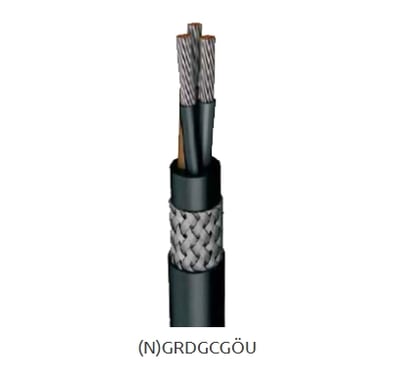

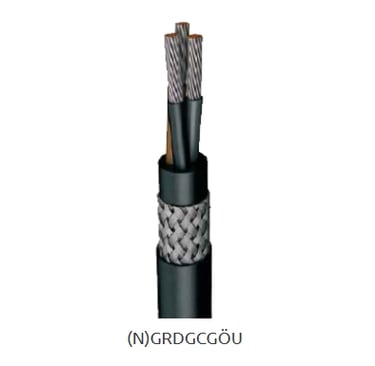

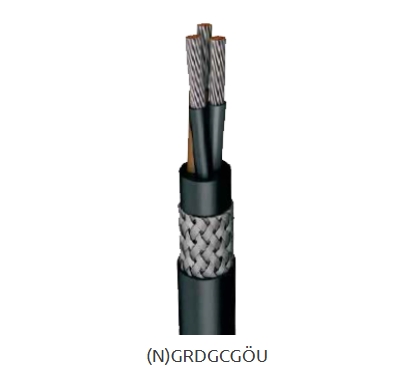

The (N)GRDGCGÖU's performance stems from its carefully engineered construction, where each component serves specific functions in the overall system. Understanding this construction helps explain why this cable succeeds where others fail.
The conductor represents the cable's electrical heart, utilizing Class 5 stranded tinned copper that has been electrolytically refined and annealed. This specification might seem like technical jargon, but each element serves crucial purposes. Class 5 stranding creates maximum flexibility by using many small conductors instead of fewer large ones. Think of it like the difference between a rigid steel rod and a bundle of fine wires – the bundle flexes easily while maintaining strength. The tinning process coats each copper strand with a thin layer of tin, preventing oxidation and ensuring long-term conductivity even in harsh environments. The electrolytic refining and annealing processes create copper with optimal purity and flexibility characteristics.
The insulation system employs 3GI3 elastomer compound, a specialized material chosen for its unique combination of electrical properties and mechanical flexibility. Traditional plastic insulators become brittle with repeated flexing, but elastomers maintain their properties through millions of bend cycles. The 3GI3 designation indicates specific formulation characteristics that balance electrical performance with mechanical durability.
Core identification follows VDE 0293-308 standards, ensuring consistent color coding that meets European industrial requirements. This standardization prevents wiring errors that could cause equipment damage or safety hazards. Professional electricians and technicians can rely on consistent identification regardless of cable length or installation complexity.
The inner sheath adds another layer of protection using elastomer compounds specifically chosen for chemical resistance and mechanical protection. This layer prevents moisture ingress while providing additional flexibility. The inner sheath also helps maintain the cable's round cross-section under bending stress, preventing conductor displacement that could cause electrical problems.
The screening system utilizes tinned copper wire braid with approximately 80% coverage, creating electromagnetic shielding that prevents interference while maintaining flexibility. Solid shields would provide better electrical performance but would crack under repeated flexing. The braided design maintains shielding effectiveness while accommodating the mechanical demands of mobile applications.
The outer sheath employs 5GM3 elastomer compound, representing the cable's final defense against environmental and mechanical challenges. This formulation specifically addresses oil resistance, weather resistance, and abrasion resistance while maintaining the flexibility necessary for dynamic applications.




Electrical Performance: Power and Control Under Pressure
The (N)GRDGCGÖU's electrical specifications reflect careful engineering balances between performance, safety, and reliability. The rated voltage of 0.6/1 kV provides substantial safety margins for low-voltage applications while enabling use in systems with moderate voltage requirements. Understanding these specifications helps engineers select appropriate cables for specific applications.
The maximum AC operating voltage of 0.7/1.2 kV demonstrates the safety margin built into the cable's design. This overvoltage capability ensures reliable operation even when supply voltages fluctuate or when system conditions create temporary voltage increases. The maximum DC operating voltage of 0.9/1.8 kV reflects the different stress patterns that DC voltages place on insulation systems compared to AC voltages.
The AC test voltage of 3.5 kV represents a rigorous quality assurance measure that ensures insulation integrity under stress conditions far exceeding normal operation. This testing voltage demonstrates the cable's ability to maintain electrical safety even under fault conditions or insulation degradation scenarios.
Temperature ratings provide crucial information for application planning. The conductor's maximum continuous rating of 90°C indicates the highest temperature the copper conductors can safely reach during normal operation. This temperature rating accounts for both electrical heating from current flow and environmental temperature contributions. The short-circuit rating of 250°C indicates the maximum temperature the conductors can withstand during fault conditions without permanent damage.
These electrical specifications work together to create a cable system capable of reliable operation under the electrical stresses common in industrial control and power applications. The specifications provide engineers with clear parameters for system design while ensuring adequate safety margins for unexpected operating conditions.
Mechanical Excellence: Engineering for Motion and Stress
The mechanical specifications of the (N)GRDGCGÖU reveal its true engineering sophistication. The temperature ranges for different applications demonstrate understanding of real-world installation requirements. Fixed installations can operate from -40°C to +80°C, reflecting the cable's ability to handle extreme temperature variations in stationary applications. Mobile applications operate from -25°C to +80°C, recognizing that moving applications generate internal heating that requires different temperature management.
The minimum bending radius specification according to VDE 0298-3 ensures that installation practices don't compromise cable integrity. Bending cables too sharply can damage conductors, stress insulation, or create premature failure points. The VDE specification provides engineering guidance that balances flexibility requirements with mechanical protection.
The maximum chain and festoon travel speed of up to 240 meters per minute represents remarkable engineering achievement. Consider that this speed equals 14.4 kilometers per hour – faster than many people run – while maintaining electrical integrity and mechanical durability. This specification enables high-speed automated systems that would be impossible with conventional cables.
The maximum tensile loading of 15 N/mm² provides crucial information for installation planning and support system design. This specification indicates the maximum pulling force the cable can withstand without damage, helping engineers design appropriate cable support systems and installation procedures.
These mechanical specifications demonstrate the cable's ability to function in applications that would quickly destroy conventional alternatives. The engineering behind these capabilities represents years of materials development, testing, and refinement to create cables that reliably perform under extreme mechanical conditions.
Quality Assurance: Standards That Ensure Performance
The (N)GRDGCGÖU's compliance with numerous technical standards reflects comprehensive quality assurance that extends far beyond basic electrical safety. Each standard addresses specific aspects of cable performance and reliability.
The general standards DIN VDE 0250-814 and 0250-1 establish fundamental construction requirements that ensure consistent quality and performance characteristics. These standards define materials specifications, construction tolerances, and performance requirements that manufacturers must meet to ensure reliable products.
The usage guide standard DIN VDE 0298-3 provides engineering guidance for proper cable selection and installation. This standard helps ensure that cables are used within their design parameters, preventing premature failures and safety hazards that could result from improper application.
Electrical testing standards DIN VDE 0472-501, 502, 503, and 508 define comprehensive testing procedures that verify electrical performance under various conditions. These tests include insulation resistance measurements, voltage withstand tests, and performance verification under environmental stress conditions.
Non-electrical testing standards DIN VDE 0472-401, 402, 602, 303, and 615 address mechanical and environmental performance characteristics. These tests verify flexibility, abrasion resistance, chemical resistance, and other properties crucial for reliable operation in demanding applications.
Flame retardant testing according to VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1 ensures that cables won't propagate fires or contribute to fire hazards. This testing is particularly important in industrial applications where fire safety represents critical concerns.
Oil resistance testing according to HD/EN/IEC 60811-2-1 and DIN VDE 0473-811-2-1 specifically addresses industrial environment requirements where cable exposure to oils and other chemicals is common. This testing ensures that cable materials won't degrade when exposed to typical industrial fluids.


Practical Considerations: Engineering Solutions for Real Challenges
Understanding the (N)GRDGCGÖU's capabilities requires examining how it addresses common industrial challenges. The question of performance under heavy mechanical stress and frequent bending conditions reflects fundamental concerns about cable durability in dynamic applications. The cable's stranded tinned copper conductors and flexible elastomer compounds specifically address these concerns by providing flexibility without compromising electrical performance.
The stranded conductor design distributes mechanical stress across many small conductors rather than concentrating stress in fewer large conductors. When the cable bends, individual strands can move and adjust without breaking, while solid conductors would develop stress concentrations that lead to failure. The tinned coating prevents oxidation at strand contact points, ensuring long-term electrical continuity even after millions of flex cycles.
The elastomer compound selection represents careful materials engineering that balances multiple requirements. These compounds must provide electrical insulation while maintaining flexibility, chemical resistance, and mechanical durability. Traditional plastic insulators become brittle with repeated flexing, but properly formulated elastomers maintain their properties throughout the cable's service life.
The cable's suitability for wet or oily industrial environments stems from its multi-layer construction and materials selection. The outer elastomer sheath provides the primary barrier against environmental contamination, while the inner sheath provides backup protection. The materials resist swelling, degradation, and electrical property changes when exposed to typical industrial fluids.
Temperature performance capabilities reflect both materials selection and construction techniques. The specified temperature ranges account for both environmental temperature and internal heating from electrical operation. The cable's construction allows for thermal expansion and contraction without damage, while the materials maintain their properties across the specified temperature ranges.
The maximum tensile loading specification of 15 N/mm² provides practical guidance for installation and support system design. This specification helps engineers calculate appropriate cable support intervals and pulling forces during installation. Understanding these limits prevents installation practices that could damage the cable or create premature failure points.
Advanced Applications: Pushing the Boundaries of Cable Performance
The (N)GRDGCGÖU's specifications enable applications that push the boundaries of conventional cable performance. High-speed automated systems require cables that can flex rapidly without generating heat, maintaining electrical properties, or developing mechanical fatigue. The cable's maximum travel speed of 240 meters per minute opens possibilities for advanced automation systems that would be impossible with conventional cables.
Precision positioning systems benefit from the cable's stable electrical characteristics under mechanical stress. When cables flex, conventional designs often experience resistance changes, capacitance variations, or signal integrity problems. The (N)GRDGCGÖU's construction minimizes these variations, enabling precise control applications where signal stability is crucial.
Marine and offshore applications present extreme environmental challenges that test every aspect of cable design. Salt spray, temperature cycling, UV exposure, and mechanical stress from wave action create conditions that rapidly degrade conventional cables. The (N)GRDGCGÖU's materials and construction methods address these challenges while maintaining the flexibility necessary for dynamic marine applications.
Heavy industrial applications often combine multiple stress factors that would overwhelm conventional cables. Chemical exposure, temperature extremes, mechanical stress, and electrical demands all occur simultaneously. The (N)GRDGCGÖU's multi-layer construction and materials selection provide defense against all these challenges while maintaining reliable electrical performance.
Economic Considerations: Understanding Value in Critical Applications
While the (N)GRDGCGÖU represents a premium cable solution, understanding its economic value requires examining total cost of ownership rather than initial purchase price. In critical applications, cable failure costs extend far beyond replacement cable costs to include downtime, maintenance labor, and potential safety incidents.
The cable's extended service life in demanding applications often provides substantial cost savings compared to frequent replacement of conventional alternatives. When standard cables require replacement every few months due to mechanical failure, the (N)GRDGCGÖU's years of reliable service provide significant economic advantages.
Reduced maintenance requirements translate to lower labor costs and less production disruption. The cable's reliable performance reduces the need for preventive maintenance, emergency repairs, and system monitoring that would be necessary with less robust alternatives.
The cable's performance consistency enables more efficient system operation and reduces the risk of production delays or quality problems caused by electrical system instability. In automated systems, reliable cable performance directly translates to improved productivity and reduced waste.
Conclusion: Engineering Excellence for Demanding Applications
The (N)GRDGCGÖU flexible low-voltage cable represents sophisticated engineering that addresses the real-world challenges of demanding industrial applications. Its construction combines advanced materials science with practical design considerations to create a cable that reliably performs where conventional alternatives fail.
Understanding this cable's capabilities requires appreciating the engineering challenges it addresses. From the molecular structure of its elastomer compounds to the geometric design of its conductor stranding, every aspect serves specific functions in creating reliable performance under extreme conditions.
For engineers facing applications with frequent movement, mechanical stress, environmental exposure, and reliability requirements, the (N)GRDGCGÖU provides a proven solution backed by comprehensive testing and real-world performance. Its specifications demonstrate the possibility of achieving both flexibility and durability in a single cable design.
The question of whether the (N)GRDGCGÖU is right for specific applications depends on understanding both the cable's capabilities and the application's requirements. For demanding applications where reliability cannot be compromised, this cable represents the engineering excellence necessary to ensure successful system operation.
