Is BS6724 Low Smoke Zero Halogen Cable Suitable for Enclosed Port Warehouses?

Introduction

In the critical infrastructure of enclosed port warehouses, electrical safety represents one of the most fundamental yet often overlooked aspects of operational security. These facilities serve as vital nodes in global supply chains, housing valuable cargo in environments that combine confined spaces with high-value assets and continuous mechanical activity. Within this context, the selection of appropriate electrical cabling becomes paramount not merely for operational continuity but for preventing catastrophic incidents.

BS6724 cables—thermosetting insulated, armoured Low Smoke Zero Halogen (LSZH) power cables rated from 600/1000V to 1900/3300V—have emerged as a significant consideration for such installations. These specialized cables represent the intersection of fire performance engineering and mechanical resilience, designed specifically to address the multifaceted challenges of industrial environments where ventilation is limited and the consequences of electrical fires would be severe.

The maritime logistics sector presents a unique combination of environmental stressors that test electrical infrastructure to its limits. Understanding whether BS6724 cables meet these challenges requires exploring both the specific demands of enclosed port warehouses and the technical capabilities of these specialized cables.

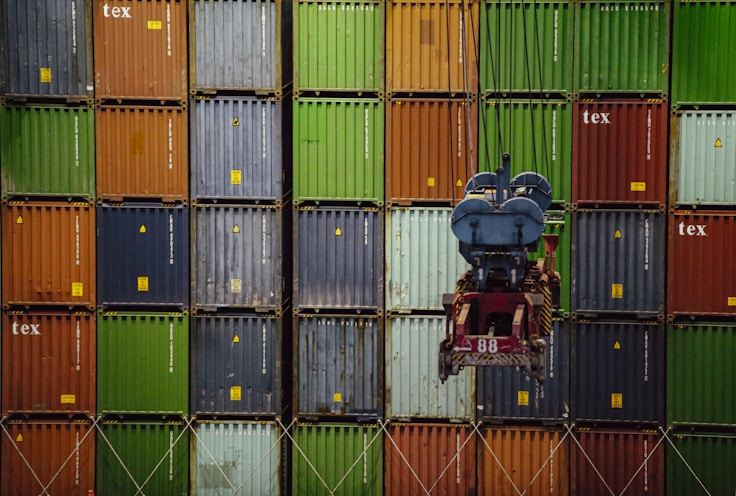

Understanding the Application Scenario: Enclosed Port Warehouses

Enclosed port warehouses present a challenging operational environment with distinct characteristics that place considerable demands on electrical infrastructure. These facilities typically feature confined spaces with limited natural ventilation, creating potential trapping points for smoke and toxic gases in the event of fire. The air quality itself presents challenges, combining high humidity levels with salt-laden air that accelerates corrosion of standard metallic components.

The electrical distribution networks within these facilities must support diverse systems including high-bay lighting arrays, conveyor systems, overhead cranes, automated guided vehicles, security systems, and fire detection infrastructure. This diversity of applications requires cables capable of operating across different voltage ranges while maintaining consistent performance characteristics.

The risk profile of enclosed port warehouses is particularly concerning from an electrical perspective. Fire hazards can develop rapidly in these spaces due to the combination of electrical equipment, mechanical activities, and sometimes flammable cargo. Once initiated, fires in poorly ventilated spaces can quickly create lethal conditions through smoke accumulation and toxic gas production from burning materials. Additionally, the constant movement of heavy machinery creates ongoing risks of mechanical impact and abrasion to installed cable systems.

This unique risk profile explains why Low Smoke Zero Halogen (LSZH) and armoured cable designs have become increasingly critical in these environments. Standard PVC-sheathed cables, when exposed to fire, release hydrogen chloride gas and dense black smoke—both potentially lethal in confined spaces. Additionally, the mechanical protection offered by armoured designs becomes essential in environments where cables may be exposed to impacts from forklifts, containers, or other heavy equipment.

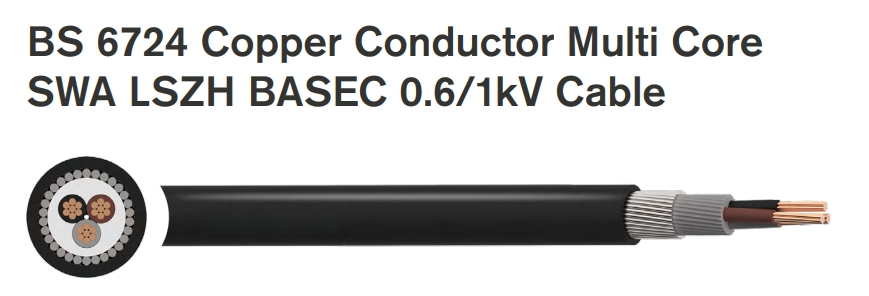

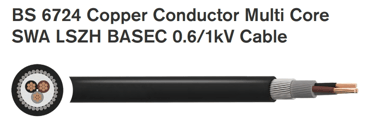

BS6724 Cable Specification and Construction

BS6724 cables represent purpose-engineered solutions that combine electrical performance with enhanced safety characteristics. Their construction follows specific technical parameters designed to address the challenges of industrial environments.

Voltage Ratings

BS6724 cables are available in two primary voltage classifications:

• 600/1000V (1kV): Suitable for standard power distribution within warehouse facilities

• 1900/3300V (3.3kV): Appropriate for higher-power applications such as large motors, cranes, and primary distribution circuits

This voltage range flexibility allows facility designers to standardize on a single cable specification across different applications within the warehouse electrical system.

Conductor Types

The cables accommodate various conductor configurations:

• Stranded copper conductors (Class 2): Offering optimal conductivity and flexibility

• Solid aluminium conductors (Class 1): Providing a lightweight, economical alternative where appropriate

Available in single-core, two-core, three-core, four-core, five-core, and multicore variants, BS6724 cables can be specified to match precise application requirements, whether for three-phase power distribution, control circuits, or specialized applications.

Insulation

The thermosetting insulation compounds used in BS6724 cables—typically GP8, GP6, or EI5—deliver excellent thermal stability and consistent electrical properties across a wide temperature range. Unlike thermoplastic insulation that can deform under heat, these compounds maintain their integrity even when exposed to elevated temperatures, ensuring circuit integrity during thermal events.

Bedding

Between the insulated conductors and the armour layer lies a polymeric bedding that is compatible with thermal operation. This layer must meet strict standards with hydrogen chloride gas emission (HCl) limited to ≤ 0.5%, significantly reducing toxic gas production during fires.

Armouring

The armour layer provides critical mechanical protection and varies by cable configuration:

• Aluminium Wire Armour (AWA) for single-core cables: This non-ferrous armour prevents the induction of eddy currents that would occur with steel armour in single-core applications

• Steel Wire Armour (SWA) for multi-core cables: Offering superior mechanical protection against compression, impact, and tensile stress

This armour layer enables BS6724 cables to withstand the physical challenges common in warehouse environments, including impacts from moving equipment, compression under temporary loads, and tensile stress during installation.

Outer Sheath

The defining characteristic of BS6724 cables is their Low Smoke Zero Halogen (LSZH) thermoplastic outer sheath, manufactured to BS7655 LTS 1 specifications. This specialized material offers:

• Resistance to ultraviolet radiation for outdoor applications

• Moisture and chemical exposure protection

• Extremely low halogen content (HCl ≤ 0.5%)

Fire & Smoke Characteristics

BS6724 cables undergo rigorous testing to international standards:

• IEC 60332-1 & 60332-3: Flame retardance tests for single vertical wires and vertically-mounted bunched wires

• IEC 60754: Measurement of halogen acid gas emission during combustion

• IEC 61034: Smoke density measurement during combustion

Additionally, these cables comply with European Union Construction Products Regulation (CPR) requirements for fixed installations, ensuring they meet contemporary safety standards for building infrastructure.

Advantages of BS6724 in Enclosed Maritime Warehouse Use

BS6724 cables offer several distinct advantages that align precisely with the challenges present in enclosed port warehouses.

First and foremost, their low smoke and halogen-free sheath substantially enhances safety for personnel and equipment during fire incidents. In confined warehouse spaces with limited ventilation, conventional PVC cables would release dense, toxic smoke containing hydrogen chloride, which combines with moisture to form hydrochloric acid. This acid can cause severe respiratory damage to personnel and corrode sensitive electronic equipment. BS6724 cables mitigate this risk by producing minimal smoke and negligible corrosive gases when exposed to fire.

The mechanical protection provided by the Steel Wire Armour (SWA) or Aluminium Wire Armour (AWA) makes these cables suitable for direct burial or installation in ducts, offering flexibility in routing options within port facilities. This armour layer provides resistance against crushing from heavy equipment, protection from impact damage during cargo movement, and defense against rodent attacks that might otherwise compromise cable integrity.

BS6724 cables maintain electrical integrity under both thermal and mechanical stress, ensuring operational continuity during challenging conditions. The thermosetting insulation maintains stable electrical characteristics even at elevated temperatures, while the armour layer preserves circuit integrity against mechanical deformation.

Their inherent resistance to corrosion makes these cables particularly well-suited to harsh maritime conditions characterized by salt-laden air and high humidity. The LSZH outer sheath provides an effective barrier against moisture ingress and chemical exposure, while properly specified armour materials can resist corrosion in saline environments.

Finally, BS6724 cables hold approvals for use in public and industrial buildings, including coastal infrastructure, ensuring compliance with regulatory requirements for port facilities. This widespread acceptance simplifies approval processes and reduces compliance concerns for facility managers.

FAQs: Addressing Port-Specific Electrical Concerns

Q1: Can BS6724 withstand port warehouse environmental exposure? A1: Yes. The LSZH sheath resists moisture and corrosive gases commonly found in maritime environments. While the cable offers good environmental protection, for scenarios involving direct exposure to salt spray or standing water, additional protection through suitable conduits is recommended. For particularly harsh salt-exposure scenarios, special consideration should be given to the specification of armour materials to prevent galvanic corrosion.

Q2: Is it safe for enclosed installations with poor ventilation? A2: Absolutely. BS6724 is specifically designed to emit low smoke and minimal halogen gas in fire conditions, reducing risk to personnel in confined areas. This is particularly relevant for enclosed port warehouses where evacuation routes may be limited and smoke accumulation can rapidly create life-threatening conditions. The reduced smoke emission also improves visibility during evacuations, potentially saving lives during emergency situations.

Q3: Does the cable support heavy machinery loads? A3: Yes. With proper sizing, the copper or aluminium conductors and XLPE insulation ensure reliable power delivery for heavy equipment like port cranes and loading systems. The thermosetting insulation maintains consistent electrical characteristics even under the high-current loading cycles typical of port equipment. When specifying cables for such applications, careful consideration of voltage drop under peak load conditions is essential to ensure operational efficiency.

Q4: Are there regulatory constraints for installation in maritime areas? A4: BS6724 complies with the CPR and major international fire and electrical safety standards. Always verify alignment with local port authority requirements. Some port authorities may have additional requirements specific to their facilities, particularly relating to installation methods, support systems, and segregation from other services. Early consultation with relevant authorities during the design phase can prevent costly modifications later.

Q5: Is BS6724 suitable for underground cable runs between terminals? A5: Yes. The armour layer (AWA or SWA) allows for direct burial and offers resistance to mechanical stress, making it ideal for inter-terminal routing. When installed in underground applications, appropriate consideration should be given to backfill material specification, depth of burial, and mechanical protection through warning tapes or protective tiles. For crossing areas with vehicle traffic, additional mechanical protection through ducting or concrete encasement may be necessary.

Conclusion

Based on comprehensive analysis of both the operational environment of enclosed port warehouses and the technical specifications of BS6724 cables, it becomes evident that these cables represent a technically sound choice for such facilities. The combination of fire safety characteristics, mechanical protection, and compliance with international standards creates a cable solution that directly addresses the unique challenges of maritime logistics environments.

The LSZH construction of BS6724 cables significantly reduces health risks to personnel and infrastructure damage in confined areas prone to fire hazards. By minimizing smoke production and eliminating corrosive halogen emissions during fire incidents, these cables create valuable additional time for evacuation and emergency response—a critical factor in the confined spaces typical of port warehouses.

To ensure optimal long-term operational safety, proper cable sizing calculations should be performed by qualified electrical engineers, taking into account specific load profiles, ambient temperatures, and installation methods. Additionally, adherence to local marine installation practices, including appropriate cable support systems and mechanical protection measures, will maximize service life and maintain safety performance over the operational lifespan of the installation.

In the context of increasingly stringent safety regulations and growing awareness of fire safety in maritime infrastructure, BS6724 cables represent a forward-looking solution that balances technical performance with enhanced safety characteristics for enclosed port warehouse applications.
