Introduction
Singapore's position as one of the world's busiest maritime hubs demands nothing less than cutting-edge infrastructure and equipment. The nation's ports handle over 37 million twenty-foot equivalent units (TEUs) annually, while its offshore sectors support critical energy and logistics operations throughout Southeast Asia. This massive scale of maritime activity requires power transmission systems that can withstand the unique challenges of marine environments while maintaining the highest standards of safety and operational efficiency.
Modern maritime operations in Singapore's ports and offshore sectors face increasingly complex demands. Container cranes must operate continuously in harsh coastal conditions, offshore supply vessels require reliable power systems that function seamlessly during dynamic positioning operations, and automated port equipment needs instantaneous data communication capabilities. Traditional cable systems often fall short when subjected to the repetitive stress of reeling operations, the corrosive effects of salt air, and the need for real-time data transmission that modern smart port operations demand.
This is where R-(N)TSCGEWÖU + FO cables emerge as a transformative solution. These specialized reeling cables represent a significant advancement in marine electrical systems, combining robust mechanical design with integrated fiber optic capabilities specifically engineered for the demanding applications found on cranes, winches, and material handling equipment throughout Singapore's maritime infrastructure.
Cable Structure and Technical Excellence
Advanced Conductor Design
The foundation of any high-performance marine cable lies in its conductor design, and R-(N)TSCGEWÖU + FO cables excel in this critical area through their use of flexible class 5 tinned or bare copper conductors manufactured according to IEC 60228 standards. This specification ensures that each conductor strand meets precise dimensional tolerances and electrical performance criteria essential for marine applications.
The choice between tinned and bare copper conductors depends on the specific application requirements. Tinned copper conductors offer superior corrosion resistance, making them ideal for applications where the cable might be exposed to moisture or salt spray. The tin coating acts as a protective barrier that prevents the formation of copper oxide, which can increase resistance and reduce conductor performance over time. This becomes particularly important in Singapore's tropical marine environment, where humidity levels regularly exceed 80% and salt-laden air is omnipresent.
The opposite-lay stranding configuration represents another crucial design element that distinguishes these cables from conventional alternatives. In this arrangement, successive layers of conductor strands are wound in alternating directions, creating a balanced structure that distributes mechanical stress more evenly throughout the conductor cross-section. This design choice becomes critical during high-speed reeling operations, where the cable experiences repeated bending and straightening cycles that can cause fatigue failure in poorly designed conductors.
To understand why opposite-lay stranding matters, consider what happens when a cable is subjected to torsional stress during reeling operations. In a conventionally stranded conductor, all layers wind in the same direction, creating a tendency for the conductor to either compress or expand under torsional load. This can lead to strand breakage, increased resistance, and ultimately cable failure. The opposite-lay configuration counteracts this tendency by creating internal forces that balance each other out, resulting in a more stable conductor geometry under dynamic loading conditions.
Insulation and Screening for Electrical Safety
The insulation system of R-(N)TSCGEWÖU + FO cables utilizes specially formulated EPDM (Ethylene Propylene Diene Monomer) rubber that provides exceptional performance in marine environments. EPDM rubber offers several advantages over traditional insulation materials, including superior resistance to ozone, UV radiation, and temperature extremes. In Singapore's equatorial climate, where UV exposure is intense year-round and temperatures can fluctuate dramatically between air-conditioned spaces and exposed deck areas, these properties become essential for long-term cable reliability.
The halogen-free and lead-free formulation of the EPDM insulation addresses critical safety concerns in marine applications. When exposed to fire, halogenated compounds can release toxic gases that pose severe health risks to personnel in enclosed spaces such as ship compartments or port control rooms. The absence of halogens means that if a fire does occur, the cable insulation will not contribute to the production of corrosive hydrogen halide gases that can damage equipment and threaten human safety.
The multi-layer semi-conductive screening system represents a sophisticated approach to managing electrical field distribution within the cable structure. This screening consists of carefully engineered layers of semi-conductive material that create a controlled electrical field gradient from the conductor to the cable sheath. Proper field control is essential for preventing partial discharge phenomena that can lead to insulation breakdown over time.
The screening system also serves another important function: it enables clean stripping during cable termination and splicing operations. The controlled electrical properties of the semi-conductive layers ensure that they can be removed cleanly without damaging the underlying insulation, which is crucial for maintaining the cable's electrical integrity when making connections.
Integrated Fiber Optic (FO) Modules
The integration of fiber optic modules within the cable structure represents one of the most significant technological advances in marine reeling cable design. These modules typically contain between 6 and 24 optical fibers, with options for different fiber types including OM2, OM3, and OS2 specifications to meet various data transmission requirements.
OM2 fibers are multimode fibers optimized for use with LED light sources and are suitable for shorter-distance applications with moderate bandwidth requirements. OM3 fibers represent a higher-performance multimode option that can support 10-gigabit Ethernet transmission over longer distances, making them ideal for modern port automation systems that require high-speed data communication. OS2 fibers are single-mode fibers capable of supporting extremely high bandwidth applications over very long distances, essential for offshore installations where communication links may span several kilometers.
The color-coding system used for individual fibers follows international standards, enabling technicians to quickly identify specific fibers during installation and maintenance operations. This becomes particularly important in complex marine installations where multiple cable runs may be present and proper fiber identification is critical for system functionality.
The gel-filled tube design provides essential protection against moisture ingress, which is a constant threat in marine environments. The gel compound creates a barrier that prevents water from traveling along the fiber length even if the outer cable sheath is damaged. This protection is especially crucial in Singapore's high-humidity environment, where condensation can occur readily within cable structures.
Mechanical Protection and Sheathing
The mechanical protection system of R-(N)TSCGEWÖU + FO cables begins with an inner sheath constructed from synthetic thermosetting compound designated as type 5GM3. This material specification indicates a compound specifically formulated to withstand the mechanical stresses associated with reeling operations while providing excellent resistance to abrasion and chemical exposure.
Thermosetting compounds differ from thermoplastic materials in that they undergo irreversible chemical changes during the curing process, creating cross-linked polymer networks that maintain their properties even under elevated temperatures. This characteristic makes them particularly suitable for marine applications where temperature cycling is common and material stability is essential.
The anti-adhesion graphite layer represents an innovative solution to a common problem in reeling cable applications. During winding and unwinding operations, cable layers can stick together due to pressure, temperature, and time effects. When the cable is subsequently unwound, this adhesion can cause damage to the sheath material or create uneven winding patterns that affect the cable's mechanical performance. The graphite layer acts as a dry lubricant that reduces friction between cable layers and prevents adhesion from occurring.
Performance in Harsh Marine Environments
Marine-Specific Mechanical Stresses
The mechanical performance requirements for marine reeling cables are among the most demanding in any industrial application. R-(N)TSCGEWÖU + FO cables are engineered to handle reeling speeds up to 180 meters per minute, which represents the upper end of performance requirements for modern port cranes and offshore handling equipment.
To appreciate the significance of this specification, consider that at 180 m/min, a cable experiences extremely rapid acceleration and deceleration forces during starting and stopping operations. The cable must maintain its structural integrity while transmitting full-rated power and providing uninterrupted data communication throughout these dynamic conditions. This requires careful coordination between the cable's mechanical design, electrical properties, and fiber optic elements.
The torsional flexibility specification of 100 degrees per meter addresses another critical aspect of marine reeling operations. Many marine applications involve equipment that must rotate or pivot while maintaining electrical and data connections. Container cranes, for example, must be able to rotate their booms while maintaining power and communication links to control systems. The 100°/m twist limit ensures that the cable can accommodate these rotational movements without damage to internal components.
This torsional capability is particularly important for automated port vehicles and robotic handling systems, where precise positioning requires continuous rotation of electrical connections. The cable's ability to handle this twisting motion without degradation ensures reliable operation of these sophisticated automated systems.
Environmental Resilience
The environmental challenges faced by marine cables in Singapore's tropical climate are multifaceted and severe. The wide operating temperature range of -40°C to +90°C might seem excessive for a tropical location, but it addresses the reality of modern marine operations where cables may be exposed to extreme air conditioning in control rooms, intense solar heating on exposed decks, and the thermal shock of moving between these environments.
The lower temperature limit of -40°C primarily addresses the needs of vessels operating in refrigerated cargo holds or specialized applications involving cryogenic materials. While Singapore's ambient temperature rarely drops below 25°C, the cable's cold-weather capability ensures it can be used on vessels that may operate in polar regions or handle ultra-low-temperature cargo.
The upper temperature limit of +90°C is more commonly encountered in Singapore's marine environment, where direct solar exposure on metal surfaces can create extreme localized heating. This temperature capability ensures that the cable maintains its electrical and mechanical properties even under the most severe thermal stress conditions.
Resistance to oil, UV radiation, and ozone represents another crucial aspect of environmental resilience. The oil resistance specification according to IEC 60811-404 ensures that the cable can withstand exposure to hydraulic fluids, lubricating oils, and fuel products commonly found in marine environments. This resistance is essential for maintaining cable integrity in machinery spaces where oil leaks are inevitable.
UV resistance according to UL 2556 standards protects the cable from degradation caused by Singapore's intense tropical sunlight. Ultraviolet radiation can cause polymer degradation that leads to cracking, discoloration, and ultimately failure of cable sheathing materials. The UV resistance specification ensures long-term reliability even under continuous exposure to tropical sunlight.
Ozone resistance per ISO 1431-1 addresses a less obvious but equally important environmental factor. Ozone is present in marine atmospheres due to the action of sunlight on salt spray and other atmospheric components. While ozone concentrations are typically low, prolonged exposure can cause cracking in susceptible polymer materials. The ozone resistance specification ensures that the cable sheathing maintains its protective properties over its intended service life.
The flame-retardant properties according to IEC 60332-1-2 represent a critical safety feature for marine applications. This specification ensures that the cable will not propagate flame if exposed to an ignition source, helping to prevent the spread of fires in marine environments where escape routes may be limited and fire suppression systems may be overwhelmed.
Applications in Singapore's Maritime Sector
Port Container Cranes (STS, RTG, RMG)

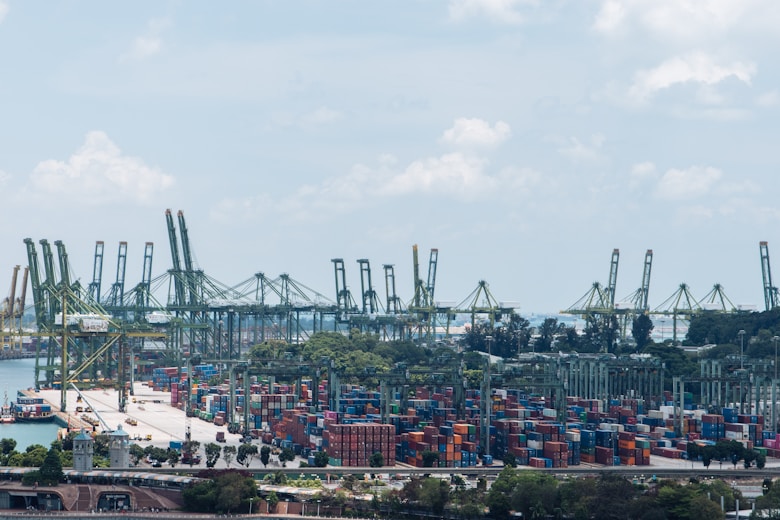

Ship-to-Shore (STS) cranes represent some of the most demanding applications for marine reeling cables. These massive structures must move hundreds of containers per shift while maintaining precise positioning control and continuous communication with port management systems. The R-(N)TSCGEWÖU + FO cable's ability to handle repetitive reeling operations while providing reliable power and data transmission makes it ideal for these applications.
Rubber-Tired Gantry (RTG) cranes present unique challenges due to their mobility and the need for flexible power connections that can accommodate the crane's movement throughout the container yard. The cable's torsional flexibility and resistance to environmental stresses ensure reliable operation even as the crane moves between different positions and orientations.
Rail-Mounted Gantry (RMG) cranes require cables that can handle the mechanical stresses of constant rail movement while maintaining electrical and data connections. The cable's advanced conductor design and mechanical protection system provide the durability needed for these demanding applications.
Offshore Supply Vessels (OSV) and Floating Production Units (FPU)
Offshore supply vessels present particularly challenging environments for reeling cables due to the dynamic nature of marine operations. These vessels must maintain position in open water while transferring power and data to offshore platforms, often in rough sea conditions that create significant mechanical stresses on cable systems.
Floating Production Units require reliable energy and signal links between mobile equipment and fixed installations. The cable's environmental resilience and mechanical performance ensure continuous operation even under the harsh conditions typical of offshore oil and gas operations.
Shipyards and Heavy Marine Handling
Singapore's shipbuilding industry requires flexible and robust cable solutions for modular machinery and reeling tools used in ship construction and repair operations. The cable's ability to handle repeated bending and straightening cycles makes it ideal for mobile welding equipment, lifting machinery, and other tools that must be repositioned frequently during shipbuilding operations.
The integrated fiber optic capability enables real-time monitoring of welding parameters, crane loads, and other critical factors that affect quality and safety in shipyard operations. This capability supports Singapore's efforts to modernize its shipbuilding industry through the adoption of Industry 4.0 technologies.
Explosion-Risk Zones in Port Petrochemical Areas
Singapore's ports handle significant quantities of petroleum products and chemicals, creating areas where explosion risks must be carefully managed. The halogen-free insulation of R-(N)TSCGEWÖU + FO cables minimizes toxic gas emissions during fire incidents, reducing the risk to personnel and equipment in these sensitive areas.
The cable's flame-retardant properties help prevent the spread of fires that could have catastrophic consequences in petrochemical handling areas. This safety feature is particularly important given Singapore's role as a major petroleum refining and distribution center.
Frequently Asked Questions
Q1: What challenges do Singapore ports face with conventional reeling cables?
Traditional cables often suffer from insulation cracking due to the combined effects of UV exposure, temperature cycling, and mechanical flexing. Data transmission interruptions occur when conventional cables cannot maintain signal integrity during reeling operations, leading to communication failures between mobile equipment and control systems. The reduced lifespan under high torsion and salt-laden air results in frequent cable replacements that increase maintenance costs and create operational disruptions.
The R-(N)TSCGEWÖU + FO cable addresses these challenges through its enhanced EPDM insulation that resists UV degradation and temperature extremes. The optimized lay length of conductor strands reduces mechanical stress concentration, while the integrated fiber optics maintain signal integrity even during dynamic reeling operations. This combination of features results in significantly extended cable life and reduced maintenance requirements.
Q2: Can these cables operate safely during Singapore's extreme humidity and sudden tropical downpours?
Singapore's tropical climate presents unique challenges with humidity levels that regularly exceed 80% and sudden intense rainfall that can deliver several inches of precipitation in a matter of hours. The cable's insulation and sheathing materials are specially formulated to handle these extreme conditions through the use of materials that do not absorb moisture and maintain their properties even when subjected to water immersion.
The gel-filled fiber optic tubes provide an additional layer of protection against moisture ingress, ensuring that data transmission capabilities remain intact even if the outer sheath is compromised. This protection is particularly important given Singapore's location at the convergence of major monsoon systems that can produce extremely intense rainfall.
Q3: How do the fiber-optic elements enhance port operations?
The integrated fiber optic modules enable real-time communication between moving cranes and control systems, supporting the implementation of automated container handling systems that can operate with minimal human intervention. This capability is essential for Singapore's vision of becoming a fully automated smart port that can handle increasing container volumes while maintaining operational efficiency.
Fault monitoring capabilities provided by the fiber optic elements allow port operators to detect potential equipment problems before they result in costly failures. Sensors connected through the fiber optic network can monitor crane loads, motor temperatures, and other critical parameters that affect equipment reliability and safety.
The high-bandwidth capability of the fiber optic elements supports the implementation of advanced port management systems that can optimize container movements, reduce energy consumption, and minimize environmental impact. This capability is particularly important for PSA Singapore's efforts to maintain its position as one of the world's most efficient container ports.
Q4: What is the recommended maintenance approach for such cables in a marine environment?
Regular inspection for sheath wear should focus on areas where the cable experiences the most mechanical stress, such as points where it enters and exits reeling drums and locations where it may contact other equipment during operation. Visual inspection can identify early signs of wear that might lead to more serious problems if not addressed promptly.
Reeling system alignment verification ensures that the cable follows the intended path during winding and unwinding operations. Misalignment can cause uneven wear patterns that reduce cable life and potentially lead to catastrophic failures. Proper alignment also ensures optimal performance of the integrated fiber optic elements by minimizing bending stress on the optical fibers.
Fiber optic continuity testing should be performed regularly to verify that data transmission capabilities remain intact. This testing can identify potential problems with individual fibers before they affect system operation, allowing for preventive maintenance rather than reactive repairs.
Preventive maintenance schedules should align with IEC standards and local port authority guidelines to ensure compliance with safety regulations while optimizing maintenance costs. The specific maintenance intervals will depend on the severity of the operating environment and the criticality of the application.
Q5: Are these cables compliant with Singapore's maritime safety standards?
The cables meet international standards including IEC 60092, which covers electrical installations on ships and offshore platforms. This standard ensures that the cables can be safely used in marine environments where fire and explosion risks require special consideration.
The halogen-free, flame-retardant properties of the cable insulation comply with Singapore's port safety protocols, which are among the most stringent in the world. These properties ensure that the cables do not contribute to toxic gas generation during fire incidents, protecting both personnel and equipment in enclosed spaces.
Additional compliance with local regulations ensures that the cables can be used throughout Singapore's maritime infrastructure without requiring special permits or exemptions. This compliance simplifies the procurement and installation process while ensuring that all safety requirements are met.
Conclusion
The R-(N)TSCGEWÖU + FO cables represent a significant advancement in marine reeling cable technology, offering a combination of flexibility, safety, and smart integration capabilities that address the unique challenges of Singapore's maritime environment. The cables' sophisticated design elements, from their advanced conductor configuration to their integrated fiber optic modules, work together to provide reliable performance under the demanding conditions found in modern port operations.
The role of high-performance reeling cables in supporting Singapore's vision for automated, sustainable, and safe port operations cannot be overstated. As the maritime industry continues to evolve toward greater automation and environmental responsibility, the infrastructure supporting these advances must be equally sophisticated and reliable. The R-(N)TSCGEWÖU + FO cables provide the foundation for these technological advances by ensuring that power transmission and data communication systems can operate reliably under the most challenging conditions.
Marine operators and engineers throughout Singapore's maritime sector should seriously consider adopting these advanced cable technologies to enhance their operational resilience. The initial investment in high-quality cables is quickly offset by reduced maintenance costs, improved operational reliability, and the enhanced capabilities that integrated fiber optic communication provides. As Singapore continues to strengthen its position as a global maritime hub, the infrastructure supporting this leadership must incorporate the most advanced technologies available, and R-(N)TSCGEWÖU + FO cables represent a crucial component of this technological foundation.
