How LIFT-2S Cables Support Safe and Efficient Maritime Lifting Operations

Introduction

The maritime industry operates in one of the most demanding environments on Earth, where equipment must withstand extreme weather conditions, corrosive salt air, and constant mechanical stress. Within this challenging context, electrical cables represent critical components that often determine the difference between smooth operations and catastrophic failures. Among the specialized cables designed for maritime applications, LIFT-2S cables have emerged as a sophisticated solution specifically engineered for self-supporting lifting applications in marine environments.

LIFT-2S cables represent a specialized category of electrical conductors designed to meet the unique demands of maritime hoisting and crane equipment. These cables combine electrical functionality with mechanical self-support capability, eliminating the need for separate support systems in vertical lifting applications. This dual functionality proves particularly valuable in space-constrained maritime environments where every component must serve multiple purposes efficiently.

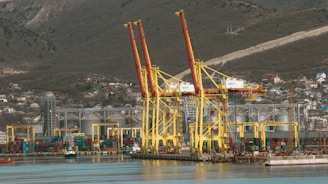

The importance of reliable cabling in maritime lifting operations cannot be overstated. Consider Singapore's bustling port operations, where container cranes handle millions of twenty-foot equivalent units annually. A single cable failure in such an environment can halt operations, potentially costing thousands of dollars per hour in lost productivity. Furthermore, cable failures in maritime lifting systems pose serious safety risks to personnel working in close proximity to heavy machinery and suspended loads.

Understanding the technical specifications and proper applications of specialized cables like LIFT-2S becomes essential for maritime engineers, port operators, and vessel designers who must balance operational efficiency with safety requirements. The selection of appropriate cabling directly impacts equipment reliability, maintenance costs, and overall operational safety in maritime environments.

Technical Features of LIFT-2S Cable

Construction Highlights

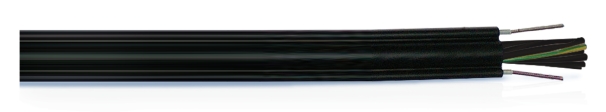

The foundation of LIFT-2S cable performance lies in its sophisticated multi-layer construction, where each component serves specific functions while contributing to overall system reliability. The innermost component consists of extra fine flexible copper conductors manufactured to IEC 60228 Class 5 specifications. This classification represents the finest level of conductor stranding available in international standards, where individual copper strands measure significantly smaller than those found in standard industrial cables.

The Class 5 stranding provides superior flexibility compared to conventional conductor designs, allowing the cable to withstand repeated bending cycles without experiencing conductor fatigue or breakage. This characteristic proves particularly important in dynamic lifting applications where cables must flex as loads move through their operational range. The increased surface area created by fine stranding also enhances current-carrying capacity and reduces electrical resistance, contributing to improved energy efficiency in lifting systems.

Surrounding the conductor, Cross-Linked Polyethylene (XLPE) insulation provides thermal stability and electrical safety across the cable's operational temperature range. XLPE represents an advanced thermosetting polymer that maintains its physical and electrical properties even when subjected to elevated temperatures. Unlike thermoplastic insulation materials that may soften or deform under heat, XLPE retains its dimensional stability and dielectric strength, ensuring consistent electrical performance throughout the cable's service life.

The outer protection system features a specially formulated black PVC sheath designed to provide mechanical protection and environmental resistance. The black coloration serves multiple purposes beyond aesthetics, incorporating carbon black additives that enhance UV resistance and provide protection against photodegradation when cables are exposed to sunlight during outdoor operations.

Perhaps the most distinctive feature of LIFT-2S cables lies in their integrated galvanized steel support wires, positioned on opposite sides of the cable structure. These support wires transform the cable from a simple electrical conductor into a self-supporting mechanical system capable of bearing its own weight plus additional tensile loads. The galvanized coating on these steel wires provides corrosion resistance essential for maritime applications, where exposure to salt spray and humid conditions represents constant challenges.

Electrical Characteristics

LIFT-2S cables operate at a rated working voltage of 300/500V, making them suitable for low-voltage control and power applications common in maritime lifting systems. This voltage rating provides adequate margin for typical crane control circuits while maintaining safety in wet maritime environments where ground fault protection becomes critical.

The test voltage specification of 1000 VAC for one minute demonstrates the cable's electrical integrity under stress conditions. This high-potential test, conducted during manufacturing, ensures that insulation systems can withstand voltage surges and transients that may occur during normal operations. Such electrical stress testing becomes particularly important in maritime environments where lightning strikes and electrical storms can induce voltage spikes in electrical systems.

Insulation resistance specifications of at least 20 megohms per kilometer indicate the cable's ability to prevent electrical leakage between conductors and to ground. This high insulation resistance ensures minimal power loss and maintains electrical safety even in humid maritime conditions where moisture intrusion might compromise inferior cable designs. Regular insulation resistance testing during maintenance procedures allows operators to monitor cable condition and predict potential failures before they occur.

Mechanical and Environmental Durability

The mechanical specifications of LIFT-2S cables reflect their design for demanding maritime applications. The high tensile load capacity exceeding 1000N enables these cables to support their own weight in vertical installations up to several hundred meters in length. This self-supporting capability eliminates the need for separate support cables or complex cable management systems, simplifying installation and reducing potential failure points.

Temperature resistance represents another critical performance parameter, with LIFT-2S cables specified for operation from -30°C to +70°C in moving applications and -40°C to +70°C when installed in fixed positions. These temperature ranges accommodate the extreme conditions encountered in maritime environments, from Arctic shipping routes where equipment may freeze during winter operations to tropical ports where equipment surfaces can reach elevated temperatures under direct sunlight.

The distinction between moving and fixed temperature ratings reflects the additional thermal stress generated by flexing during operation. When cables bend repeatedly, internal friction and conductor movement generate additional heat that must be accommodated within the design parameters. The ten-degree reduction in minimum operating temperature for moving applications provides safety margin for dynamic installations.

UV resistance capabilities enable LIFT-2S cables to withstand prolonged exposure to sunlight without degradation of the outer sheath material. This characteristic proves essential for crane applications on open vessel decks or port facilities where cables may experience direct solar radiation for extended periods. The specialized PVC formulation includes UV stabilizers that prevent polymer chain breakdown and maintain mechanical properties over extended exposure periods.

Flexibility performance, characterized by a minimum bending radius of ten times the cable diameter, allows for installation in constrained spaces while maintaining electrical and mechanical integrity. This bending radius specification ensures that cables can navigate around pulleys, through cable guides, and around structural obstacles without suffering internal damage or reduced service life.

Application Scenarios in Maritime and Port Environments

Maritime lifting operations encompass diverse applications ranging from small winches on fishing vessels to massive container cranes in major port facilities. LIFT-2S cables find application across this broad spectrum, with their self-supporting characteristics making them particularly suitable for vertical installations where conventional cables would require additional support infrastructure.

Indoor crane and hoisting systems on vessels and offshore platforms represent primary applications for LIFT-2S cables. Consider the cargo handling systems aboard large container vessels operating in Singapore's shipping lanes. These ships feature sophisticated crane systems for loading and unloading containers at ports lacking adequate shore-based handling equipment. The confined spaces within vessel holds and the need for reliable cable systems that can operate without external support make LIFT-2S cables ideal for such applications.

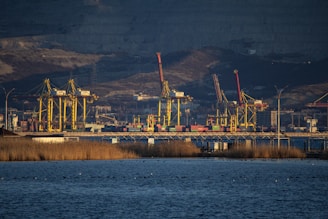

Control converters for lifting devices in container terminals demonstrate another significant application area. Singapore's Pasir Panjang Terminal and Tanjong Pagar Terminal utilize automated container handling systems where LIFT-2S cables provide power and control signals to variable frequency drives controlling crane motors. The ability of these cables to support the mselves in vertical runs eliminates the need for complex cable management systems that might interfere with automated container handling operations.

High-bay storage automation on large ships and at shipyards benefits from the unique characteristics of LIFT-2S cables. Modern container vessels and bulk carriers feature automated storage and retrieval systems that require reliable electrical connections throughout their operational range. The self-supporting nature of LIFT-2S cables allows these systems to operate without cable management equipment that might interfere with cargo operations or require additional maintenance.

Vertical shaft applications in cargo lifts represent specialized uses where LIFT-2S cables excel. Passenger and cargo elevators aboard cruise ships and large commercial vessels require cables that can support themselves across multiple decks while providing reliable electrical connections. The galvanized steel support wires in LIFT-2S cables provide the mechanical strength necessary for such applications while maintaining electrical performance throughout the operational range.

Cableways and overhead crane equipment exposed to harsh environments benefit from the environmental resistance built into LIFT-2S cable designs. Shipyard cranes operating in Singapore's tropical climate must withstand daily temperature cycles, high humidity, and occasional exposure to salt spray from nearby waters. The UV resistance and mechanical durability of LIFT-2S cables make them suitable for such demanding applications where cable replacement represents significant operational disruption.

The integration of smart port technologies in facilities like Singapore's Tuas Port creates additional opportunities for specialized cable applications. Automated guided vehicles, robotic container handling systems, and intelligent crane operations all require reliable electrical connections that can adapt to dynamic operational requirements. LIFT-2S cables provide the flexibility and reliability necessary for these advanced systems while reducing infrastructure complexity through their self-supporting characteristics.

Frequently Asked Questions

Can LIFT-2S cables endure the harsh temperature fluctuations common on offshore platforms?

Temperature fluctuations represent one of the most challenging aspects of offshore platform operations, where equipment may experience rapid changes from extreme cold during winter storms to elevated temperatures from nearby equipment or direct sunlight. LIFT-2S cables address these challenges through their wide temperature operating range from -30°C to +70°C for moving applications and -40°C to +70°C for fixed installations. The XLPE insulation maintains its electrical and mechanical properties across this entire temperature range, while the specialized PVC outer sheath remains flexible even at low temperatures. This temperature stability ensures that cables continue operating reliably during seasonal changes and weather events that might disable inferior cable designs.

How do the steel support wires improve lifting system reliability?

The integrated galvanized steel support wires represent a fundamental design innovation that transforms electrical cables into mechanical support systems. These wires, positioned on opposite sides of the cable structure, provide tensile strength exceeding 1000N while distributing mechanical loads away from the electrical conductors. This separation of electrical and mechanical functions prevents conductor damage from tensile stress that could otherwise lead to electrical failures or reduced service life. The galvanized coating on the steel wires provides corrosion resistance essential for maritime applications, ensuring that mechanical support capability remains intact throughout the cable's operational life. By eliminating the need for separate support cables or complex cable management systems, the integrated support wires reduce potential failure points and simplify maintenance procedures.

Is the cable suitable for areas exposed to direct sunlight and salt spray?

Direct exposure to sunlight and salt spray represents common challenges in maritime environments that can rapidly degrade unsuitable cable materials. LIFT-2S cables incorporate UV-resistant PVC outer sheaths specifically formulated to withstand prolonged solar radiation without degradation. The black coloration includes carbon black additives that absorb UV radiation and prevent polymer chain breakdown that might otherwise lead to cracking or mechanical failure. However, while the cable design provides inherent resistance to UV exposure, salt spray resistance requires additional consideration depending on the specific installation environment. For installations where direct salt spray exposure occurs regularly, supplementary protective measures such as periodic washing or additional protective coatings may be necessary to ensure optimal service life.

What happens if the cable is subjected to frequent bending during lifting operations?

Frequent bending during lifting operations creates internal stress that can fatigue conductors and damage insulation in poorly designed cables. LIFT-2S cables address this challenge through their Class 5 stranded copper conductors, which feature significantly finer wire strands than conventional cable designs. These fine strands distribute mechanical stress more evenly during bending, reducing the likelihood of individual wire breakage that could increase electrical resistance or create hot spots. The flexible XLPE insulation and PVC sheath materials maintain their properties through repeated bending cycles, while the minimum bending radius specification of ten times the cable diameter ensures that installations remain within safe mechanical limits. Regular inspection of cables in dynamic applications allows operators to monitor for signs of wear and schedule replacement before failures occur.

Can this cable be used for outdoor cranes at ports?

While LIFT-2S cables are primarily designed for indoor applications, their UV resistance and mechanical durability make them suitable for certain outdoor installations in port environments. The key consideration lies in the level of environmental exposure and the availability of protective measures. For outdoor cranes operating in covered areas or those with limited exposure to direct weather, LIFT-2S cables can provide reliable service. However, for installations with continuous exposure to salt spray, driving rain, or extreme weather conditions, cables specifically designed for harsh outdoor marine environments may be more appropriate. Port operators in Singapore's tropical climate should consider factors such as monsoon seasons, high humidity levels, and potential salt spray exposure when evaluating cable selection for outdoor applications.

How does the LIFT-2S compare with flat or festoon cables used on shipyard cranes?

The comparison between LIFT-2S and flat festoon cables highlights fundamental differences in design philosophy and application requirements. Flat festoon cables are optimized for lateral travel applications where cables move horizontally along crane bridges or trolley systems. These cables feature flat profiles that reduce wind resistance and provide stable orientation during movement. In contrast, LIFT-2S cables utilize round construction optimized for vertical suspension and self-support applications. The integrated steel support wires eliminate the need for separate cable support systems required with festoon cables in vertical applications. For shipyard cranes in Singapore's facilities, the choice between these cable types depends on specific movement patterns and installation requirements. Horizontal traveling cranes typically benefit from festoon cable systems, while vertical lifting applications favor the self-supporting characteristics of LIFT-2S cables.

Additional Technical Considerations

Understanding the broader context of maritime cable applications requires consideration of environmental factors specific to different operational zones. Singapore's position as a major shipping hub creates unique challenges for cable systems, including high humidity levels, frequent tropical storms, and continuous exposure to salt-laden air. These conditions accelerate corrosion processes and can compromise electrical connections in poorly designed systems.

The electromagnetic environment aboard modern vessels adds another layer of complexity to cable selection and installation. Variable frequency drives, radar systems, and communication equipment create electromagnetic interference that can affect cable performance if proper shielding and grounding practices are not followed. LIFT-2S cables must be installed with appropriate attention to electromagnetic compatibility to ensure reliable operation in these complex electrical environments.

Cable management systems play crucial roles in maximizing the service life of LIFT-2S cables. Proper installation techniques, including attention to minimum bending radii, secure terminations, and appropriate strain relief, directly impact long-term reliability. Regular inspection schedules should include visual examination of cable conditions, electrical testing of insulation resistance, and mechanical assessment of support wire integrity.

Conclusion

LIFT-2S cables represent sophisticated engineering solutions designed to meet the demanding requirements of maritime lifting operations. Their unique combination of electrical performance and mechanical self-support capability addresses specific challenges encountered in marine environments while providing operational advantages that justify their specialized design. The integration of fine-stranded copper conductors, XLPE insulation, UV-resistant outer sheaths, and galvanized steel support wires creates cable systems capable of reliable operation across wide temperature ranges and in challenging environmental conditions.

The emphasis on choosing appropriate cables for specific operating environments cannot be overstated in maritime applications where equipment failures can have serious safety and economic consequences. LIFT-2S cables excel in vertical lifting applications where self-support capability eliminates infrastructure complexity, but their successful application requires careful consideration of environmental exposure levels, mechanical requirements, and electrical specifications.

Professional installation and regular maintenance remain critical factors in achieving optimal performance from any cable system in maritime environments. The unique challenges of salt spray, temperature fluctuations, mechanical stress, and electromagnetic interference require specialized knowledge and appropriate maintenance procedures to ensure reliable long-term operation. As maritime operations continue evolving toward increased automation and smart port technologies, the importance of reliable cable systems will only continue growing, making proper cable selection and maintenance essential components of safe and efficient maritime operations.
