How Does the (N)SHTÖU – FO (LWL) Cable Revolutionize Port Operations with Integrated Power and Data Transmission?
Discover how the (N)SHTÖU – FO (LWL) hybrid reeling cable combines power delivery and fiber optic communication in a single robust structure, specifically engineered for heavy-duty port crane operations and industrial lifting equipment.
BLOGS
6/16/202510 min read
Introduction: The Engineering Marvel Behind Modern Port Operations
In the demanding world of port and terminal operations, where massive container cranes handle thousands of tons daily, traditional separate power and communication systems create complexity, maintenance challenges, and potential points of failure. The (N)SHTÖU – FO (LWL) represents a breakthrough in cable engineering, combining power transmission and optical fiber communication in a single, robust structure designed specifically for heavy-duty applications.
This specialized reeling and control cable addresses a fundamental challenge in modern port infrastructure: how to deliver both electrical power and high-speed data communication through a single, flexible medium that can withstand the extreme mechanical stresses, environmental conditions, and continuous movement demands of industrial lifting equipment. The cable's unique hybrid design eliminates the need for separate power and communication lines, simplifying installation, reducing maintenance requirements, and improving overall system reliability.
Understanding this cable's construction and capabilities requires examining how engineers have solved the complex challenge of integrating delicate optical fibers with robust power conductors in a structure that must perform reliably under constant motion, torsional stress, and harsh environmental conditions. The result is a cable that not only meets but exceeds the demanding requirements of modern automated port facilities.
Applications: Where Does the (N)SHTÖU – FO (LWL) Excel in Industrial Operations?

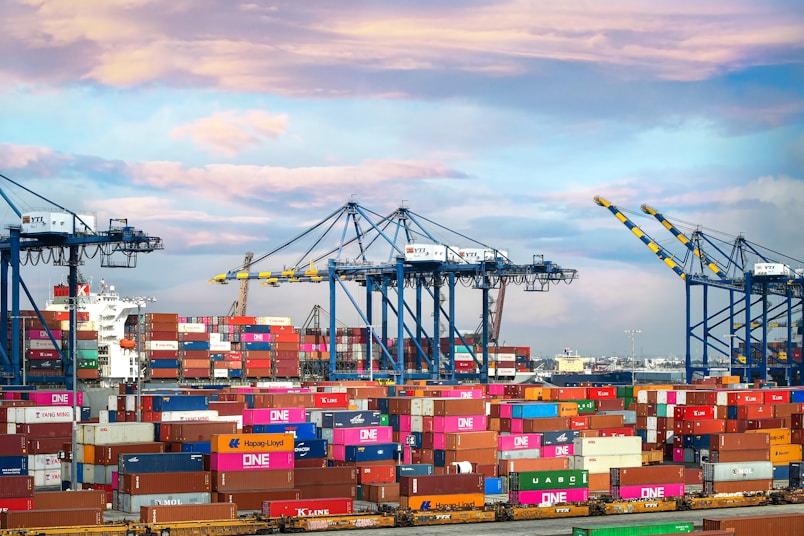

The primary application for the (N)SHTÖU – FO (LWL) cable lies in Electrified Rubber Tyred Gantry Cranes (ERTGs), the workhorses of modern container terminals. These massive machines, capable of lifting and precisely positioning containers weighing up to 65 tons, require both substantial electrical power for their lifting motors and high-speed data communication for automated positioning systems, load monitoring, and integration with terminal management systems.
In ERTG applications, the cable must perform under extreme conditions. As the crane moves along the container yard, the cable experiences continuous reeling and unreeling cycles, often at speeds reaching 120 meters per minute during gantry operations. The combination of heavy electrical loads, constant mechanical movement, and the need for uninterrupted data communication makes this one of the most demanding cable applications in industrial settings.

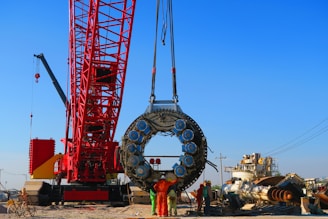

Beyond crane operations, the cable finds extensive use in various lifting and material handling applications. Hoisting plants benefit from the cable's ability to provide both power for lifting motors and communication for load monitoring systems, safety interlocks, and remote control functions. Heavy mechanical loaders in ports, steel mills, and manufacturing facilities utilize the cable's robust construction and integrated communication capabilities for precise load positioning and automated operation.
The cable's versatility extends to festoon systems and drag chain applications throughout port and terminal facilities. In these installations, the cable must traverse complex paths while maintaining electrical continuity and optical signal integrity. The robust outer sheath provides excellent resistance to abrasion, oil contamination, and chemical exposure common in industrial environments.
Container handling equipment beyond cranes also benefits from this technology. Reach stackers, container handlers, and automated guided vehicles increasingly rely on integrated power and communication systems for efficient operation. The (N)SHTÖU – FO (LWL) cable enables these machines to operate with greater precision while reducing the complexity of their electrical and communication systems.

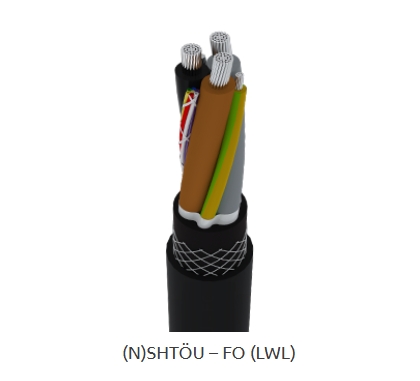

Technical Architecture: What Makes This Cable Engineering Unique?
The conductor system forms the foundation of the cable's electrical performance. Class 5 stranded copper conductors provide the flexibility essential for continuous movement applications while maintaining excellent electrical conductivity. The electrolytic annealed copper offers superior performance, and the option for tinned conductors provides enhanced corrosion resistance in marine environments. This stranding class, defined by international standards, ensures that individual wire strands can flex repeatedly without work hardening or breakage.
The insulation system represents a critical engineering decision. HEPR (Hard Ethylene Propylene Rubber) based elastomer compound, meeting minimum 3GI3 quality standards, provides exceptional flexibility while maintaining electrical integrity at temperatures up to 90°C. This material choice reflects the need to balance electrical performance, mechanical flexibility, and thermal resistance in a single compound.
Core identification follows a logical color-coding system that simplifies installation and maintenance. Light-colored insulation with black numbering provides clear identification for power and control conductors, while the green-yellow earth conductor ensures immediate recognition for safety purposes. This standardized approach reduces installation errors and speeds troubleshooting procedures.
The optical fiber integration represents perhaps the most sophisticated aspect of the cable's design. Available in single-mode (9 μm core) and multimode (50 μm or 62.5 μm core) configurations, the fibers accommodate various communication requirements from high-bandwidth data transmission to sensor networks. The 125 μm cladding diameter and 250 μm coating diameter follow international standards while providing protection for the delicate glass fibers.
Fiber protection utilizes a filled tube construction made from ETFE (Ethylene Tetrafluoroethylene), chosen for its exceptional chemical resistance and mechanical properties. The filling compound prevents water ingress and provides cushioning for the optical fibers during cable movement. This tube construction allows up to 24 individual fibers while maintaining the cable's flexibility and resistance to crushing forces.
The lay-up configuration optimizes both electrical and mechanical performance. Three main power conductors are positioned with two earth cores and the fiber optic element arranged in the outer interstices. This geometry balances electrical characteristics while providing mechanical stability during bending and twisting operations.
Sheath construction employs a multi-layer approach addressing different performance requirements. The inner sheath uses a special elastomer compound superior to GM1b standards, providing electrical insulation and mechanical protection for the conductor assembly. The antitorsion textile braid reinforcement prevents the cable from twisting under rotational loads, crucial for reeling applications where the cable experiences continuous rotation.
The outer sheath represents the cable's first line of defense against environmental hazards. The special rubber-based heavy-duty compound provides resistance to oil, chemicals, abrasion, and flame exposure while maintaining flexibility across the operating temperature range. This compound meets 5GM3/5GM5 standards for abrasion and notch resistance, ensuring long service life in demanding applications.




Performance Specifications: Why Do These Ratings Matter for Reliable Operation?
The voltage ratings reflect the cable's design for medium-voltage applications common in industrial lifting equipment. The rated voltage of 0.6/1 kV indicates the cable's continuous operating capability, while maximum AC voltage ratings of 0.7/1.2 kV and DC voltage ratings of 0.9/1.8 kV provide operational margins for varying load conditions and system configurations.
Temperature performance specifications address the wide range of conditions encountered in port and industrial applications. The conductor operating temperature of 90°C maximum ensures reliable power transmission under full load conditions, while the short-circuit temperature rating of 250°C provides safety margins during fault conditions. The fixed installation temperature range of -40°C to +80°C accommodates extreme climate conditions, while the mobile application range of -25°C to +80°C recognizes the thermal benefits of cable movement and heat dissipation.
Mechanical performance specifications directly address the demanding requirements of reeling applications. The maximum tensile load rating of 20 N/mm² ensures the cable can support its own weight during vertical installations while providing margin for dynamic loading during operation. This specification becomes critical in applications where cables may span significant distances or experience shock loading during equipment operation.
Speed ratings reflect the cable's capability in high-performance applications. Horizontal festoon speeds up to 180 meters per minute accommodate rapid material handling operations, while gantry speeds up to 120 meters per minute match the operating characteristics of modern container cranes. These specifications ensure that cable electrical and mechanical performance remains stable even during rapid equipment movement.
The minimum bending radius specification, referenced to VDE 0298-3 Table 3, provides installation guidance that prevents damage to conductors or optical fibers. This specification becomes particularly important in festoon systems and drag chain applications where the cable must navigate tight curves repeatedly without degradation.
Current carrying capacity calculations follow VDE 0298-4 standards, ensuring that conductor sizing matches application requirements while considering the effects of movement, bundling, and ambient temperature conditions. These calculations account for the thermal effects of both electrical heating and mechanical movement, providing reliable current ratings for various installation configurations.
Standards Compliance: How Does Certification Ensure Reliable Performance?
The cable's construction follows DIN VDE 0250-814 standards, specifically addressing reeling cables for mobile applications. This standard provides detailed requirements for conductor construction, insulation materials, sheath compounds, and mechanical performance characteristics essential for reliable operation in demanding applications.
Electrical testing protocols follow comprehensive DIN VDE 0472 series standards covering voltage withstand, insulation resistance, and conductor resistance measurements. These tests verify that the cable meets electrical performance requirements under both normal and stress conditions, ensuring reliable power transmission throughout the cable's service life.
Non-electrical testing addresses the mechanical and environmental performance characteristics crucial for industrial applications. DIN VDE 0472 standards cover tensile strength, elongation, abrasion resistance, and chemical compatibility testing that validates the cable's ability to withstand the harsh conditions encountered in port and terminal operations.
Fire performance testing follows multiple international standards including DIN VDE 0472-803/804, VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1. These comprehensive tests ensure that the cable's flame retardant properties meet safety requirements for installation in industrial facilities where fire prevention is critical.
Oil resistance testing per HD/EN/IEC 60811-2-1 and DIN VDE 0473-811-2-1 standards validates the cable's performance in environments where hydraulic fluids, lubricants, and other petroleum products are present. This testing is particularly relevant for port applications where equipment hydraulic systems and fuel handling operations create potential contamination sources.
The multi-standard approach to testing and certification ensures that the cable meets international requirements for safety, performance, and reliability. This comprehensive certification provides confidence for equipment manufacturers, system integrators, and end users that the cable will perform reliably in demanding applications.
Addressing Common Application Concerns Through Advanced Engineering
The integration of power and optical fibers in a single cable structure addresses fundamental challenges in modern industrial automation. Traditional separate systems require multiple cable runs, increasing installation complexity, maintenance requirements, and potential failure points. The unified approach simplifies system architecture while improving reliability through reduced connection points and simplified routing.
Mechanical stress resistance results from careful attention to materials selection and construction techniques. The stranded copper conductors provide flexibility essential for continuous movement, while the special elastomer compounds maintain insulation integrity under repeated flexing. The textile braid reinforcement distributes torsional loads across the cable structure, preventing localized stress concentrations that could lead to failure.
Optical communication reliability under harsh conditions requires sophisticated protection strategies. The ETFE tube construction provides excellent chemical resistance and mechanical protection for the delicate glass fibers. The filled tube design prevents water ingress and provides cushioning during cable movement. The robust outer sheath protects against abrasion, impact, and environmental contamination that could affect optical performance.
Environmental protection extends beyond basic weather resistance to address the specific challenges of industrial applications. Oil resistance prevents degradation from hydraulic fluid exposure common in lifting equipment. Chemical resistance protects against the variety of substances encountered in port operations, from container cleaning chemicals to fuel spills. UV resistance ensures long-term performance in outdoor installations.
Temperature performance across the specified range requires materials that maintain their properties under both extreme cold and heat conditions. The elastomer compounds retain flexibility at low temperatures while maintaining electrical properties at elevated temperatures. This performance ensures reliable operation regardless of climate conditions or equipment operating loads.
The Future of Integrated Cable Technology in Industrial Applications
The (N)SHTÖU – FO (LWL) cable represents more than just a technical solution to current challenges; it embodies the evolution toward more integrated, efficient industrial systems. As port operations become increasingly automated and data-driven, the need for reliable, high-bandwidth communication integrated with robust power delivery will only grow.
Modern container terminals are transforming into highly automated facilities where precise coordination between multiple systems is essential for efficient operation. Automated guided vehicles, robotic container handling systems, and intelligent crane management systems all require the combination of reliable power delivery and high-speed data communication that this cable provides. The ability to deliver both through a single, robust cable simplifies system design while improving reliability.
The cable's design philosophy of integrating multiple functions in a single, robust package reflects broader trends in industrial engineering toward simplified, more reliable systems. This approach reduces the total cost of ownership through simplified installation, reduced maintenance requirements, and improved system reliability. The comprehensive standards compliance ensures that the cable meets current safety and performance requirements while providing a foundation for future system upgrades.
For engineers and system designers, the (N)SHTÖU – FO (LWL) cable offers a proven solution to the complex challenges of modern port and industrial automation. Its combination of robust power delivery, reliable optical communication, and proven performance under demanding conditions makes it an essential component in the infrastructure supporting global commerce.
The continuing evolution of port and terminal operations toward greater automation, higher throughput, and improved efficiency creates growing demand for infrastructure components that can reliably support these advanced systems. The (N)SHTÖU – FO (LWL) cable provides the foundation for these developments, ensuring that the critical connection between power and data remains reliable under the most demanding conditions.
Conclusion: Engineering Excellence Meets Operational Demands
The (N)SHTÖU – FO (LWL) cable represents a sophisticated engineering solution to the complex challenges of modern port and industrial operations. By successfully integrating robust power transmission with reliable optical fiber communication in a single, flexible cable structure, it addresses fundamental infrastructure needs while simplifying system design and improving operational reliability.
The cable's comprehensive design approach, from the carefully selected conductor materials to the robust multi-layer sheath construction, demonstrates how proper engineering can meet the seemingly contradictory requirements of mechanical robustness and optical precision. The extensive standards compliance and testing protocols provide confidence that the cable will perform reliably throughout its service life, even under the most demanding conditions.
For port operators, equipment manufacturers, and system integrators, the (N)SHTÖU – FO (LWL) cable offers a proven solution that enables the advanced automation and communication systems essential for competitive operation in today's global marketplace. Its combination of technical excellence and operational reliability makes it an indispensable component in the infrastructure supporting modern industrial operations.
As industrial facilities continue to evolve toward greater automation, efficiency, and integration, cables like the (N)SHTÖU – FO (LWL) will play an increasingly critical role in enabling these advances. The successful integration of power and communication in a single, robust package points the way toward more sophisticated, reliable industrial systems that can meet the growing demands of global commerce while maintaining the highest standards of safety and reliability.
The engineering achievement represented by this cable extends beyond its immediate technical specifications to demonstrate how careful attention to materials science, construction techniques, and application requirements can produce solutions that exceed performance expectations while simplifying system complexity. This approach to engineering excellence provides a model for developing the advanced infrastructure components needed to support the continued evolution of industrial automation and global commerce.
