How Can ÜNFLEX PUR – HF Cables Enhance Reliability and Performance in Marine and Port Applications?

Discover how ÜNFLEX PUR – HF flexible control and power cables enhance reliability and performance in marine and port applications. Designed with durable polyurethane sheathing, stranded copper conductors, and resistance to oil, water, torsion, and chemicals — perfect for cranes, ships, and offshore equipment.

BLOGS

6/17/202514 min read

aerial view of city buildings near sea during daytime
aerial view of city buildings near sea during daytime

Understanding the Foundation of Marine Cable Excellence

When engineers and procurement specialists evaluate power and control cables for marine applications, they face a fundamental challenge that extends far beyond simple electrical connectivity. The maritime environment presents a unique combination of mechanical stress, chemical exposure, temperature extremes, and constant motion that can devastate conventional cables within months of installation. This reality has driven the development of specialized solutions like the ÜNFLEX PUR – HF, a cable engineered specifically to thrive where others fail.

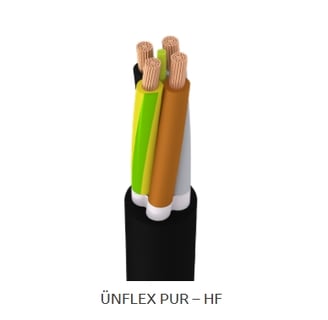

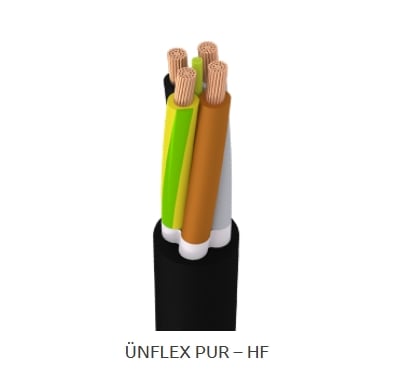

The ÜNFLEX PUR – HF represents a sophisticated approach to marine cable design, combining halogen-free polyurethane construction with Class 5 copper conductors to deliver reliability in the most demanding applications. For purchasing managers overseeing port equipment installations, marine engineers designing deck machinery systems, and technical specialists responsible for crane operations, understanding the engineering principles behind this cable becomes crucial for making informed decisions that impact both operational efficiency and long-term maintenance costs.

The maritime industry's shift toward more sophisticated automation and control systems has intensified the demand for cables that can maintain electrical integrity while enduring the mechanical punishment inherent in marine operations. Traditional cable designs often compromise between flexibility and durability, forcing engineers to accept either reduced mechanical performance or limited electrical capabilities. The ÜNFLEX PUR – HF eliminates this compromise through its carefully engineered construction that addresses each aspect of marine cable performance systematically.

Critical Application Scenarios in Marine Operations

Festoon Systems: The Backbone of Port Crane Operations

Festoon applications represent one of the most challenging environments for any power and control cable. In port operations, overhead cranes move continuously along rails while maintaining electrical connections through suspended cable systems that must flex, bend, and support their own weight while carrying both power and control signals. The ÜNFLEX PUR – HF excels in these applications because its polyurethane outer sheath provides exceptional resistance to abrasion and fatigue while maintaining flexibility across temperature ranges commonly encountered in port environments.

Consider the operational demands placed on a container crane's festoon system. The cable must support its own weight while spanning distances of 30 meters or more, enduring constant acceleration and deceleration forces as the crane moves along its rails. Simultaneously, it must maintain precise control signal transmission for positioning systems while carrying significant power loads for hoist motors and lighting systems. The Class 5 stranded copper conductors in the ÜNFLEX PUR – HF maintain electrical continuity even under these dynamic conditions, while the central textile strength member distributes mechanical loads to prevent conductor stress.

The halogen-free construction becomes particularly important in port applications where fire safety regulations are stringent. Should a fire occur, traditional PVC-insulated cables can release toxic hydrogen chloride gas, creating hazardous conditions for personnel evacuation. The polyester insulation compound in the ÜNFLEX PUR – HF eliminates this risk while maintaining superior electrical properties, making compliance with maritime fire safety standards more achievable.

Chain Applications: Precision in Automated Material Handling

Power chain applications, commonly found in automated stacking cranes and ship-to-shore equipment, subject cables to highly repetitive bending cycles that can exceed millions of flexing operations over the cable's service life. The ÜNFLEX PUR – HF's design specifically addresses these demands through its optimized bending radius specifications and torsion resistance capabilities.

In power chain applications, cables experience a unique stress pattern where they transition from straight runs to controlled radius bends repeatedly. This cyclical stress can cause conductor fatigue in cables not specifically designed for such service. The fine-stranded Class 5 copper conductors in the ÜNFLEX PUR – HF distribute stress across many individual wire elements, reducing the likelihood of conductor breakage even after millions of flex cycles.

The polyurethane outer sheath proves essential in chain applications because it maintains its properties across the temperature range encountered in marine environments. Unlike PVC materials that become rigid in cold conditions and soft in heat, polyurethane maintains consistent flexibility from -40°C to +80°C, ensuring reliable performance whether the equipment operates in Arctic shipping lanes or tropical ports.

Drum Reeling Applications: Managing Complex Mechanical Forces

Drum reeling systems present perhaps the most complex mechanical environment for any cable. As equipment extends and retracts booms, winches, or positioning systems, cables must wind and unwind on drums while maintaining electrical integrity and resisting the torsional forces inherent in the reeling process. The ÜNFLEX PUR – HF's ability to handle ±25° of torsion per meter makes it particularly suitable for these applications.

Port equipment such as mobile harbor cranes and ship unloaders frequently employ drum reeling systems to manage power and control cables during operation. The cable must not only bend around the drum radius but also resist the tendency to twist as layers build up during winding. The concentric stranding of cores around a central textile strength member in the ÜNFLEX PUR – HF helps maintain cable geometry under these complex stresses, preventing the core displacement that can lead to electrical failures.

The tensile loading capability of 15 N/mm² becomes critical in drum applications where the cable's own weight and operational forces create significant tension. This specification ensures that the cable can support its own weight during extension while maintaining structural integrity under the additional loads imposed by acceleration and deceleration of the equipment.

Engineering Excellence in Construction and Design

Conductor Technology: The Foundation of Electrical Performance

The choice of electrolytic, stranded, plain annealed copper conductors conforming to Class 5 of IEC 60228 represents a careful balance between electrical performance and mechanical flexibility. Class 5 conductors consist of many fine copper strands that provide the flexibility necessary for dynamic applications while maintaining the cross-sectional area needed for current-carrying capacity.

Understanding conductor classification helps explain why this choice is optimal for marine applications. Class 1 conductors are solid wires suitable only for fixed installations, while Class 2 conductors have limited stranding that provides minimal flexibility. Classes 3 and 4 offer intermediate flexibility but may not withstand the millions of flex cycles required in marine applications. Class 5 conductors achieve maximum flexibility through fine stranding while maintaining structural integrity necessary for power transmission.

The plain annealed copper construction ensures optimal conductivity while providing the ductility needed to withstand repeated bending without work hardening. This metallurgical consideration becomes crucial in marine applications where temperature cycling can affect conductor properties over time. The annealing process removes internal stresses in the copper that could lead to brittleness and eventual conductor failure.

Insulation System: Balancing Performance and Safety

The halogen-free polyester compound used for conductor insulation represents an advanced approach to electrical insulation that addresses both performance and safety requirements. Traditional PVC insulation, while cost-effective, contains chlorine that forms toxic hydrogen chloride gas during combustion. The polyester compound eliminates this hazard while providing superior electrical properties including higher dielectric strength and better thermal stability.

The dielectric properties of the polyester insulation become particularly important in marine environments where moisture ingress can compromise electrical performance. The compound's resistance to hydrolysis ensures that even in high-humidity conditions, the insulation maintains its electrical properties over the cable's service life. This characteristic proves essential in applications where cable replacement would require significant equipment downtime and associated costs.

Understanding how insulation thickness relates to voltage rating helps explain the cable's 0.6/1 kV rating. The insulation thickness must provide adequate dielectric strength while minimizing overall cable diameter for flexibility. The polyester compound's superior electrical properties allow for thinner insulation walls compared to PVC while maintaining equivalent electrical performance, contributing to the cable's overall flexibility and bending characteristics.

Core Identification and Organization

The systematic approach to core identification in the ÜNFLEX PUR – HF reflects practical considerations for installation and maintenance personnel. Cables with up to five cores use color coding following international standards, providing immediate visual identification during installation and troubleshooting. For cables with six or more cores, black conductors with white number markings ensure clear identification while maintaining cost-effectiveness in manufacturing.

This identification system becomes crucial in marine applications where maintenance often occurs under challenging conditions with limited lighting and restricted access. Clear core identification reduces installation time and minimizes the potential for wiring errors that could damage expensive equipment or create safety hazards. The durability of the marking system under marine conditions ensures that identification remains legible throughout the cable's service life.

The concentric stranding of cores around a central textile strength member serves multiple purposes beyond simple organization. This construction distributes mechanical loads away from individual conductors, preventing localized stress concentrations that could lead to conductor damage. The textile strength member absorbs tensile loads, allowing the copper conductors to carry electrical loads without mechanical stress that could affect their electrical properties.

Outer Sheath: The Primary Defense Against Environmental Attack

The halogen-free, flame retardant polyurethane outer sheath represents the cable's primary defense against the harsh marine environment. Polyurethane's unique molecular structure provides exceptional resistance to hydrolysis, oil, solvents, and alkaline substances commonly encountered in maritime applications. This chemical resistance proves essential in preventing premature cable failure due to environmental attack.

Understanding the difference between polyurethane and other sheath materials helps explain the ÜNFLEX PUR – HF's superior performance. PVC sheaths, while economical, become rigid in cold temperatures and can crack under repeated flexing. Rubber compounds may provide flexibility but often lack the chemical resistance needed in marine environments. Polyurethane combines the flexibility of rubber with chemical resistance approaching that of fluoropolymers, making it ideal for demanding marine applications.

The flame retardant properties of the polyurethane compound address critical safety requirements in marine installations. The material's ability to resist flame propagation according to IEC 60332-1 standards helps prevent fire spread in cable installations, providing valuable time for fire suppression systems to activate and personnel to respond to emergency situations.

Electrical and Mechanical Performance Specifications

Voltage Ratings and Electrical Integrity

The ÜNFLEX PUR – HF's voltage rating of 0.6/1 kV with maximum operating voltages of 0.7/1.2 kV AC and 0.9/1.8 kV DC reflects careful engineering to ensure safe operation with appropriate safety margins. These ratings indicate that the cable can operate continuously at 0.6 kV between conductors and ground, or 1 kV between conductors, while maintaining electrical safety under normal operating conditions.

The higher DC voltage rating compared to AC reflects the different electrical stresses imposed by each type of power. AC voltages create alternating electric fields in the insulation that can cause dielectric heating and gradual insulation degradation. DC applications impose constant electric fields but avoid the cyclic stress of AC operation. Understanding these differences helps engineers select appropriate cables for specific applications and ensure proper derating when necessary.

The AC test voltage of 3.5 kV provides assurance of dielectric strength under stress conditions. This test voltage, significantly higher than operating voltage, verifies that the insulation system can withstand temporary overvoltages that may occur during switching operations or fault conditions. For marine applications where electrical systems may experience transient voltages due to generator switching or load variations, this test voltage provides confidence in electrical reliability.

Current Carrying Capacity and Thermal Considerations

Current carrying capacities based on DIN VDE 0298-4 ensure that the ÜNFLEX PUR – HF can safely handle electrical loads under various installation conditions. These standards consider factors including ambient temperature, grouping effects when multiple cables are installed together, and installation methods that affect heat dissipation. Understanding these derating factors becomes crucial for proper cable selection in marine applications.

The thermal characteristics of the polyurethane sheath contribute significantly to current carrying capacity. Unlike PVC materials that have relatively low thermal conductivity, polyurethane provides better heat dissipation from the conductors to the surrounding environment. This improved thermal performance allows for higher current densities while maintaining safe conductor temperatures.

Temperature cycling in marine environments can affect current carrying capacity over time. The cable's ability to operate from -40°C to +80°C in mobile applications ensures that current carrying capacity remains stable across the temperature range encountered in global shipping operations. The short-circuit temperature rating of +250°C provides protection against damage during fault conditions while maintaining structural integrity for safe fault clearing.

Mechanical Performance Under Dynamic Conditions

The bending radius specifications of 6 times cable diameter for fixed installations and 8 times diameter for mobile applications represent careful engineering to prevent conductor damage while maintaining practical installation flexibility. These specifications ensure that the cable can be routed through typical marine equipment while avoiding stress concentrations that could lead to premature failure.

Understanding why mobile applications require larger bending radii helps explain the mechanical engineering behind flexible cable design. In fixed installations, cables experience bending stress primarily during installation, after which they remain static. Mobile applications subject cables to repeated bending cycles that can cause fatigue if bending radii are too small. The increased radius for mobile applications provides additional safety margin against fatigue failure.

The tensile loading capability of 15 N/mm² addresses the significant mechanical loads encountered in marine applications. This specification ensures that the cable can support its own weight during vertical installations while providing safety margin for additional loads imposed by equipment movement or environmental forces such as wind loading on exposed cable runs.

Torsion resistance of ±25° per meter acknowledges the complex mechanical environment in marine applications where cables may experience twisting forces during equipment operation. This specification ensures that the cable can accommodate normal torsional loads without compromising electrical integrity or mechanical structure. The ability to handle both positive and negative torsion provides flexibility for various installation configurations.

Performance Excellence Under Harsh Marine Conditions

Fire Safety and Flame Retardant Properties

The flame retardant characteristics according to IEC 60332-1 address critical safety requirements in marine installations where fire poses significant risks to personnel and equipment. This standard tests the cable's ability to resist flame propagation when subjected to a standardized flame source, ensuring that ignition of one cable section does not lead to rapid fire spread throughout the installation.

Understanding the mechanism of flame retardancy in the ÜNFLEX PUR – HF helps explain its superior fire performance. The polyurethane compound contains flame retardant additives that interfere with the combustion process by releasing inert gases that dilute combustible vapors and by forming protective char layers that insulate underlying material from heat. This multi-mechanism approach provides more reliable fire protection than single-mode flame retardants.

The halogen-free construction eliminates the production of toxic hydrogen halide gases during combustion, addressing concerns about personnel safety during fire emergencies. In marine environments where escape routes may be limited, reducing toxic gas production provides valuable additional time for evacuation and emergency response. This characteristic often influences specification decisions for enclosed spaces such as engine rooms and control centers.

Chemical Resistance in Marine Environments

Oil resistance according to HD/EN/IEC 60811-2-1 addresses the reality of marine environments where hydraulic fluids, lubricating oils, and fuel oils are commonly present. The polyurethane outer sheath's molecular structure provides excellent resistance to hydrocarbon-based fluids that could degrade other cable materials over time. This resistance prevents swelling, cracking, and eventual failure that can occur when incompatible materials are exposed to oil-based fluids.

Hydrolysis resistance becomes particularly important in marine applications where high humidity and temperature cycling can cause water absorption in susceptible materials. The polyurethane compound's resistance to hydrolysis ensures that even prolonged exposure to moisture does not compromise the sheath's protective properties. This characteristic proves essential for cables installed in areas subject to washdown or occasional water exposure.

Chemical resistance to solvents and alkalines addresses exposure to cleaning agents and maintenance chemicals commonly used in marine operations. Port equipment and ship systems regularly undergo cleaning with various chemical agents, and cable materials must resist degradation from these exposures. The polyurethane sheath's broad chemical resistance provides confidence that routine maintenance operations will not compromise cable integrity.

Temperature Performance Across Operating Ranges

The temperature rating of -40°C to +80°C for mobile applications encompasses the extreme conditions encountered in global marine operations. This range covers Arctic shipping operations where equipment may be exposed to extreme cold, as well as tropical operations where high ambient temperatures and solar loading can create challenging thermal environments. The cable's ability to maintain flexibility and electrical properties across this range ensures reliable performance regardless of operating location.

Understanding how temperature affects cable properties helps explain the importance of this broad operating range. At low temperatures, many cable materials become brittle and prone to cracking during handling or movement. The polyurethane sheath maintains flexibility even at -40°C, ensuring that the cable can be handled safely and continue operating even in extreme cold conditions.

High temperature performance becomes critical in marine applications where cables may be routed near heat sources such as engines, exhaust systems, or equipment that generates significant heat during operation. The +80°C rating provides adequate safety margin for most marine applications while the short-circuit rating of +250°C ensures that the cable can withstand fault conditions without catastrophic failure.

red and white crane during daytime
red and white crane during daytime

Addressing Common Marine Application Concerns

Dynamic Movement and Mechanical Stress Management

Marine engineers frequently express concern about cable performance under the constant movement characteristic of shipboard and port equipment. The ÜNFLEX PUR – HF addresses these concerns through its specialized construction that distributes mechanical stress across multiple structural elements. The combination of Class 5 stranded conductors, textile strength member, and flexible polyurethane sheath creates a cable structure that can accommodate movement without compromising electrical integrity.

The key to understanding dynamic performance lies in recognizing how different cable components respond to mechanical stress. Traditional cables may concentrate stress in the copper conductors, leading to fatigue and eventual failure. The ÜNFLEX PUR – HF's design isolates conductors from mechanical stress by transferring loads to the textile strength member and distributing bending forces across the flexible sheath structure.

Port crane applications exemplify the severe mechanical environment where the ÜNFLEX PUR – HF excels. These systems subject cables to constant acceleration and deceleration forces, variable loading due to cargo handling, and environmental forces from wind and weather. The cable's ability to maintain electrical continuity under these dynamic conditions ensures reliable crane operation and minimizes costly downtime for cable replacement.

Environmental Protection and Service Life

The marine environment presents a unique combination of corrosive elements including salt air, moisture, temperature extremes, and chemical exposure from various operational fluids. The ÜNFLEX PUR – HF's polyurethane sheath provides comprehensive protection against these environmental factors, significantly extending service life compared to conventional cable designs.

Salt air corrosion poses a particular challenge for electrical equipment in marine environments. While the polyurethane sheath itself is not conductive, its integrity prevents moisture and salt ingress that could compromise internal cable components. The sheath's resistance to environmental stress cracking ensures that protective properties are maintained even after prolonged exposure to harsh conditions.

Understanding the economic impact of cable service life helps justify the selection of premium cables like the ÜNFLEX PUR – HF. While initial cost may be higher than conventional alternatives, the extended service life and reduced maintenance requirements often result in lower total cost of ownership. For marine applications where cable replacement requires equipment downtime and specialized labor, service life becomes a critical economic consideration.

Installation and Maintenance Considerations

Practical installation considerations often influence cable selection decisions in marine applications. The ÜNFLEX PUR – HF's flexibility characteristics simplify installation in confined spaces typical of marine equipment. The specified bending radii allow routing through standard cable management systems while the cable's flexibility reduces installation time and labor costs.

Maintenance accessibility becomes a critical factor in marine applications where equipment may operate continuously with limited opportunities for scheduled maintenance. The clear core identification system in the ÜNFLEX PUR – HF facilitates troubleshooting and repair operations, reducing diagnostic time when problems occur. The cable's resistance to environmental degradation also reduces the frequency of maintenance interventions required.

The flame retardant and halogen-free properties address safety requirements that are particularly stringent in marine applications. These characteristics often determine specification compliance for insurance purposes and regulatory approval, making them essential considerations rather than optional features. The ÜNFLEX PUR – HF's compliance with relevant safety standards simplifies the approval process for marine installations.

Conclusion: Engineering Excellence for Marine Applications

The ÜNFLEX PUR – HF represents a comprehensive solution to the challenging requirements of marine power and control cable applications. Through careful engineering of each component from the Class 5 copper conductors to the polyurethane outer sheath, this cable addresses the complex interplay of electrical, mechanical, and environmental factors that determine performance in marine operations.

For procurement specialists evaluating cable options for marine equipment, the ÜNFLEX PUR – HF offers a compelling combination of performance characteristics that directly address the most common failure modes in marine applications. The cable's ability to withstand dynamic movement, resist environmental degradation, and maintain electrical integrity under stress provides the reliability essential for critical marine operations.

Engineers designing marine systems can specify the ÜNFLEX PUR – HF with confidence that its performance characteristics are matched to the demanding requirements of shipboard and port equipment. The comprehensive testing and certification program ensures that specified performance will be delivered in actual service conditions, reducing the risk of unexpected failures that could compromise equipment operation or safety.

The investment in advanced cable technology like the ÜNFLEX PUR – HF reflects a broader understanding that cable failure costs extend far beyond cable replacement expenses. In marine operations where equipment downtime can cost thousands of dollars per hour and safety risks affect both personnel and environmental protection, the reliability provided by properly engineered cables becomes essential for successful operations. The ÜNFLEX PUR – HF delivers this reliability through proven engineering principles applied to the unique challenges of the marine environment.
