Understanding the Critical Challenges Facing Marine Motion Systems

Marine environments present some of the most demanding operational conditions for electrical systems and their supporting infrastructure. Mobile equipment operating in ports, shipyards, and offshore platforms must contend with an unforgiving combination of environmental and mechanical stresses that can rapidly degrade conventional cable systems.

The primary environmental challenges include constant exposure to saltwater spray and humidity, which accelerates corrosion processes in metallic components and can penetrate cable jackets through microscopic defects. Ultraviolet radiation from intense maritime sunlight breaks down polymer chains in standard cable sheaths, leading to brittleness and eventual failure. Oil contamination from hydraulic systems, fuel handling, and industrial lubricants creates another layer of chemical attack that can compromise insulation integrity.

Beyond environmental factors, marine motion systems demand exceptional mechanical performance from their cables. Equipment such as ship-to-shore cranes, automated guided vehicles, and container handling systems subject cables to continuous flexing, stretching, and torsional forces. These dynamic applications require cables that maintain electrical integrity while withstanding millions of flex cycles, high-speed motion, and significant tensile loads.

Traditional cable designs often fall short in these demanding applications, leading to premature failures, costly downtime, and safety risks. This reality has driven the development of specialized marine-grade cables that can deliver reliable performance throughout extended service lives in harsh maritime conditions.

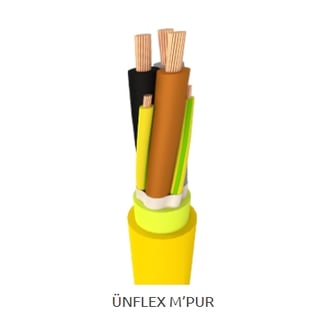

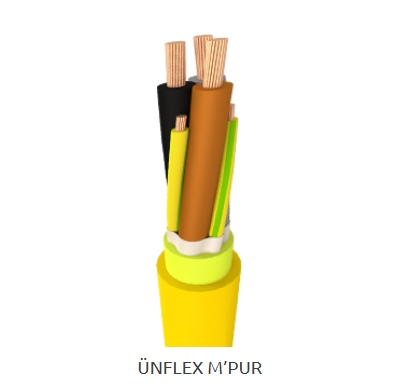

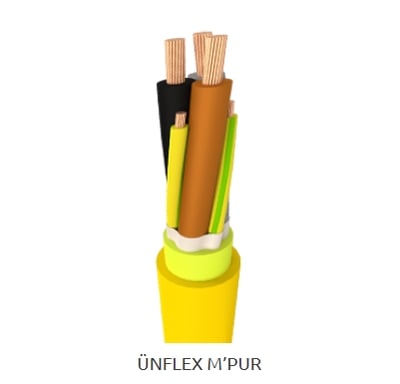

ÜNFLEX M'PUR represents a sophisticated engineering solution specifically designed to address these multifaceted challenges. This advanced cable system combines cutting-edge materials science with proven construction techniques to deliver exceptional performance in the most demanding marine applications.

Comprehensive Application Scenarios for ÜNFLEX M'PUR

ÜNFLEX M'PUR serves as the backbone for energy and control transmission in numerous critical marine applications where reliability cannot be compromised. The cable's design philosophy centers on providing consistent electrical performance while maintaining mechanical integrity throughout continuous dynamic operation.

Festoon systems represent one of the most demanding applications for marine cables. These overhead power distribution systems move along predetermined paths to supply electricity to mobile equipment such as ship-to-shore cranes and rail-mounted gantry cranes. The constant acceleration, deceleration, and directional changes inherent in festoon operations create extreme mechanical stress on cables. ÜNFLEX M'PUR's specialized construction allows it to handle these dynamic loads while maintaining consistent electrical characteristics across millions of operational cycles.

Drag chain systems present another critical application area where conventional cables often fail prematurely. These enclosed track systems guide and protect cables as they follow the motion of automated equipment. The confined environment within drag chains creates unique challenges, including restricted bending radii, potential cable-to-cable contact, and limited heat dissipation. ÜNFLEX M'PUR's compact design and superior thermal management capabilities make it ideal for these space-constrained applications.

Port automation systems increasingly rely on sophisticated cable systems to power and control automated guided vehicles, automated stacking cranes, and robotic container handling equipment. These systems demand cables that can withstand not only mechanical stress but also electromagnetic interference from nearby high-power equipment. The careful conductor design and shielding approach in ÜNFLEX M'PUR ensures signal integrity in these electronically complex environments.

Ergonomic handling systems, including mobile loading bridges and adjustable work platforms, require cables that can accommodate frequent position changes while maintaining safety-critical power and control signals. The cable's exceptional flexibility and resistance to fatigue make it suitable for applications where human operators depend on consistent equipment performance.

Offshore platforms present perhaps the most challenging environment for marine cables. The combination of saltwater exposure, extreme weather conditions, and continuous motion from wave action creates a perfect storm of destructive forces. ÜNFLEX M'PUR's robust construction and environmental resistance make it capable of providing reliable service in these extreme conditions.

Technical Excellence: Engineering Parameters That Define Performance

The electrical characteristics of ÜNFLEX M'PUR reflect careful optimization for marine power distribution requirements. The rated voltage of 0.6/1 kV provides sufficient margin for typical marine power systems while maintaining compact cable dimensions. The maximum AC voltage rating of 0.7/1.2 kV offers additional safety margin for voltage variations common in marine electrical systems, where generator load changes can cause significant voltage fluctuations.

For DC applications, which are increasingly common in modern marine systems with battery backup and renewable energy integration, the cable supports up to 0.9/1.8 kV. This capability is particularly important for hybrid propulsion systems and energy storage applications where DC power transmission offers efficiency advantages over AC systems.

The AC test voltage of 3.5 kV demonstrates the cable's robust insulation system. This high test voltage, significantly exceeding the operating voltage, ensures reliable performance even when insulation systems experience the minor degradation that occurs naturally over extended service lives. This safety margin is crucial in marine applications where cable replacement can be extremely difficult and costly.

The conductor system utilizes stranded plain annealed copper conforming to Class 5 specifications according to IEC 60228. This classification indicates maximum flexibility while maintaining excellent electrical conductivity. The annealing process removes work hardening from the copper strands, ensuring they remain flexible throughout the cable's service life. The stranding pattern is optimized to minimize conductor resistance while maximizing flexibility for dynamic applications.

The insulation system represents a critical innovation in marine cable design. Cross-linked polyethylene (XLPE) insulation provides superior electrical properties compared to conventional thermoplastic insulations. The cross-linking process creates a three-dimensional molecular structure that maintains its properties across a wide temperature range and provides excellent resistance to electrical stress and partial discharge activity.

At the heart of ÜNFLEX M'PUR's mechanical performance lies the aramid central strength member, commonly known by the trade name Kevlar. This high-strength synthetic fiber provides exceptional tensile strength while maintaining flexibility. Unlike steel wire rope strength members, aramid fibers do not create stress concentrations that can lead to insulation failure. The strength member carries mechanical loads, protecting the electrical conductors from tensile stress that could cause conductor breakage or insulation damage.

The dual polyurethane sheath system represents advanced polymer engineering tailored for marine environments. The inner sheath provides a barrier against moisture ingress and chemical attack, while the outer sheath offers mechanical protection and environmental resistance. This dual-layer approach ensures that even if the outer sheath experiences minor damage, the inner barrier maintains cable integrity.

Polyurethane was selected for its exceptional combination of properties relevant to marine applications. Unlike conventional PVC or rubber compounds, polyurethane maintains flexibility across extreme temperature ranges while providing superior resistance to oil, ozone, and hydrolysis. The hydrolysis resistance is particularly critical in marine environments where constant moisture exposure can cause conventional materials to degrade through chemical breakdown.

Temperature Performance Across Demanding Operating Conditions

The thermal performance specifications of ÜNFLEX M'PUR reflect the extreme temperature variations encountered in marine environments. For fixed installations, the cable operates reliably from -40°C to +80°C, covering the full range of conditions from Arctic maritime operations to tropical engine rooms. This wide temperature range is achieved through careful selection of materials that maintain their properties across temperature extremes.

Mobile applications present additional thermal challenges due to the heat generated by flexing and the variable heat dissipation conditions as cables move through different environments. The specified range of -30°C to +80°C for mobile use reflects these considerations while maintaining practical flexibility for dynamic applications.

The conductor operating temperature of +90°C provides significant margin above normal operating conditions while ensuring safe operation under maximum load conditions. This temperature rating is particularly important in marine applications where ambient temperatures can be elevated due to engine heat, solar loading, or confined spaces with limited ventilation.

The short circuit temperature rating of +250°C demonstrates the cable's ability to withstand fault conditions without creating safety hazards. In marine environments, where evacuation options may be limited, this fault tolerance is crucial for maintaining safety during electrical emergencies.

Mechanical Performance: Engineering for Extreme Dynamic Applications

The mechanical specifications of ÜNFLEX M'PUR reveal the sophisticated engineering required for marine motion systems. The minimum bending radius requirements differentiate between fixed and mobile applications, recognizing that dynamic applications create additional stress at bend points. For fixed installations, the 6xD (six times the cable diameter) minimum bending radius allows for compact installation routing while preventing conductor damage.

Mobile applications require a more conservative 8xD minimum bending radius to account for the fatigue effects of repeated flexing. This specification ensures that the cable can withstand millions of flex cycles without degradation, which is essential for equipment that operates continuously in port environments.

The maximum tensile load rating of 15 N/mm² reflects the cable's exceptional strength-to-weight ratio. This specification means that the cable can support significant pulling forces during installation and operation without compromising electrical integrity. The aramid strength member distributes these loads evenly, preventing stress concentrations that could damage conductors or insulation.

Torsional performance is critical for applications where cables must twist during normal operation. The ±25° per meter torsion rating allows for significant rotational movement while maintaining electrical continuity. This capability is essential for rotating equipment such as ship cranes and wind turbine maintenance platforms.

The travel speed specifications highlight the cable's suitability for high-performance applications. Festoon systems can operate at speeds up to 200 meters per minute, which is essential for the rapid repositioning of container handling equipment in busy ports. Reeling applications, which typically involve more complex cable management, are rated for speeds up to 60 meters per minute.

Standards Compliance and Safety Certifications

ÜNFLEX M'PUR's compliance with international standards ensures compatibility with global marine equipment requirements. IEC 60502 compliance guarantees that the cable meets international requirements for power cables with extruded insulation. This standard covers construction, testing, and performance requirements that ensure consistent quality across different manufacturers and applications.

DIN VDE 0250-1 compliance provides additional assurance for European markets and applications where German engineering standards are specified. This dual compliance approach reflects the international nature of the marine industry and the need for cables that can be approved for use across different regulatory jurisdictions.

Flame retardant performance according to IEC 60332-1 ensures that the cable will not propagate fire in the event of an external ignition source. This characteristic is crucial in marine environments where fire safety is paramount due to limited evacuation routes and the presence of flammable materials such as fuel and hydraulic fluids.

Oil resistance testing according to EN/IEC 60811-2-1 validates the cable's performance in contaminated environments. This testing involves extended exposure to various industrial oils and lubricants under elevated temperature conditions, ensuring that the cable maintains its properties even after prolonged exposure to these aggressive chemicals.

white and blue crane under blue sky during daytime
white and blue crane under blue sky during daytime

Addressing Critical Performance Questions for Marine Applications

Understanding how ÜNFLEX M'PUR achieves its exceptional resistance to hydrolysis and oil contamination requires examining the molecular structure of its polyurethane sheath system. Hydrolysis occurs when water molecules break chemical bonds in polymer chains, leading to degradation and eventual failure. The polyurethane formulation used in ÜNFLEX M'PUR incorporates stabilizers and cross-linking agents that create a molecular structure resistant to this type of chemical attack.

The dual-sheath design provides redundant protection against contamination. Even if the outer sheath experiences minor damage or contamination, the inner sheath maintains cable integrity. This approach is particularly important in marine environments where complete contamination avoidance is impractical.

The cable's ability to handle high mechanical stress in dynamic systems stems from its integrated design approach. Rather than simply adding strength members to a conventional cable design, ÜNFLEX M'PUR integrates mechanical and electrical functions throughout its construction. The aramid strength member works in conjunction with the flexible conductor design and specialized insulation to create a system that maintains electrical integrity under mechanical stress.

The versatility of ÜNFLEX M'PUR for both fixed and mobile installations reflects careful optimization of all design parameters. Fixed installations benefit from the cable's compact design and excellent electrical properties, while mobile applications leverage its exceptional flexibility and fatigue resistance. This dual capability simplifies inventory management and installation planning for complex projects with mixed application requirements.

Long-term durability in outdoor marine installations depends on multiple protection mechanisms working together. The UV-resistant polyurethane jacket prevents photodegradation from solar exposure, while the flame-retardant design provides fire safety. The high thermal capacity allows the cable to handle temporary overload conditions without damage, while the robust construction withstands the physical abuse common in industrial marine environments.

Technical Considerations for Optimal Performance

Proper installation practices are crucial for realizing the full performance potential of ÜNFLEX M'PUR. The cable's flexibility advantages can be negated by installation practices that create stress concentrations or exceed specified bend radii. Installation teams should be trained on the specific requirements for dynamic cable installations, including proper support spacing, bend radius maintenance, and stress relief techniques.

Environmental monitoring can help optimize cable performance and predict maintenance requirements. Temperature monitoring can identify developing problems before they cause failures, while vibration analysis can detect mechanical issues in motion systems. These monitoring approaches are particularly valuable in critical applications where unplanned downtime creates significant costs.

System design considerations should account for the cable's electrical characteristics to optimize overall system performance. The cable's capacitance and inductance characteristics affect power quality and electromagnetic compatibility, particularly in long cable runs or high-frequency applications. Proper system design ensures that these characteristics enhance rather than compromise overall system performance.

Conclusion: Engineering Excellence for Marine Motion Systems

ÜNFLEX M'PUR represents a synthesis of advanced materials science, proven construction techniques, and deep understanding of marine application requirements. The cable's combination of electrical safety, mechanical reliability, and environmental durability makes it an ideal choice for demanding marine applications where conventional cables cannot provide adequate performance.

The engineering excellence evident in ÜNFLEX M'PUR extends beyond individual component specifications to encompass system-level performance optimization. The careful integration of conductor design, insulation systems, mechanical reinforcement, and environmental protection creates a cable that performs reliably in applications that would quickly destroy conventional designs.

For professionals responsible for marine equipment reliability, ÜNFLEX M'PUR offers the confidence that comes from proven performance in the world's most demanding marine environments. The cable's comprehensive compliance with international standards ensures compatibility with global equipment requirements, while its exceptional performance characteristics provide the reliability that modern marine operations demand.

The investment in advanced cable technology represented by ÜNFLEX M'PUR pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety margins. In marine applications where cable failure can result in significant operational disruptions and safety risks, the superior performance of specialized cables like ÜNFLEX M'PUR becomes not just advantageous but essential for responsible engineering practice.

As marine systems continue to evolve toward greater automation and higher performance requirements, the importance of reliable cable systems will only increase. ÜNFLEX M'PUR's advanced design positions it to meet these evolving requirements while maintaining the proven reliability that marine professionals depend upon for safe and efficient operations.
