From Quay Cranes to Onboard Power: Choosing the Right H07RN-F or H05RN-F Cable

Introduction: Reliable Power Cabling for Singapore's Maritime Sector

Singapore's position as one of the world's busiest ports creates unique challenges for electrical infrastructure. The combination of harsh marine environments, tropical humidity, salt spray corrosion, and constant equipment movement demands exceptional reliability from power cables. Every day, massive container ships dock at Singapore's terminals, where towering quay cranes lift thousands of containers while pumps, welders, and various port machinery operate continuously under demanding conditions.

In this challenging environment, selecting the correct rubber cable becomes critical for ensuring safety, minimizing downtime, and maintaining operational efficiency. The wrong cable choice can lead to premature failure, safety hazards, and costly repairs that disrupt port operations. This is where understanding the fundamental differences between H07RN-F and H05RN-F cables becomes essential for marine engineers, port operators, and vessel maintenance crews.

Both H07RN-F and H05RN-F cables represent flexible rubber-sheathed solutions designed for different power applications, but their distinct characteristics make them suitable for specific maritime environments. Understanding these differences enables informed decisions that enhance both safety and operational reliability in Singapore's demanding marine sector.

Understanding Rubber Insulated Cables in Maritime Environments

Rubber insulation and sheathing materials have earned their reputation as the gold standard for marine applications through decades of proven performance. Unlike many synthetic alternatives, rubber maintains its flexibility across wide temperature ranges, from the air-conditioned interior of a ship's control room to the scorching heat of Singapore's tropical sun reflecting off steel deck plates.

The molecular structure of rubber provides excellent water resistance, a crucial property when cables must withstand everything from occasional spray to temporary submersion during heavy monsoon rains or equipment washing procedures. This water resistance extends beyond simple surface protection to prevent moisture ingress that could cause insulation breakdown or conductor corrosion over time.

When comparing rubber cables to alternatives using polyethylene (PE) or polyvinyl chloride (PVC), the differences become apparent in marine applications. PE cables, while offering good chemical resistance, can become brittle in cold conditions and may crack when subjected to repeated flexing. PVC cables, although cost-effective, have limited temperature ranges and can become stiff in cold weather or soft in high heat, potentially compromising their protective properties.

Rubber cables excel in environments where thermal cycling is common. Consider a quay crane operating in Singapore's climate, where morning temperatures might be relatively cool due to sea breezes, while afternoon operations occur under intense tropical sun. The cable must maintain its flexibility and protective properties throughout these temperature variations while enduring constant mechanical stress from crane movements.

The resistance to ozone and ultraviolet radiation makes rubber particularly valuable in marine environments. Ozone, naturally present in sea air and generated by electrical equipment, can cause cracking in susceptible materials. UV radiation from intense tropical sun can degrade cable sheaths over time, but properly formulated rubber compounds resist these effects, maintaining their integrity for extended service life.

H07RN-F Cable: Heavy-Duty Solution for Industrial and Outdoor Use

The H07RN-F cable represents the heavy-duty option in flexible rubber cable technology, engineered specifically for demanding industrial and outdoor applications. Understanding its construction reveals why this cable excels in Singapore's challenging port environments.

Construction Excellence

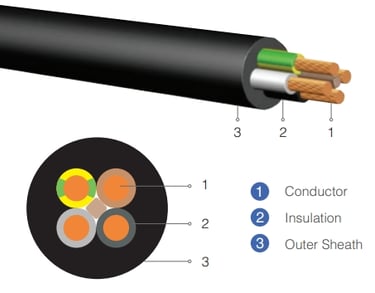

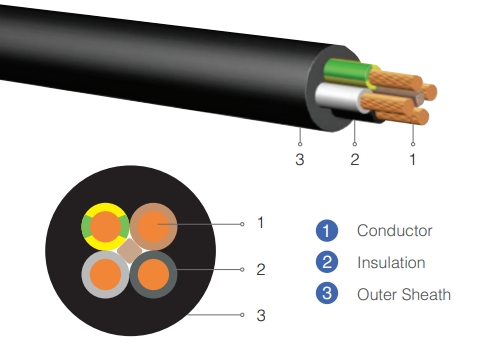

The foundation of H07RN-F performance lies in its flexible Class 5 bare or tinned copper conductors, manufactured according to EN 60228 standards. These conductors consist of numerous fine copper strands, providing exceptional flexibility while maintaining excellent electrical conductivity. The tinned copper option offers enhanced corrosion resistance, particularly valuable in marine environments where salt spray can accelerate oxidation.

The ethylene-propylene rubber (EPR) insulation surrounding each conductor provides superior electrical properties combined with excellent thermal stability. EPR insulation maintains its dielectric strength across wide temperature ranges and resists degradation from thermal cycling. This characteristic proves crucial when cables experience rapid temperature changes, such as when moving from air-conditioned spaces to outdoor tropical conditions.

The outer sheath consists of chlorinated polyethylene (CPE) in a black EM2 compound formulation. This sheath material provides the cable's primary defense against environmental hazards. The chlorinated polyethylene offers excellent resistance to oils, chemicals, and abrasion while maintaining flexibility. The black coloration incorporates carbon black additives that provide UV resistance, essential for outdoor applications under Singapore's intense tropical sun.

Key Performance Properties

The voltage rating of 450/750V makes H07RN-F suitable for most industrial power applications, with the capability to operate at 0.6/1 kV in protected installations. This voltage rating covers the requirements for most port equipment, from crane motors to pump systems and welding equipment.

The temperature performance range demonstrates the cable's versatility: -40°C to +90°C for fixed installations and -25°C to +60°C for mobile applications. While Singapore's tropical climate rarely approaches the lower temperature limits, the upper temperature capability becomes crucial when cables are installed near hot machinery or in enclosed spaces where ambient temperatures can exceed outdoor conditions.

The water submersible rating up to 10 meters depth provides exceptional protection against moisture ingress. This characteristic proves invaluable in port environments where cables might be temporarily submerged during heavy rainfall, equipment washing, or accidental immersion. The combination of water resistance and UV protection ensures reliable operation in Singapore's challenging climate conditions.

Flame retardancy according to IEC 60332-1-2 standards provides crucial safety protection. In the event of fire, the cable's flame retardant properties help prevent fire spread, providing valuable time for evacuation and firefighting efforts. This characteristic becomes particularly important in confined spaces aboard vessels or in port facilities where fire safety is paramount.

Maritime and Port Applications in Singapore

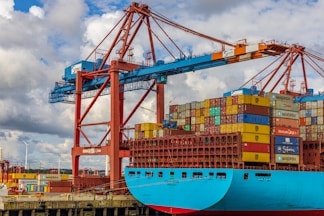

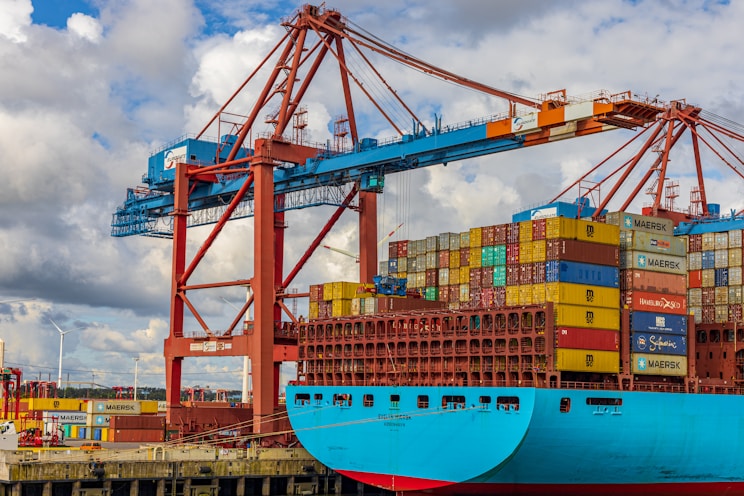

H07RN-F cables find extensive application in Singapore's port operations, where their robust construction matches the demanding environment. Quay cranes represent one of the most challenging applications, where cables must provide power to massive motors while enduring constant flexing, vibration, and exposure to harsh weather conditions. The cable's ability to withstand mechanical stress while maintaining electrical integrity makes it ideal for these applications.

Mobile electrical tools and portable lighting systems used during ship repair operations benefit from H07RN-F's flexibility and durability. These applications often involve dragging cables across rough surfaces, subjecting them to abrasion and mechanical stress that would quickly damage less robust alternatives. The cable's resistance to oil and grease proves valuable when working around ship machinery and hydraulic systems.

Pumps and welders used for dockside utilities require cables that can withstand both electrical stress and environmental exposure. H07RN-F cables provide the necessary durability for these applications while maintaining the flexibility needed for equipment positioning and movement. The cable's water resistance ensures reliable operation even during Singapore's frequent tropical downpours.

Drainage and water treatment systems near wharves represent another critical application area. These systems must operate continuously to prevent flooding and maintain port functionality. H07RN-F cables provide the reliability necessary for these essential systems while resisting the corrosive effects of salt water and humidity.

H05RN-F Cable: Light-Duty Flexibility for Appliances and Interior Use

The H05RN-F cable serves as the light-duty counterpart to the H07RN-F, designed specifically for applications where flexibility and safety are paramount but extreme environmental conditions are not expected. Understanding its construction and capabilities helps identify the appropriate applications for this more economical option.

Construction Characteristics

Like its heavy-duty counterpart, H05RN-F utilizes flexible Class 5 bare or tinned copper conductors manufactured according to IEC 60228 standards. These conductors provide excellent flexibility while maintaining good electrical conductivity for light-duty applications. The conductor construction allows for easy installation and positioning in tight spaces commonly found aboard vessels.

The ethylene-propylene rubber (EPR) insulation provides reliable electrical protection while maintaining flexibility across the cable's operating temperature range. This insulation type offers good resistance to thermal aging and maintains its properties under normal operating conditions.

The thermosetting EM2 outer sheath in black provides environmental protection appropriate for light-duty applications. While not as robust as the CPE sheath used in H07RN-F cables, the EM2 compound offers adequate protection for indoor and light-duty outdoor applications while maintaining excellent flexibility.

Performance Specifications

The 300/500V voltage rating makes H05RN-F suitable for most appliance and light equipment applications. This voltage rating covers the requirements for domestic appliances, hand tools, and similar equipment commonly found aboard vessels and in port facilities.

The temperature range of -30°C to +60°C covers the requirements for most appliance applications. While more limited than H07RN-F's temperature range, these specifications are adequate for indoor applications and light-duty outdoor use in Singapore's tropical climate.

The flame retardant properties provide essential safety protection for appliance applications. Combined with UV, ozone, and sunlight resistance, these characteristics ensure safe operation in typical marine applications where H05RN-F cables are appropriate.

Maritime and Port Applications in Singapore

H05RN-F cables excel in providing power to domestic and crew appliances aboard vessels. These applications include galley equipment, cleaning appliances, and personal electronics that crew members use during extended voyages. The cable's flexibility makes it easy to route through the confined spaces typical of vessel construction while providing reliable power delivery.

Indoor equipment at port maintenance workshops and control rooms represents another key application area. These environments typically offer protection from the harshest environmental conditions while still requiring flexible, reliable power cables. H05RN-F provides the necessary performance for these applications at a more economical cost than heavy-duty alternatives.

Portable appliances such as vacuum cleaners, soldering irons, and kitchen equipment used aboard ships benefit from H05RN-F's combination of flexibility and safety. These applications often involve frequent handling and repositioning, making the cable's flexibility crucial for safe operation and user convenience.

Selection Criteria: Choosing Between H07RN-F and H05RN-F in Singapore's Marine Ports

Selecting the appropriate cable for specific applications requires careful consideration of environmental conditions, electrical requirements, and mechanical stress factors. Understanding these criteria helps ensure optimal performance and safety while controlling costs.

For outdoor crane or hoisting systems, H07RN-F represents the clear choice due to its higher voltage rating, superior weather resistance, and ability to withstand mechanical stress. These applications involve continuous outdoor exposure, significant mechanical stress from equipment movement, and the need for reliable operation under all weather conditions. The robust construction of H07RN-F cables ensures reliable performance in these demanding applications.

Mobile dockside tools and pumps require cables that can withstand harsh marine conditions while providing the flexibility needed for equipment positioning. H07RN-F's resistance to oil, salt spray, and mechanical stress makes it ideal for these applications. The cable's water resistance provides protection against accidental immersion or exposure to heavy rainfall.

Onboard domestic appliances typically operate in protected environments where extreme conditions are not expected. H05RN-F provides adequate performance for these applications while offering cost savings compared to heavy-duty alternatives. The cable's flexibility makes it easy to install and position in the confined spaces typical of vessel construction.

Workshop handheld tools represent another application where H05RN-F excels. These tools typically operate in protected environments where extreme conditions are not expected, making the lighter-duty cable appropriate. The flexibility and safety characteristics of H05RN-F make it ideal for these applications.

The decision between H07RN-F and H05RN-F often comes down to balancing performance requirements with cost considerations. Heavy-duty applications that involve outdoor exposure, high mechanical stress, or critical safety requirements justify the additional cost of H07RN-F cables. Light-duty applications in protected environments can often utilize H05RN-F cables effectively while achieving cost savings.

Frequently Asked Questions: Expert Insights for Marine Applications

Understanding common questions about these cables helps clarify their appropriate applications and limitations in marine environments.

Regarding submersion in seawater for prolonged periods, H07RN-F cables are designed to be water-resistant and submersible up to 10 meters depth. However, prolonged immersion in seawater requires careful consideration of the corrosive effects of salt water on cable connections and terminations. While the cable itself can withstand temporary submersion, proper sealing of connections becomes crucial for long-term reliability.

The key difference in durability between H07RN-F and H05RN-F lies in their ability to handle mechanical stress, voltage requirements, and environmental exposure. H07RN-F's robust construction enables it to withstand the harsh conditions typical of outdoor port operations, while H05RN-F is designed for lighter-duty applications in more protected environments.

Both cables offer good resistance to oil and grease commonly found in port machinery, but H07RN-F provides superior performance in these applications. The cable's CPE sheath offers enhanced resistance to petroleum products, making it ideal for applications around hydraulic systems, diesel engines, and other machinery that may leak oil or grease.

While H05RN-F can resist UV and ozone exposure, its use outdoors in Singapore's humid climate should be limited to temporary or light-duty applications. For continuous outdoor service, H07RN-F's superior weather resistance and UV protection make it the preferred choice.

The safe operating temperature range for port equipment in Singapore's tropical climate requires careful consideration. H07RN-F operates reliably up to +60°C in mobile applications and +90°C in fixed installations, providing adequate margin for Singapore's ambient conditions plus heat generated by electrical equipment.

Conclusion: Selecting the Right Cable for Maritime Safety and Efficiency

The selection of appropriate power cables represents a critical decision that affects safety, reliability, and operational efficiency in Singapore's demanding marine environment. The harsh conditions of salt spray, humidity, temperature extremes, and mechanical stress require cables specifically designed to withstand these challenges while maintaining electrical integrity.

For heavy-duty port and quay applications, H07RN-F emerges as the optimal choice, providing the robust construction necessary to withstand harsh environmental conditions while delivering reliable power to critical equipment. Its superior mechanical strength, enhanced weather resistance, and higher voltage rating make it ideal for crane systems, mobile equipment, and outdoor installations.

For light-duty, indoor, or vessel interior applications, H05RN-F delivers the required flexibility and safety characteristics while providing cost-effective solutions. Its construction offers adequate protection for appliances and tools operating in protected environments while maintaining the flexibility necessary for installation in confined spaces.

The key to successful cable selection lies in matching the cable's characteristics to the specific application requirements. Understanding the environmental conditions, electrical requirements, and mechanical stress factors enables informed decisions that enhance both safety and operational reliability. By choosing the appropriate cable for each application, port operators and marine engineers can ensure optimal performance while controlling costs and minimizing maintenance requirements.

In Singapore's world-class port operations, where reliability and safety are paramount, the proper selection between H07RN-F and H05RN-F cables contributes to the continued excellence of maritime operations. These cables represent proven solutions that enable the efficient, safe operation of port equipment and vessel systems in one of the world's most demanding marine environments.
