Fire-Resistant Marine Communication Cables: A Comprehensive Guide to the FM2XAH Family and Their Critical Role in Maritime Safety
Discover the FM2XAH and FM2XAAH fire-resistant marine cable series, including FFR variants—engineered for extreme shipboard conditions with advanced EMI protection, thermal endurance, and compliance with maritime safety standards. Ideal for mission-critical marine communication systems.
BLOGS
5/28/202510 min read
Introduction
The maritime industry operates in some of the world's most challenging environments, where electrical systems must withstand not only the corrosive effects of saltwater and extreme weather conditions but also maintain reliable performance under the constant threat of fire hazards. In this demanding context, specialized cables become the lifelines that ensure critical communication, navigation, and safety systems continue to function when lives depend on them.

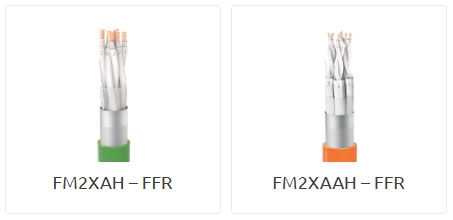

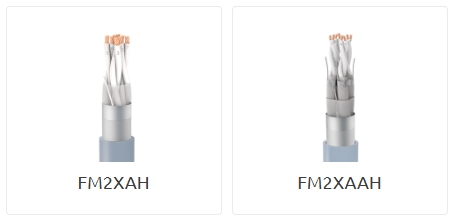

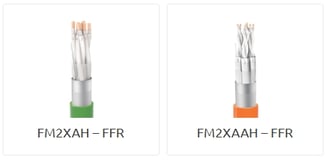

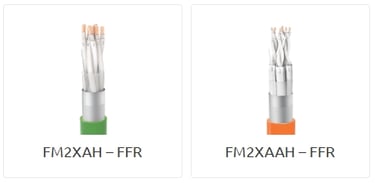

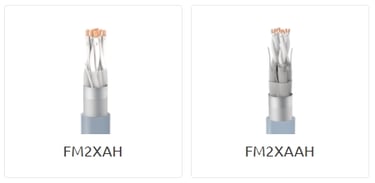

The FM2XAH cable family represents a sophisticated solution engineered specifically for these maritime challenges. These cables, along with their armored variants (FM2XAAH) and fire-resistant versions (FFR), form a comprehensive lineup of marine communication cables that exemplify the intersection of advanced materials science and practical maritime engineering. Understanding these cables requires us to appreciate both the unique demands of the marine environment and the innovative technologies that address these challenges.
What makes these cables particularly noteworthy is their dual focus on electromagnetic compatibility and fire safety. The twisted pair configuration minimizes signal interference, while the overall screening provides robust protection against the electromagnetic noise commonly found in marine environments where powerful radar systems, communication equipment, and electrical machinery operate in close proximity. This combination of features makes the FM2XAH family indispensable for maintaining clear, reliable communication in critical maritime applications.
Application Scenarios
Shipboard Electrical Systems
The primary application domain for FM2XAH cables lies within the complex electrical infrastructure of modern vessels. These cables serve as the nervous system for shipboard communication networks, connecting radar systems, navigation equipment, and communication devices throughout the vessel. In accommodation areas, they enable reliable internet connectivity and internal communication systems that keep crew members connected with both shipboard operations and shore-based support.
Engine rooms present particularly challenging environments where these cables demonstrate their robust design. The combination of high temperatures, vibration from machinery, and potential exposure to oil and other chemicals creates conditions that would quickly degrade standard cables. The cross-linked polyethylene insulation and halogen-free outer sheath of FM2XAH cables provide the necessary durability to maintain signal integrity in these harsh conditions.
Control rooms and bridge areas rely on these cables for critical navigation and safety systems. Here, the electromagnetic shielding becomes crucial as multiple electronic systems operate simultaneously. The aluminum tape screening and copper drain wire configuration effectively isolate sensitive communication circuits from interference that could compromise navigation accuracy or emergency communication capabilities.
Offshore Platforms and Floating Structures
Offshore applications present unique challenges that extend beyond those found on traditional vessels. Floating production platforms, drilling rigs, and offshore wind installations subject cables to constant mechanical stress from wave action and structural movement. The FM2XAAH variant, with its additional armoring, specifically addresses these mechanical challenges while maintaining the electrical performance characteristics essential for reliable operation.
The fire-resistant FFR variants become particularly critical in offshore applications where evacuation options may be limited. Emergency power systems, fire detection networks, and public address systems must continue operating during fire incidents to facilitate safe evacuation procedures. The mica tape fire barrier incorporated in FFR variants ensures circuit integrity for extended periods, providing the time necessary for emergency response procedures.
Weather monitoring systems on offshore platforms also depend on these cables to maintain continuous data collection and transmission to shore-based control centers. The UV resistance and temperature stability of the FM2XAH family ensure reliable performance through extreme weather events when accurate environmental data becomes most critical.
Oil & Gas Marine Infrastructure
The oil and gas sector imposes the most stringent requirements on marine cables, combining the challenges of offshore environments with the additional hazards associated with hydrocarbon processing. In these applications, the halogen-free characteristics of FM2XAH cables become a primary safety consideration. During fire incidents, halogen-free cables produce significantly less toxic smoke, improving visibility for emergency response personnel and reducing the risk of chemical inhalation injuries.
Hazardous area classifications in oil and gas facilities require cables that minimize the risk of ignition propagation. The flame retardant properties of these cables, tested according to IEC 60332 standards, ensure that fire cannot spread along cable pathways. This characteristic becomes particularly important in complex industrial installations where cable runs may extend through multiple fire zones.
The electromagnetic compatibility features of these cables also support the sophisticated monitoring and control systems essential for safe hydrocarbon processing. Process control networks, safety instrumented systems, and emergency shutdown networks all depend on reliable signal transmission that remains unaffected by the electromagnetic environment of large electrical motors, variable frequency drives, and other industrial equipment.
Electrical and Technical Parameters
Voltage Rating and Conductor Design
The voltage rating of 150/250V reflects the specific requirements of marine communication applications where signal integrity takes precedence over power transmission capacity. This relatively low voltage rating allows for optimized insulation thickness that balances electrical performance with cable flexibility and weight considerations crucial in marine installations.
The conductor design represents a carefully engineered balance of electrical performance and mechanical durability. Electrolytic copper provides excellent conductivity, while the stranded configuration according to IEC 60228 Class 2 standards ensures flexibility for installation around the tight bends common in ship construction. The optional tinning of conductors adds a critical layer of corrosion protection, extending cable life in the corrosive marine environment where even small amounts of moisture can lead to conductor degradation over time.
Understanding the significance of conductor class ratings helps appreciate the engineering considerations involved. Class 2 conductors offer sufficient flexibility for fixed installations while maintaining the mechanical strength necessary for marine applications. The availability of Class 5 conductors on request provides additional flexibility for installations requiring frequent movement or particularly tight bending radii.
Insulation System Performance
Cross-linked polyethylene (XLPE) insulation represents a sophisticated polymer technology specifically chosen for its superior performance in marine environments. The cross-linking process creates a three-dimensional molecular structure that provides enhanced thermal stability, chemical resistance, and mechanical strength compared to standard polyethylene insulation. This molecular architecture allows XLPE to maintain its electrical properties across the full operating temperature range of -40°C to +90°C.
The color coding system using white cores with black numbers provides a practical identification method that remains visible even in the challenging lighting conditions common in marine environments. This seemingly simple feature reflects the attention to practical installation and maintenance considerations that characterize well-designed marine cables.
The dielectric properties of XLPE insulation contribute significantly to signal integrity in high-frequency applications. The low dielectric constant and loss factor of cross-linked polyethylene minimize signal attenuation and distortion, ensuring that digital communication signals maintain their integrity over long cable runs common in large vessels and offshore installations.
Shielding and Electromagnetic Compatibility
The electromagnetic shielding system in FM2XAH cables employs a sophisticated combination of materials and construction techniques to achieve superior interference protection. The aluminum tape provides a continuous conductive barrier that effectively blocks high-frequency electromagnetic fields, while the tinned copper drain wire ensures low-impedance grounding of the shield system.
Understanding electromagnetic interference in marine environments requires recognizing the diverse sources of electromagnetic energy present on modern vessels. Radar systems operate at high power levels and generate significant electromagnetic fields. Navigation equipment, communication radios, and satellite systems all contribute to the electromagnetic environment. Additionally, the electrical propulsion systems increasingly common on modern vessels create variable frequency electromagnetic disturbances that can interfere with sensitive communication circuits.
The twisted pair configuration provides an additional layer of interference protection through the principle of electromagnetic field cancellation. When external electromagnetic fields induce currents in the cable conductors, the twisted geometry ensures that these induced currents are equal and opposite in each conductor, effectively canceling their effect on the differential signal. This physical arrangement becomes particularly effective against magnetic field interference common around electrical machinery.
Fire Performance and Safety Characteristics
The fire performance of FM2XAH cables, particularly the FFR variants, represents one of the most critical safety features for maritime applications. The mica tape fire barrier in FFR variants operates on the principle of intumescent protection, expanding when exposed to high temperatures to form an insulating barrier that maintains circuit integrity even when the primary insulation has been compromised by fire.
Circuit integrity during fire conditions enables critical safety systems to continue operating when they are most needed. Emergency lighting systems, fire detection networks, and evacuation communication systems must remain functional to facilitate safe egress from affected areas. The 180-minute circuit integrity rating of FFR variants provides sufficient time for emergency response procedures while maintaining power to essential systems.
The halogen-free sheath compound addresses both toxicity and visibility concerns during fire incidents. Traditional PVC-based cable sheaths release hydrogen chloride gas when burned, creating both toxic hazards and corrosive conditions that can damage electronic equipment and create additional safety risks. The polyolefin-based halogen-free compound produces significantly less toxic smoke while maintaining the mechanical and electrical properties necessary for reliable cable performance.
Low smoke emission characteristics, verified through IEC 61034 testing, directly impact emergency response effectiveness. During shipboard fires, visibility becomes critical for both evacuation procedures and firefighting operations. Cables that produce minimal smoke during fire conditions help maintain the visibility necessary for effective emergency response while reducing the risk of smoke inhalation injuries to passengers and crew.




Environmental Impact and Sustainability Considerations
Decommissioning and Ship Recycling
The growing emphasis on environmental responsibility in maritime operations extends to cable selection and lifecycle management. When vessels reach the end of their operational life, the environmental impact of cable disposal becomes a significant consideration. The halogen-free composition of FM2XAH cables directly addresses these concerns by eliminating materials that could create toxic emissions during recycling or disposal processes.
The Hong Kong International Convention for the Safe and Environmentally Sound Recycling of Ships specifically addresses the materials and substances that must be managed during ship breaking operations. Halogen-free cables support compliance with these requirements by eliminating sources of toxic gases that could endanger workers in ship recycling facilities or create environmental contamination.
The copper content of these cables also provides positive environmental value through recycling opportunities. High-quality copper conductors retain significant value as recycled materials, creating economic incentives for proper cable recovery during decommissioning operations. This recyclability factor increasingly influences cable selection decisions as shipowners consider total lifecycle costs and environmental responsibilities.
The mica used in fire barrier applications comes from naturally occurring mineral sources and does not create environmental hazards during disposal or recycling. This natural material choice reflects the broader trend toward environmentally compatible materials in marine applications while maintaining the superior fire protection performance required for safety applications.
Predictive Maintenance and Service Life Optimization
Modern marine operations increasingly rely on predictive maintenance strategies to optimize equipment reliability while minimizing operational costs. For cable systems, this approach involves regular monitoring of electrical and physical conditions to identify degradation trends before they result in system failures.
Infrared thermography provides a non-invasive method for monitoring cable condition by detecting temperature variations that may indicate developing electrical faults or mechanical damage. Hot spots detected during thermal imaging often reveal loose connections, partial conductor failures, or insulation degradation that would otherwise remain undetected until complete failure occurs.
Insulation resistance testing offers another valuable tool for monitoring cable health over time. By tracking insulation resistance values during routine maintenance intervals, marine electricians can identify gradual degradation trends that indicate moisture intrusion, chemical contamination, or thermal aging. This trending approach enables proactive cable replacement before failures occur, reducing the risk of unexpected system outages during critical operations.
The robust construction of FM2XAH cables supports extended service life when properly maintained, but even the best cables benefit from systematic condition monitoring. Understanding the relationship between environmental exposure and degradation rates helps marine operators develop optimal maintenance schedules that balance inspection costs with reliability requirements.
Digital monitoring systems increasingly incorporate cable condition data into comprehensive vessel health monitoring platforms. These integrated approaches enable shoreside support teams to track cable performance trends across multiple vessels, identifying patterns that may indicate design improvements or maintenance procedure refinements.
Advanced Technical Considerations
Signal Integrity and High-Frequency Performance
The increasing sophistication of marine communication and navigation systems places greater demands on cable signal integrity performance. Modern radar systems, satellite communication equipment, and integrated bridge systems operate at higher frequencies and with more complex signal formats than previous generations of marine electronics.
The twisted pair geometry of FM2XAH cables provides controlled impedance characteristics that become increasingly important as signal frequencies increase. The precise spacing and twist rate of conductor pairs determines the characteristic impedance of the transmission line, which must match the impedance requirements of connected equipment to minimize signal reflections and maintain signal quality.
Crosstalk between adjacent conductor pairs represents another critical performance parameter in multi-pair cables. The individual screening available in FM2XAAH variants provides superior crosstalk isolation compared to overall screening alone, making these cables particularly suitable for applications where multiple high-frequency signals must be transmitted through the same cable without mutual interference.
The dielectric properties of XLPE insulation contribute to stable signal transmission characteristics across varying environmental conditions. Unlike some insulation materials that exhibit significant property changes with temperature and humidity variations, cross-linked polyethylene maintains relatively stable electrical characteristics throughout the specified operating range.
Understanding transmission line theory helps explain why proper cable selection becomes more critical as communication system complexity increases. Impedance mismatches, signal reflections, and frequency-dependent losses that might be negligible in simple communication systems can severely impact the performance of modern digital communication networks.
Conclusion
The FM2XAH family of marine communication cables represents a sophisticated engineering solution that addresses the unique challenges of maritime electrical installations. Through careful selection of materials, construction techniques, and testing standards, these cables provide the reliability, safety, and performance characteristics essential for modern marine operations.
The fire-resistant variants extend these capabilities to applications where circuit integrity during emergency conditions becomes a matter of life safety. The combination of flame retardancy, low smoke emission, and maintained electrical functionality during fire exposure provides the time and capability necessary for effective emergency response procedures.
The choice between standard and armored variants, as well as the decision to specify fire-resistant versions, should be based on careful evaluation of the specific installation environment and performance requirements. Mechanical stress levels, fire safety requirements, electromagnetic interference concerns, and maintenance accessibility all influence the optimal cable selection for each application.
As maritime technology continues to evolve toward more integrated and sophisticated systems, the importance of reliable cable infrastructure becomes even more critical. The FM2XAH cable family provides a proven foundation for these advanced systems while maintaining the durability and safety characteristics that maritime professionals have come to expect from quality marine cables.
Understanding these cables from both technical and practical perspectives enables maritime professionals to make informed decisions that optimize system performance, enhance safety, and support efficient operations throughout the demanding service life of marine electrical installations. The investment in quality cable infrastructure pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety for vessel operations in challenging marine environments.
