Choosing Marine & Offshore Cables: EPR Collective vs. Individual Shielding Explained
Decipher the differences between EPR/COL.SCRN and EPR/IND.SCRN cables for marine and offshore installations. Understand their construction, performance, and best uses in demanding environments.
BLOGS
6/9/202511 min read
Introduction
In the unforgiving marine and offshore environment, where saltwater corrosion, extreme weather conditions, and constant mechanical stress pose relentless challenges, the reliability of electrical systems can mean the difference between operational success and catastrophic failure. Consider a floating production storage and offloading (FPSO) vessel operating in the North Sea, where power cables must maintain integrity while subjected to temperatures ranging from -40°C to +90°C, constant vibration from wave action, and exposure to hydrocarbon vapors. The electrical infrastructure powering these critical systems demands cables engineered to withstand conditions that would quickly destroy conventional wiring.
Two specialized cable configurations have emerged as industry standards for such demanding applications: EPR/COL.SCRN/SW4/GSWB/SW4 and EPR/IND.SCRN/SW4/GSWB/SW4. These seemingly complex designations represent sophisticated engineering solutions that incorporate multiple layers of protection, specialized materials, and carefully designed construction methods. While their alphanumeric codes might appear cryptic to the uninitiated, each element serves a specific purpose in ensuring reliable electrical transmission in the harshest marine environments.
This comprehensive examination will dissect the construction and key characteristics of these advanced cable systems, exploring how their shared foundation of robust materials and protective layers is enhanced by different shielding philosophies. Understanding these distinctions enables engineers, project managers, and technical personnel to make informed decisions about cable selection for critical offshore installations, ultimately contributing to safer and more reliable marine operations.
The Foundation of Marine Cable Reliability: Common Engineering Features
Both EPR/COL.SCRN/SW4/GSWB/SW4 and EPR/IND.SCRN/SW4/GSWB/SW4 cables share a fundamental design philosophy centered on providing reliable electrical performance in fixed installations across all areas of ships and offshore units, including the most exposed open deck environments. This shared purpose drives their common construction elements, each carefully selected to address specific challenges inherent in marine applications.
Advanced Conductor Technology: The Heart of Electrical Performance
The conductor system forms the electrical foundation of these cables, utilizing electrolytic annealed, stranded tinned copper wires that represent the pinnacle of conductor technology for marine applications. Electrolytic copper, refined through an electrochemical process, achieves purity levels exceeding 99.9%, ensuring maximum electrical conductivity essential for minimizing power losses over long cable runs typical in offshore installations.
The annealing process, involving controlled heating and cooling cycles, removes internal stresses within the copper crystal structure while maintaining optimal conductivity. This treatment significantly enhances the conductor's flexibility and fatigue resistance, crucial characteristics for cables that must withstand constant movement and vibration in marine environments. The stranded construction, where multiple fine copper wires are twisted together rather than using a single solid conductor, further improves flexibility while maintaining excellent electrical properties.
The tinning process, where each individual copper strand receives a thin coating of tin, provides exceptional corrosion resistance against the aggressive marine atmosphere. This protective barrier prevents the formation of copper oxide, which would increase electrical resistance and potentially lead to hotspots that could compromise cable integrity. The tin coating also facilitates superior termination procedures, as it readily accepts soldering and other connection methods commonly used in marine electrical installations.
The classification of conductors as Class 2 or Class 5 relates to their flexibility characteristics as defined by international standards. Class 2 conductors offer moderate flexibility suitable for fixed installations where some degree of movement accommodation is required, while Class 5 conductors provide enhanced flexibility for applications requiring frequent flexing or installation in tight bends. This classification system ensures that the conductor's mechanical properties match the specific installation requirements and expected service conditions.
Sophisticated Insulation Systems: GP4 Type Elastomer Excellence
The insulation system surrounding each conductor represents a critical barrier preventing electrical leakage and ensuring safe operation throughout the cable's service life. GP4 type elastomer compound insulation provides exceptional performance characteristics specifically tailored for demanding marine applications. This advanced material formulation combines excellent electrical properties with outstanding resistance to environmental stresses that would quickly degrade conventional insulation materials.
The elastomeric nature of GP4 compound provides inherent flexibility that allows the cable to accommodate movement and vibration without compromising insulation integrity. Unlike thermoplastic materials that can become brittle at low temperatures or soften excessively at high temperatures, elastomers maintain consistent properties across the wide temperature ranges encountered in marine service. This stability ensures reliable electrical performance whether the cable is installed in a heated engine room or exposed to arctic conditions on an open deck.
Chemical resistance represents another crucial advantage of GP4 type elastomer insulation. Marine environments expose cables to a wide variety of potentially harmful substances, including fuel oils, hydraulic fluids, cleaning solvents, and saltwater spray. The GP4 formulation demonstrates excellent resistance to these chemicals, preventing swelling, hardening, or other degradation that could compromise electrical properties or mechanical integrity.
The compound's resistance to ozone and ultraviolet radiation provides additional protection for cables that may be exposed to sunlight and atmospheric conditions. Ozone, particularly concentrated in marine atmospheres, can cause severe cracking in susceptible materials, creating pathways for moisture ingress and electrical failure. The GP4 formulation's inherent ozone resistance eliminates this potential failure mode, contributing to extended service life in exposed installations.
Protective Sheathing: SW4 Type Elastomer Armor
The cable's protective sheathing system employs SW4 type elastomer compound in both inner and outer sheath applications, creating multiple barriers against environmental intrusion and mechanical damage. This dual-sheath construction provides redundant protection, ensuring that even if the outer sheath sustains damage, the inner sheath maintains cable integrity until repairs can be effected.
SW4 type elastomer compound represents an evolution in marine cable sheathing technology, formulated specifically to address the unique challenges of offshore environments. The material exhibits exceptional resistance to seawater, maintaining its protective properties even under conditions of continuous immersion or spray exposure. This resistance extends to the various chemicals commonly encountered in marine operations, including diesel fuel, lubricating oils, and hydraulic fluids that might contact cables during normal operations or emergency conditions.
The flame-retardant properties of SW4 compound contribute significantly to marine safety requirements. In the confined spaces typical of ship and offshore platform installations, fire represents one of the most serious potential hazards. The compound's inherent flame resistance helps prevent fire propagation along cable routes while producing minimal smoke and toxic gases if combustion does occur, characteristics essential for maintaining safe evacuation routes and protecting personnel.
Temperature stability across the extreme range of marine operating conditions ensures that the sheathing maintains its protective properties whether exposed to engine room heat, arctic deck conditions, or the thermal cycling that occurs as equipment operates and environmental conditions change. This stability prevents the cracking, hardening, or softening that could compromise the sheath's protective function and allow environmental intrusion.
Mechanical Protection: Galvanized Steel Wire Braiding Armor
The incorporation of galvanized steel wire braiding (GSWB) as armoring provides essential mechanical protection against the physical hazards common in marine installations. This armoring system, with its minimum 82% coverage specification, creates a robust barrier against crushing forces, impact damage, and rodent attack while maintaining cable flexibility for installation in complex routing configurations.
The galvanizing process applies a protective zinc coating to the steel wires, providing exceptional corrosion resistance in the aggressive marine atmosphere. This coating acts sacrificially, protecting the underlying steel even if minor damage occurs to the zinc layer. The galvanized construction ensures that the armor retains its mechanical strength throughout the cable's service life, preventing the degradation that could compromise protection and potentially create sharp edges that might damage other cable components.
The braided construction of the armor provides omnidirectional protection while maintaining cable flexibility. Unlike rigid armor systems that can restrict installation options or create stress concentration points, the braided design allows the cable to follow complex routing paths while maintaining uniform protection. The minimum 82% coverage specification ensures adequate protection density while allowing sufficient flexibility for practical installation requirements.
The steel wire braiding also provides additional electromagnetic shielding benefits, complementing the primary screening systems incorporated into each cable design. This secondary shielding effect can be particularly valuable in installations where multiple cables are routed together, helping to minimize electromagnetic interactions that could affect signal quality or create potential interference sources.
Compliance with International Standards: Quality Assurance Foundation
Both cable configurations comply with rigorous British Standards including BS 6883, BS EN 50395, and BS EN 50396, ensuring consistent quality, safety, and performance characteristics. These standards represent the culmination of decades of experience in marine cable applications, incorporating lessons learned from service failures and technological advances in materials and construction methods.
BS 6883 establishes comprehensive requirements for cables intended for use in ships and offshore installations, covering everything from material specifications to testing procedures that simulate actual service conditions. Compliance with this standard ensures that cables will perform reliably in the specific environmental and operational conditions encountered in marine applications.
BS EN 50395 and BS EN 50396 provide additional specifications for electrical cables used in hazardous locations, addressing the unique safety requirements of offshore installations where flammable atmospheres may be present. These standards ensure that cables contribute to overall installation safety rather than representing potential ignition sources or fire propagation paths.
The multi-standard compliance approach provides users with confidence that these cables meet not only basic electrical performance requirements but also the stringent safety and reliability standards essential for critical marine applications. This compliance represents ongoing verification through independent testing and quality auditing, ensuring consistent product quality across different manufacturers and production facilities.




Critical Engineering Distinctions: Collective Versus Individual Screening Philosophies
While EPR/COL.SCRN/SW4/GSWB/SW4 and EPR/IND.SCRN/SW4/GSWB/SW4 cables share the robust foundation described above, their fundamental distinction lies in their electromagnetic screening approaches. This difference reflects two distinct engineering philosophies for managing electromagnetic interference (EMI) and signal integrity in marine electrical systems, each optimized for specific application requirements and performance objectives.
Collective Screening Technology: EPR/COL.SCRN/SW4/GSWB/SW4

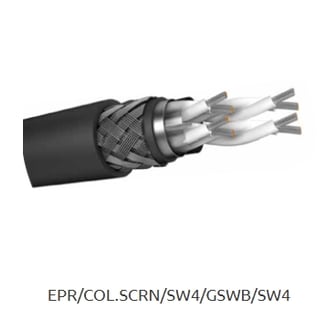

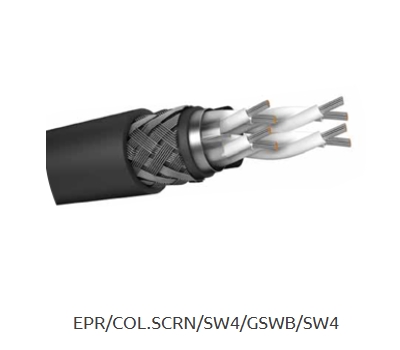

The EPR/COL.SCRN/SW4/GSWB/SW4 configuration employs collective screening technology, where a single aluminum-polyester (Al-pet) foil shield encompasses all conductor pairs or triples within the cable core. This approach creates a unified electromagnetic barrier that protects the entire cable from external interference while containing any electromagnetic emissions generated by the conductors themselves.
The aluminum-polyester foil construction combines the excellent electrical conductivity of aluminum with the mechanical strength and chemical resistance of polyester film. The aluminum layer provides the primary electromagnetic shielding function, creating a continuous conductive barrier that reflects and absorbs electromagnetic energy across a wide frequency spectrum. The polyester substrate provides mechanical support for the aluminum layer while contributing to the shield's resistance to tearing and puncture during cable installation and service.
The drain wire component of the collective screening system provides essential electrical continuity and grounding capability for the shield. This bare copper wire maintains continuous electrical contact with the aluminum foil throughout the cable length, ensuring that the shield remains at ground potential and can effectively conduct any induced currents to the cable termination points. Proper drain wire connection at cable terminations is crucial for shield effectiveness, as floating or poorly connected shields can actually amplify EMI problems rather than solving them.
Collective screening proves particularly effective for applications where all conductors within the cable carry related signals or where the primary concern is protecting the entire cable from external electromagnetic interference. Power and control cables often benefit from collective screening because the individual conductors typically operate as a coordinated system, and the primary requirement is preventing external interference from affecting system operation rather than isolating individual conductors from each other.
The collective approach also provides economic advantages in applications where individual conductor isolation is not critical. The single shield system requires less material and manufacturing complexity compared to individual screening approaches, potentially reducing cable cost while still providing effective EMI protection for appropriate applications.
Individual Screening Excellence: EPR/IND.SCRN/SW4/GSWB/SW4

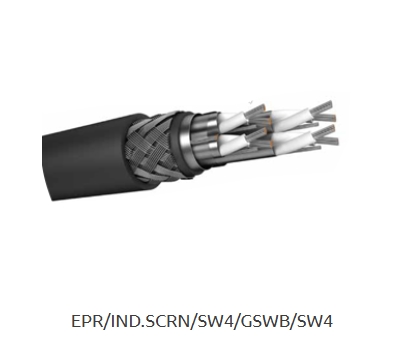

The EPR/IND.SCRN/SW4/GSWB/SW4 configuration represents a more sophisticated screening approach where each conductor pair receives its own dedicated aluminum-polyester foil shield with individual drain wire. This individual screening methodology provides superior isolation between conductor pairs, minimizing crosstalk and maintaining signal integrity in applications where multiple independent circuits share the same cable.
Each individual shield creates an isolated electromagnetic environment around its associated conductor pair, preventing signals from one pair from inducing unwanted currents in adjacent pairs. This isolation becomes critical in applications involving sensitive instrumentation signals, data communications, or mixed signal types where interference between circuits could cause measurement errors, communication failures, or system malfunctions.
The individual drain wire system associated with each shield provides dedicated grounding for each circuit, allowing for more sophisticated grounding schemes that can optimize performance for specific applications. In some installations, individual shields may be grounded at different points or connected to separate grounding systems to minimize ground loops or optimize noise rejection for particular circuits.
Individual screening also provides enhanced fault tolerance compared to collective screening systems. If damage occurs to one individual shield, only the associated conductor pair is affected, while other pairs remain fully protected. In collective screening systems, shield damage potentially compromises the electromagnetic protection for all conductors within the cable, making individual screening more suitable for critical applications where partial failure cannot be tolerated.
The manufacturing precision required for individual screening systems reflects the more demanding performance requirements of their typical applications. Each shield must be carefully applied to ensure complete coverage and proper drain wire contact while maintaining the flexibility and mechanical properties required for marine cable installations. This precision manufacturing contributes to higher costs but delivers superior performance for applications that justify the additional investment.
Application-Specific Selection Criteria: Matching Technology to Requirements
The choice between collective and individual screening depends on careful analysis of the specific application requirements, considering factors such as signal types, electromagnetic environment, criticality of individual circuits, and economic constraints. Understanding these factors enables optimal cable selection that provides necessary performance without unnecessary complexity or cost.
Collective screening systems excel in applications involving coordinated control systems, power distribution, and situations where all conductors within the cable serve related functions. Motor control cables, lighting circuits, and general power distribution systems often perform well with collective screening because the primary requirement is protecting the entire system from external interference rather than isolating individual conductors from each other.
Individual screening becomes essential for applications involving sensitive instrumentation, data communications, mixed signal types, or situations where crosstalk between circuits could cause operational problems. Process control systems, navigation equipment, communication networks, and scientific instrumentation typically require individual screening to maintain the signal integrity essential for proper operation.
The electromagnetic environment of the installation also influences screening selection. Installations with high levels of electromagnetic interference from radar systems, radio transmitters, or variable frequency drives may benefit from the enhanced protection provided by individual screening, even for applications that might otherwise be suitable for collective screening approaches.
Economic considerations must balance the additional cost of individual screening against the consequences of potential signal integrity problems. While individual screening systems typically cost more than collective screening alternatives, this additional investment may be justified by the improved reliability and performance in critical applications where system failures could have serious safety or operational consequences.
Conclusion and Future Perspectives
The sophisticated engineering embodied in EPR/COL.SCRN/SW4/GSWB/SW4 and EPR/IND.SCRN/SW4/GSWB/SW4 cables represents the current state of the art in marine electrical infrastructure technology. Their shared foundation of advanced materials, robust construction methods, and compliance with rigorous international standards provides the reliability essential for critical offshore operations, while their distinct screening approaches offer tailored solutions for different application requirements.
The collective screening approach of EPR/COL.SCRN/SW4/GSWB/SW4 cables provides cost-effective electromagnetic protection for applications where unified circuit protection suffices, making it ideal for power distribution and coordinated control systems. Conversely, the individual screening technology of EPR/IND.SCRN/SW4/GSWB/SW4 cables delivers superior signal integrity and crosstalk prevention essential for sensitive instrumentation and communication applications where circuit isolation is paramount.
These cable systems play an indispensable role in ensuring the safe and reliable operation of modern marine and offshore installations. From floating production platforms extracting resources from beneath the ocean floor to research vessels exploring the deepest ocean trenches, these cables provide the electrical backbone that enables complex operations in environments where failure is not an option. Their robust construction and proven performance record contribute directly to the safety of personnel and the protection of valuable equipment and environmental resources.
Looking toward the future, the evolution of marine electrical systems continues to drive cable technology development. The increasing adoption of digitalization, remote monitoring systems, and renewable energy integration in maritime applications creates new demands for cable performance and reliability. Advanced materials research, improved manufacturing techniques, and enhanced understanding of electromagnetic compatibility requirements will likely yield even more capable cable systems while maintaining the fundamental principles of robust construction and environmental resistance that characterize current designs.
The ongoing development of autonomous vessels, deeper offshore installations, and more sophisticated control systems will continue to challenge cable designers to provide ever-higher levels of performance and reliability. However, the solid foundation represented by current EPR cable technology provides a proven platform for these future developments, ensuring that marine electrical systems will continue to meet the demanding requirements of an increasingly complex maritime environment while maintaining the safety and reliability standards essential for offshore operations.
