Can the RigFlex-125 Type P Power Cable Single Conductor 2kV Unarmoured Meet Your Toughest Offshore Power Requirements?
Uncover the RigFlex-125 Type P Power Cable Single Conductor 2kV Unarmoured. Dive deep into its IEEE 1580, UL 1309, and CSA C22.2 compliance, and see why it's the trusted choice for critical 2kV ship and offshore power.
BLOGS
6/12/202513 min read
The Unseen Lifeline of Marine and Offshore Operations
Picture this: a massive offshore drilling platform operating hundreds of miles from shore, where a single power failure could mean the difference between operational success and catastrophic failure. In the depths of the North Sea or the Gulf of Mexico, where salt spray, extreme temperatures, and corrosive chemicals create some of the harshest electrical environments on Earth, the humble power cable becomes anything but humble. It transforms into a critical lifeline that must perform flawlessly under conditions that would destroy conventional electrical systems within months.
The RigFlex-125 Type P Power Cable represents a specialized engineering solution designed specifically for these unforgiving marine and offshore environments. This isn't just another power cable with enhanced specifications—it's a purpose-built component that addresses the unique challenges faced by drilling rigs, offshore platforms, and marine vessels where reliability isn't just important, it's absolutely essential for safety, environmental protection, and operational continuity.
Understanding why this particular cable matters requires appreciating the stakes involved in marine and offshore operations. When you're dealing with multi-million dollar equipment, crew safety in remote locations, and environmental responsibilities that span decades, every component must be engineered to exceed standard performance expectations. The RigFlex-125 Type P serves as a testament to how specialized engineering can meet these extraordinary demands.
Understanding the RigFlex-125 Type P: Core Purpose and Design Philosophy

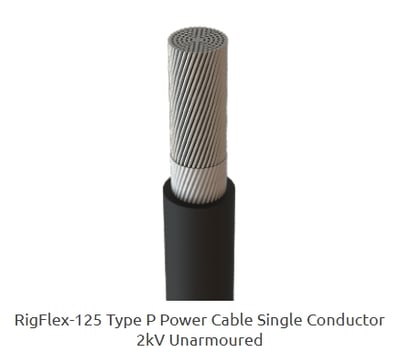

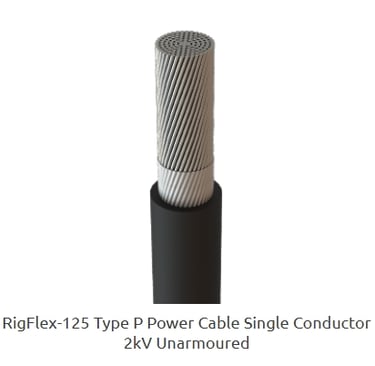

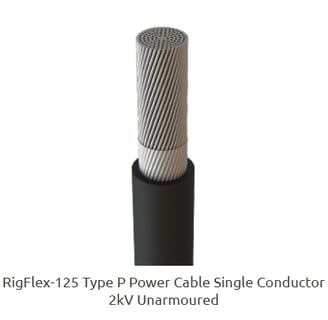

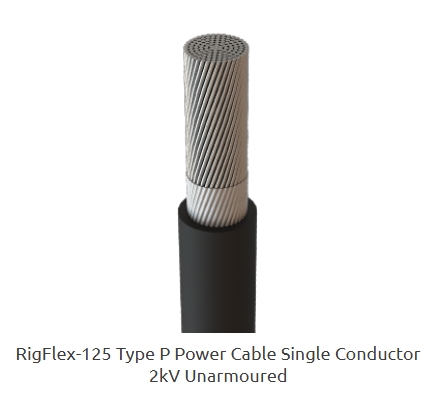

The RigFlex-125 Type P Power Cable is fundamentally a single-conductor, 2kV unarmoured power cable, but this simple description barely scratches the surface of its sophisticated engineering. To truly understand this cable, we need to examine it through the lens of its intended applications and the challenges it's designed to overcome.
At its core, this cable serves as the primary power distribution solution for ships and offshore oil rigs, environments where conventional cables would fail catastrophically. The designation "Type P" isn't arbitrary—it represents a specific classification within IEEE 1580 standards that indicates particular performance characteristics and material compositions suited for the most demanding marine applications.
The design philosophy behind the RigFlex-125 centers on what engineers call "extreme environment resilience." This means every component, from the innermost conductor to the outermost sheath, has been selected and engineered to withstand conditions that would be considered destructive in land-based applications. The cable must function reliably while exposed to saltwater spray, hydrocarbon chemicals, extreme temperature fluctuations, constant vibration, and the mechanical stresses associated with floating platforms and vessels in motion.
This approach to design represents a fundamental shift from traditional cable engineering, where the focus moves from meeting minimum standards to exceeding worst-case scenario requirements. When failure isn't an option, over-engineering becomes the responsible approach.
Dissecting the Design: The Science Behind Superior Performance
The Conductor: Engineering Excellence from the Inside Out
The heart of any power cable lies in its conductor, and the RigFlex-125 Type P employs soft annealed flexible stranded tinned copper wire that represents the pinnacle of conductor technology for marine applications. This isn't simply copper wire with a coating—it's a carefully engineered system where every aspect serves a specific purpose in the harsh marine environment.
The choice of tinned copper over bare copper might seem like a minor detail, but it represents a critical engineering decision that dramatically extends cable life in marine environments. When copper is exposed to the salt-laden atmosphere of offshore operations, it naturally oxidizes, creating a barrier that increases resistance and generates heat. Tinning—the process of coating copper with a thin layer of tin—creates a protective barrier that prevents this oxidation while maintaining excellent electrical conductivity.
The stranded construction of the conductor serves multiple engineering purposes beyond simple flexibility. In marine environments, cables experience constant movement from wave action, vibration from machinery, and thermal expansion and contraction cycles. Solid conductors would quickly develop stress fractures under these conditions, but stranded construction allows individual strands to move independently, distributing mechanical stress and maintaining electrical continuity even under extreme flexing conditions.
The soft annealing process further enhances this flexibility by relieving internal stresses in the copper that could lead to work hardening and eventual failure. This process ensures that the conductor maintains its flexibility characteristics throughout the cable's operational life, even after thousands of flexing cycles.
Compliance with IEEE 1580 Table 11 isn't just a specification checkmark—it represents adherence to conductor standards specifically developed for marine applications, ensuring optimal current-carrying capacity, voltage drop characteristics, and mechanical properties for shipboard and offshore use.
Insulation: The Critical Protective Barrier
The insulation system of the RigFlex-125 Type P employs cross-linked polyolefin compound, designated as Type P under IEEE 1580 and Type X110 under UL 1309/CSA C22.2 No.245. This material selection represents decades of research into polymer science and its application to extreme environment electrical systems.
Cross-linked polyolefin offers several advantages over traditional insulation materials that make it particularly suitable for marine applications. The cross-linking process creates chemical bonds between polymer chains, resulting in a three-dimensional network structure that dramatically improves the material's thermal, mechanical, and chemical resistance properties compared to thermoplastic alternatives.
From a thermal perspective, cross-linked polyolefin maintains its insulation properties and mechanical integrity at temperatures that would cause thermoplastic materials to soften and deform. This characteristic is crucial in engine rooms, equipment compartments, and other high-temperature areas common in marine installations.
The chemical resistance of cross-linked polyolefin becomes particularly important when considering the variety of chemicals present in marine and offshore environments. From fuel oils and hydraulic fluids to cleaning solvents and maintenance chemicals, the insulation must maintain its properties when exposed to substances that would degrade conventional insulation materials.
The optional separator tape, while seemingly minor, serves important practical purposes in cable installation and maintenance. This tape facilitates clean stripping of the insulation during termination procedures and provides an additional barrier between the conductor and insulation, which can be particularly valuable during installation in challenging conditions where precise workmanship might be difficult to achieve.
Sheath Material: The First Line of Defense
The outer sheath of the RigFlex-125 Type P serves as the cable's interface with the harsh realities of the marine environment. This isn't simply a protective covering—it's an engineered barrier system designed to prevent environmental factors from reaching the critical insulation and conductor components within.
The sheath material's compliance with IEEE 1580, UL 1309, and CSA C22.2 No.245 standards ensures that it meets rigorous requirements for oil resistance, abrasion resistance, flame propagation characteristics, and long-term UV stability. Each of these properties addresses specific challenges encountered in marine and offshore applications.




Engineered for Extremes: Performance Under Pressure
Environmental Resilience: Meeting Nature's Challenges
The environmental challenges faced by marine and offshore electrical systems are unlike those encountered in any other application. The RigFlex-125 Type P's resistance to oil and petrochemical fluids addresses one of the most pervasive threats in offshore environments. Unlike land-based installations where chemical exposure might be occasional, offshore platforms and marine vessels operate in environments where contact with hydrocarbons is routine and unavoidable.
Abrasion resistance becomes critical when cables must be routed through spaces where they may contact moving equipment, structural elements, or other cables. The constant motion of ships and floating platforms means that cables experience continuous micro-movements that can lead to abrasion damage over time. The RigFlex-125's sheath material is specifically formulated to withstand this type of wear while maintaining its protective properties.
Moisture and saltwater resistance represents perhaps the most fundamental requirement for marine cables. Saltwater is not just corrosive—it's electrically conductive, meaning that any breach in the cable's protective barriers can lead to immediate electrical failure. The multi-layer protection system of the RigFlex-125 creates multiple barriers against moisture ingress, ensuring that even minor damage to the outer sheath doesn't compromise the cable's electrical integrity.
UV resistance might seem less critical for cables that spend much of their service life indoors, but many marine and offshore installations include substantial outdoor cable runs. The intense UV radiation encountered in offshore environments, particularly in tropical regions, can degrade conventional cable materials within years of installation. The RigFlex-125's UV-resistant sheath ensures decades of reliable performance even under direct sunlight exposure.
Temperature Performance: Operating at the Extremes
The temperature ratings of the RigFlex-125 Type P—100°C for multi-core applications under IEEE 1580, 110°C under UL 1309, and 125°C for single-core applications—represent more than just maximum operating limits. These ratings indicate the cable's ability to maintain all of its performance characteristics, including insulation properties, mechanical strength, and chemical resistance, at temperatures that would cause conventional cables to fail.
High-temperature performance is particularly critical in marine applications where cables often must pass through engine rooms, equipment compartments, and other areas where ambient temperatures can exceed 50°C and radiant heat from machinery can push surface temperatures even higher. The ability to operate reliably at 125°C provides substantial safety margins and ensures reliable operation even under abnormal conditions.
Cold performance characteristics are equally important, particularly for cables that may experience temperature extremes during transportation, storage, or operation in northern climates. The cold bend test at -40°C and cold impact test at -35°C, both compliant with CSA C22.2 standards, ensure that the cable maintains its flexibility and impact resistance even under extreme cold conditions.
These cold weather capabilities are particularly important during installation procedures, where cables may need to be handled and bent in cold conditions. A cable that becomes brittle in cold weather can suffer installation damage that leads to premature failure, making cold performance characteristics a practical necessity rather than just a specification advantage.
Flame Propagation Resistance: Safety in Enclosed Spaces
Fire safety takes on paramount importance in marine and offshore environments where escape routes are limited and firefighting capabilities may be constrained. The RigFlex-125's compliance with IEEE 1202 and IEC 60332-3 flame propagation standards ensures that the cable will not contribute to fire spread in the event of an electrical fault or external fire source.
IEEE 1202 testing specifically addresses the flame propagation characteristics of cables in vertical installations, simulating the conditions that would be encountered in shipboard cable runs where cables often pass vertically through multiple decks. The standard requires that flame propagation be limited to specific distances and that the cable self-extinguish when the ignition source is removed.
IEC 60332-3 standards address flame propagation in bundled cable installations, recognizing that marine installations often involve multiple cables run together in cable trays or conduits. This standard ensures that even when multiple cables are involved in a fire scenario, the flame propagation remains limited and controllable.
Electrical Characteristics: Power Delivery Performance
The 2kV rating of the RigFlex-125 Type P positions it perfectly for medium-voltage power distribution applications common in marine and offshore installations. This voltage level provides an optimal balance between power transmission efficiency and safety considerations, allowing for substantial power transfer while maintaining manageable insulation requirements and safety clearances.
The test voltage specifications, compliant with IEEE 1580 Table 19, ensure dielectric strength and insulation integrity under both normal operating conditions and fault scenarios. These tests verify that the insulation system can withstand overvoltage conditions that might occur due to switching transients, lightning strikes, or equipment malfunctions.
Current carrying capacity, determined in accordance with IEEE 45.8, ensures that the cable can deliver its rated power without excessive temperature rise. This standard specifically addresses the unique thermal conditions encountered in marine installations, including the effects of bundling with other cables, installation in enclosed spaces, and the thermal characteristics of shipboard environments.
Standards and Compliance: The Foundation of Trust
IEEE 1580: The Marine Cable Standard
IEEE 1580, titled "Recommended Practice for Marine Cable," represents the culmination of decades of experience in marine electrical systems. This standard addresses every aspect of marine cable design, from conductor materials and insulation systems to testing procedures and installation practices. For the RigFlex-125 Type P, compliance with IEEE 1580 isn't just about meeting specifications—it's about ensuring compatibility with marine electrical systems and installation practices developed specifically for the unique challenges of shipboard and offshore environments.
The standard addresses critical factors that are unique to marine applications, including the effects of constant vibration, the corrosive effects of salt air, the need for compact installation in space-constrained environments, and the requirement for long-term reliability in locations where maintenance access may be limited.
UL 1309 and CSA C22.2 No.245: North American Safety Standards
The UL 1309 and CSA C22.2 No.245 standards represent the North American approach to marine cable safety, with particular emphasis on fire safety and electrical protection characteristics. These standards complement IEEE 1580 by providing specific requirements for cable behavior under fault conditions and ensuring compatibility with North American electrical codes and installation practices.
Compliance with these standards is particularly important for vessels and offshore installations that operate in North American waters or are built to North American standards. The standards address specific requirements for flame resistance, smoke generation, and toxicity of combustion products—all critical factors in enclosed marine environments.
IEEE 45: System Integration Standards
IEEE 45, "Recommended Practice for Electric Installations on Shipboard," provides the broader context for electrical system design and installation practices. While IEEE 1580 focuses specifically on cable characteristics, IEEE 45 addresses how cables integrate into complete electrical systems, including considerations for system protection, grounding, and installation methods.
The RigFlex-125's compliance with IEEE 45 requirements ensures that it will integrate seamlessly with properly designed marine electrical systems, including compatibility with protection devices, grounding systems, and installation hardware.
The Value of Standards Compliance
For procurement officers and engineers, standards compliance provides several critical benefits beyond simple regulatory compliance. Standards ensure consistent quality and performance characteristics across different manufacturers and production batches, facilitating interchangeability and reducing the risk of compatibility issues during installation or maintenance.
From a safety perspective, standards compliance provides assurance that the cable has been tested and verified to meet specific performance requirements under standardized conditions. This testing includes not just basic electrical characteristics but also fire performance, environmental resistance, and mechanical durability—all critical factors in marine applications.
Standards compliance also facilitates regulatory approval processes. Marine installations must typically meet various national and international regulations, and the use of standards-compliant components significantly simplifies the approval process and reduces the risk of regulatory issues during inspection or certification procedures.
Practical Engineering Considerations
Minimum Bending Radius: Installation Reality
The minimum bending radius specifications for the RigFlex-125 Type P—4 times the cable diameter for cables 25mm and smaller, and 6 times the diameter for larger cables—represent more than just installation guidelines. These specifications define the physical constraints that must be considered during system design and installation planning.
In the space-constrained environment of ships and offshore platforms, cable routing often involves tight bends around structural elements, through small openings, and around equipment installations. The minimum bending radius specifications ensure that these installation requirements can be met without compromising the cable's performance or longevity.
Exceeding the minimum bending radius can lead to several problems, including insulation stress that can cause premature failure, conductor damage that increases resistance and heat generation, and mechanical stress that can lead to jacket cracking and moisture ingress. Understanding and respecting these limitations is critical for achieving the full service life potential of the cable installation.
Unarmoured Design: Balancing Protection and Practicality
The unarmoured design of the RigFlex-125 Type P represents a carefully considered engineering decision that balances protection requirements with practical installation and performance considerations. Compared to armoured cables, the unarmoured design offers several significant advantages in marine applications.
Weight reduction is a critical factor in marine installations where every pound matters for stability, fuel efficiency, and structural loading. The elimination of metallic armor significantly reduces cable weight while maintaining the essential protective characteristics through advanced sheath materials and construction techniques.
Flexibility advantages become particularly important in applications where cables must accommodate the constant movement of floating platforms and vessels. Armoured cables, while offering superior mechanical protection, can be significantly less flexible and more prone to fatigue failure under constant flexing conditions.
Installation advantages include easier handling during installation, reduced requirement for specialized installation tools, and greater ability to route cables through complex pathways. In the confined spaces common in marine installations, these advantages can significantly reduce installation time and costs.
However, the unarmoured design does require consideration of external protection requirements. In areas where cables may be subject to mechanical damage, external conduits, cable trays, or other protective measures may be necessary to provide the mechanical protection that would otherwise be provided by cable armor.
Applications Beyond Traditional Marine Use
While the RigFlex-125 Type P is specifically designed for ships and offshore oil rigs, its exceptional performance characteristics make it suitable for other demanding applications where conventional cables might not provide adequate performance or longevity.
Port facilities and marine terminals often present similar environmental challenges to those encountered offshore, including salt spray, chemical exposure, and mechanical stresses from cargo handling equipment. The RigFlex-125's environmental resistance characteristics make it an excellent choice for these applications.
Industrial applications involving chemical processing, particularly in coastal areas where salt air is a factor, can benefit from the cable's chemical resistance and environmental durability. The high-temperature ratings also make it suitable for applications involving process heating or equipment that generates significant thermal loads.
Critical infrastructure applications, such as power distribution for emergency services, communications facilities, or other installations where reliability is paramount, can benefit from the over-engineered characteristics of the RigFlex-125 Type P, even in less demanding environments.
Investment Analysis: Understanding Long-Term Value
The RigFlex-125 Type P Power Cable represents a strategic investment that must be evaluated not just on initial cost, but on total cost of ownership over the expected service life of the installation. In marine and offshore applications, where cable replacement can involve significant downtime, specialized equipment, and challenging working conditions, the reliability and longevity of the initial cable installation become critical economic factors.
The superior environmental resistance characteristics of the RigFlex-125 translate directly into extended service life compared to conventional cables. In environments where standard cables might require replacement every 5-10 years, the RigFlex-125 can provide reliable service for decades, significantly reducing life-cycle costs and the operational disruptions associated with cable replacement.
The high-temperature performance characteristics provide operational flexibility that can prevent costly downtime during peak demand periods or emergency conditions. The ability to operate reliably at elevated temperatures means that the cable system can continue to function even when other systems are operating at their limits.
The flame resistance and safety characteristics of the RigFlex-125 provide insurance against catastrophic failures that could result in equipment damage, environmental releases, or safety incidents. In marine and offshore environments, where the consequences of electrical failures can be severe, the superior safety characteristics of the cable system represent significant risk mitigation value.
Conclusion: Engineering Excellence for Critical Applications
The RigFlex-125 Type P Power Cable stands as a testament to what can be achieved when engineering excellence meets the demands of extreme operating environments. This cable doesn't just meet the minimum requirements for marine and offshore applications—it exceeds them with substantial margins that provide confidence in long-term performance and reliability.
The sophisticated material selection, from the tinned copper conductor to the cross-linked polyolefin insulation system, represents the culmination of decades of research and development in marine electrical systems. Every component has been selected and optimized for the unique challenges of marine and offshore environments, resulting in a cable system that delivers exceptional performance where conventional cables would fail.
The comprehensive standards compliance—IEEE 1580, UL 1309, CSA C22.2 No.245, and IEEE 45—provides assurance that the cable meets the most rigorous requirements for marine electrical systems while ensuring compatibility with established installation practices and regulatory requirements.
For procurement officers, engineers, and facility managers responsible for marine and offshore electrical systems, the RigFlex-125 Type P represents more than just a cable—it represents a strategic investment in system reliability, operational continuity, and long-term cost effectiveness. In applications where failure is not an option, the over-engineered characteristics of the RigFlex-125 provide the performance margins necessary for confident operation in the world's most demanding electrical environments.
The question isn't whether you can afford to specify the RigFlex-125 Type P for your critical marine and offshore applications—it's whether you can afford not to. When operational continuity, safety, and long-term reliability are paramount, the RigFlex-125 Type P Power Cable provides the engineering excellence that critical applications demand.
