BS7917 MGT/EPR/ZH/GSWB/SW4 Marine Cable Guide – Fire-Resistant & EMC-Compliant for Offshore Use

Introduction: The Unsung Hero of the High Seas

In the demanding world of marine and offshore operations, where equipment must withstand relentless salt spray, extreme temperatures, and the constant threat of fire, specialized cables serve as the critical nervous system that keeps vessels and installations operational. Among these technological marvels stands the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable, a sophisticated engineering solution that represents decades of advancement in marine cable technology.

This remarkable cable combines multiple protective layers, advanced materials, and specialized construction techniques to deliver reliable power distribution and signal transmission in environments where failure is not an option. Understanding its construction and capabilities reveals why this particular cable specification has become indispensable for maritime professionals who demand the highest standards of safety and performance.

This comprehensive exploration will examine the intricate construction, diverse applications, electrical parameters, and practical considerations of the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable, demonstrating how each component contributes to its exceptional performance in the world's most challenging marine environments.

Applications: Powering and Connecting the Maritime World

The versatility of the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable becomes evident when examining its wide range of applications across maritime operations. This cable serves as a reliable workhorse in both fixed installations and exposed deck applications, where its robust construction proves invaluable.

Within fixed installations aboard ships, this cable forms the backbone of essential systems. Power distribution networks rely on its ability to safely carry electrical loads throughout the vessel, while control systems depend on its signal integrity for precise operation. Communication networks, which are vital for both operational efficiency and safety, benefit from the cable's electromagnetic shielding properties that prevent interference from disrupting critical data transmission.

Offshore installations present even more demanding challenges, where the BS7917 cable excels in supporting oil rigs, wind farms, and other marine structures. These environments require cables capable of withstanding not only the corrosive effects of saltwater but also the mechanical stresses imposed by wave action and equipment operation. The cable's construction ensures reliable power supply to heavy machinery, maintains data transmission integrity for monitoring systems, and supports safety systems that protect both personnel and equipment.

The cable's true test comes in open deck applications, where direct exposure to marine elements demands exceptional resilience. Navigation lights must remain operational regardless of weather conditions, requiring cables that resist ultraviolet radiation, temperature extremes, and mechanical abrasion. Winches and crane controls depend on cables that maintain flexibility while providing robust protection against the physical stresses encountered during cargo handling operations. Emergency systems, which must function when needed most, rely on the cable's fire-resistant properties and maintained circuit integrity during critical situations.

The selection of this particular cable specification for such demanding applications stems from its unique combination of features that address the specific hazards encountered in marine environments. Enhanced fire safety characteristics ensure that critical systems continue operating during emergencies, while electromagnetic compatibility prevents interference that could compromise sensitive navigation and communication equipment.

Deconstructing the Cable: Anatomy of Robustness

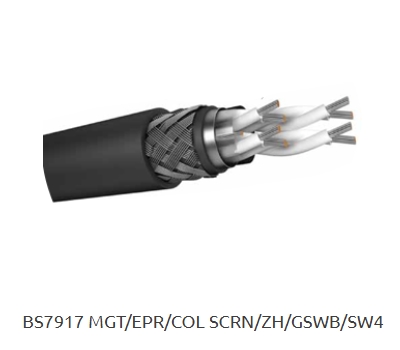

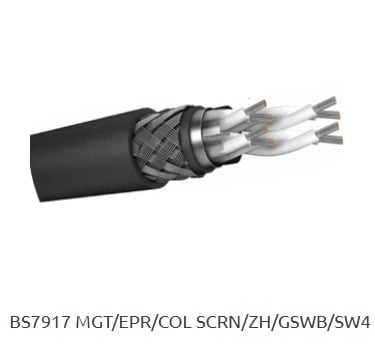

Understanding the construction of the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable requires examining each layer, beginning with the conductor at its core and working outward through the multiple protective barriers that give this cable its exceptional performance characteristics.

The foundation of any electrical cable lies in its conductor, and this specification employs electrolytic annealed Class 2 or Class 5 stranded tinned copper wires. The choice of copper provides excellent electrical conductivity, while the electrolytic annealing process ensures optimal electrical properties by removing impurities and relieving mechanical stresses. The stranding configuration offers significant advantages over solid conductors, providing flexibility that reduces fatigue failure in dynamic applications while maintaining excellent current-carrying capacity.

The tinning process, where a thin layer of tin coats each copper strand, serves as the first line of defense against the corrosive marine environment. This protective coating prevents the formation of copper oxides that would otherwise degrade electrical performance and create potential failure points. The stranding classes, whether Class 2 for moderate flexibility or Class 5 for enhanced flexibility, determine the cable's ability to withstand repeated bending and vibration without conductor damage.

Surrounding the conductor, a crucial flame barrier constructed from mica tape provides exceptional fire protection. Mica, a naturally occurring mineral with remarkable thermal properties, maintains its structural integrity at temperatures exceeding 800 degrees Celsius. During a fire, this barrier prevents flame propagation along the cable length while maintaining electrical circuit integrity, allowing critical systems to continue operating during emergency situations. The mica tape's layered construction creates multiple barriers that effectively contain both heat and flames.

The primary insulation layer consists of GP4 Type elastomer compound, typically based on Ethylene Propylene Rubber (EPR). This material selection reflects careful consideration of marine environmental requirements, as EPR exhibits excellent dielectric strength, maintaining its insulating properties across wide temperature ranges. The elastomer's flexibility ensures the cable remains serviceable in low-temperature conditions while its chemical resistance protects against oils, solvents, and other substances commonly encountered in marine applications.

Core identification utilizes white insulation with black numbering, providing clear visual distinction that simplifies installation and maintenance procedures. This systematic approach reduces the likelihood of wiring errors that could compromise system operation or safety, particularly important in complex installations where multiple circuits may be present in confined spaces.

The laying-up process, where individual cores are twisted in pairs or triples and then stranded in layers, serves multiple technical purposes. This configuration significantly reduces electromagnetic interference between cores, minimizing crosstalk that could corrupt signal transmission. The twisted arrangement also provides mechanical benefits by distributing stress evenly across all conductors during cable movement or bending.

The collective screen (COL SCRN) represents a sophisticated approach to electromagnetic compatibility. This common shield, typically constructed from aluminum-polyethylene composite foil with an associated drain wire, surrounds all cores within the cable. The screen effectively attenuates external electromagnetic interference that could disrupt sensitive signals while simultaneously preventing the cable from radiating its own electromagnetic emissions. The drain wire provides a low-impedance path for screen currents, ensuring effective grounding and shield performance.

An inner sheath of SW4 Type elastomer compound provides additional mechanical protection while serving as a bedding layer for the armoring system. This intermediate layer helps distribute mechanical loads and prevents the armor from directly contacting the screened cores, which could otherwise compromise the electromagnetic shielding effectiveness.

The armor construction utilizes Galvanised Steel Wire Braiding (GSWB) with a minimum coverage of 82 percent. This braided steel construction provides exceptional mechanical protection against crushing forces, impact damage, and abrasion that could otherwise penetrate to the cable's electrical elements. The galvanization process coats the steel wires with zinc, creating a sacrificial layer that protects against corrosion in the marine environment. The 82 percent minimum coverage ensures adequate protection while maintaining cable flexibility.

The outer sheath, constructed from SW4 Type elastomer compound with Zero Halogen (ZH) characteristics, serves as the primary barrier against environmental hazards. This Low Smoke Halogen-Free compound provides protection against ultraviolet radiation, oils, chemicals, and mechanical wear while offering superior fire performance. During combustion, the ZH formulation produces minimal smoke and no corrosive gases, crucial characteristics for maintaining visibility and preventing equipment damage during fire emergencies.

Construction according to BS 7917 standards ensures consistent quality and performance across all cable variants. This standard specifically addresses the unique requirements of marine and offshore applications, providing detailed specifications for materials, construction methods, and performance criteria. Compliance with electrical testing standards BS EN 50395 and non-electrical testing standards BS EN 50396 guarantees that each cable meets rigorous performance requirements under various environmental and operational conditions.

Electrical Parameters: The Heart of Performance

The electrical characteristics of the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable determine its suitability for specific applications and operational conditions. Understanding these parameters allows engineers to properly specify and apply the cable while ensuring safe and reliable operation.

Voltage rating represents the maximum voltage the cable can safely withstand under normal operating conditions. While specific voltage ratings depend on the exact cable variant and conductor size, marine applications typically require cables rated for medium voltage systems. The multi-layer insulation system, combining EPR primary insulation with the mica flame barrier, provides excellent dielectric strength that maintains insulation integrity even under demanding conditions.

Current carrying capacity, or ampacity, depends on several interconnected factors that must be carefully considered during installation planning. Conductor cross-sectional area directly influences current capacity, with larger conductors capable of carrying higher currents while generating acceptable temperature rise. The EP R insulation system contributes to current capacity through its thermal properties, allowing higher operating temperatures while maintaining long-term reliability.

Ambient temperature significantly affects current carrying capacity, as cables must dissipate heat generated by electrical losses. Installation method also influences ampacity, with factors such as cable grouping, burial depth, and ventilation affecting thermal performance. Marine environments often present challenging thermal conditions, making accurate ampacity calculations essential for safe operation.

Insulation resistance represents the cable's ability to prevent current leakage between conductors or from conductors to ground. High insulation resistance ensures electrical safety while preventing energy losses that could affect system efficiency. The EPR insulation system maintains excellent insulation resistance across wide temperature and humidity ranges, crucial characteristics for marine applications where moisture exposure is inevitable.

Capacitance and inductance parameters become particularly important in longer cable runs and high-frequency applications. The cable's geometry, including conductor spacing, insulation thickness, and overall construction, determines these electrical characteristics. For power applications, these parameters affect power quality and system stability, while signal transmission applications require careful consideration of their impact on signal integrity.

Characteristic impedance plays a crucial role in data transmission applications, where impedance matching prevents signal reflections that could corrupt transmitted information. The collective screen contributes to impedance control by providing a defined return path for high-frequency currents, essential for maintaining signal quality in communication circuits.

Fire performance characteristics represent critical safety parameters that distinguish this cable from conventional designs. The mica tape flame barrier maintains circuit integrity at temperatures exceeding normal insulation limits, allowing emergency systems to continue operating during fire conditions. The Low Smoke Zero Halogen properties of the outer sheath and EPR insulation significantly reduce smoke generation and eliminate halogenated gas emissions during combustion, improving visibility for evacuation procedures and preventing corrosive damage to sensitive equipment.

Frequently Asked Questions: Navigating Maritime Cable Challenges

Understanding the practical aspects of the BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable requires addressing common questions that arise during specification, installation, and maintenance activities.

The cable's exceptional resistance to the corrosive marine environment stems from its carefully selected materials and construction methods. Tinned copper conductors provide the first line of defense against corrosion, as the tin coating prevents copper oxidation that would otherwise degrade electrical performance. The galvanised steel wire braiding armor resists corrosion through its zinc coating, which acts as a sacrificial layer protecting the underlying steel structure. The SW4 elastomer outer sheath completes the protection system by providing excellent resistance to salt water, humidity, and ultraviolet radiation, forming an effective barrier against environmental degradation.

Fire safety characteristics make this cable particularly suitable for use in high-risk areas where fire represents a significant hazard. The mica tape flame barrier maintains electrical circuit integrity during fire conditions by withstanding extreme temperatures while preventing flame propagation along the cable length. This characteristic allows critical safety systems to continue operating during emergencies, potentially saving lives and protecting valuable equipment. The Zero Halogen outer sheath and EPR insulation significantly reduce smoke generation and eliminate the production of corrosive, toxic gases during combustion, improving visibility during evacuation procedures and minimizing damage to sensitive electronic equipment.

The collective screen feature provides superior electromagnetic compatibility in complex marine electrical environments. External electromagnetic interference, generated by equipment such as radar systems, radio transmitters, and motor drives, can disrupt sensitive signals if not properly controlled. The collective screen effectively attenuates this interference while preventing the cable from radiating its own electromagnetic emissions that could affect nearby equipment. This bidirectional protection ensures reliable operation of communication systems, navigation equipment, and control circuits in electrically noisy environments.

Installation considerations for open deck applications must account for the cable's robust but necessarily heavy construction due to its steel wire braiding armor. Proper cable support systems, including appropriate cleating intervals and cable trays, distribute mechanical loads to prevent stress concentrations that could damage the cable structure. Adherence to specified minimum bending radii prevents armor damage and maintains the integrity of internal components. Protection from direct sunlight, sharp edges, and potential impact requires careful route planning and the use of appropriate protective coverings where necessary.

The cable's versatility allows its use in both power and data transmission applications, though specific performance characteristics must be considered for each application type. The twisted core arrangement and collective screen provide good performance for power circuits while offering adequate signal integrity for control and certain data transmission requirements. The electromagnetic shielding proves particularly valuable in environments with high electrical noise levels, where unscreened cables might experience significant interference problems.

Maintenance procedures focus on preserving the cable's protective barriers and ensuring continued performance throughout its service life. Regular visual inspections should identify signs of mechanical damage, sheath degradation, or armor corrosion before they compromise the cable's integrity. Particular attention to cable glands and terminations ensures that sealing systems remain watertight, preventing moisture ingress that could lead to insulation failure. Any necessary repairs must utilize approved marine-grade materials and methods that maintain the cable's fire performance and electromagnetic shielding characteristics.

Conclusion: The Foundation of Maritime Reliability

The BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable represents a sophisticated engineering solution that addresses the unique challenges encountered in marine and offshore environments. Its multi-layer construction, combining tinned copper conductors, mica flame barriers, EPR insulation, collective screening, steel wire armor, and halogen-free outer sheath, creates a cable system capable of reliable operation under the most demanding conditions.

The cable's essential role in ensuring safety, efficiency, and continuous operation becomes clear when considering the critical systems it supports. From navigation equipment that guides vessels safely through treacherous waters to emergency systems that protect lives during crises, this cable specification provides the reliable foundation upon which maritime operations depend. Its enhanced fire safety characteristics and electromagnetic interference shielding capabilities address specific risks that could otherwise compromise vessel safety and operational efficiency.

The importance of selecting appropriate specialized cables for marine applications cannot be overstated, as the consequences of cable failure in maritime environments can be catastrophic. The BS7917 MGT/EPR/COL SCRN/ZH/GSWB/SW4 cable stands as a testament to engineering excellence in this critical field, demonstrating how careful material selection, sophisticated construction techniques, and rigorous testing standards combine to create solutions worthy of the trust placed in them by maritime professionals worldwide. In an industry where reliability means the difference between safe operations and disaster, this cable specification continues to prove its worth as an indispensable component of modern maritime infrastructure.
