BS7917 MGT/EPR/SW4 Marine Cables: Offshore Power & Safety Solutions

Introduction: Powering the High Seas and Beyond

Imagine standing on the deck of a massive cargo ship in the middle of the Atlantic Ocean, or working on an oil platform hundreds of miles from the nearest shore. In these challenging environments, where saltwater spray, extreme temperatures, and constant mechanical stress are daily realities, the electrical systems that keep everything running must be absolutely reliable. The failure of a single cable could mean the difference between safe operation and catastrophic disaster.

This is where specialized marine cables come into play, serving as the unseen lifelines that carry power throughout ships and offshore installations. Among these critical components, BS7917 MGT/EPR/SW4 cables stand out as particularly robust and versatile solutions designed specifically for the demanding world of maritime applications.

These cables represent more than just electrical conductors - they are engineered systems that must withstand conditions that would quickly destroy conventional wiring. Their compliance with the rigorous BS 7917 standard signifies that they have been designed, tested, and manufactured to meet the exacting requirements of marine and offshore environments, where reliability isn't just important - it's literally a matter of life and death.

Where These Cables Operate: Applications at Sea

To truly understand the importance of BS7917 MGT/EPR/SW4 cables, we need to explore the environments where they operate and the critical functions they perform. These cables are specifically designed for fixed installations, meaning they are permanently installed as part of a vessel's or platform's electrical infrastructure, rather than being used for temporary or portable applications.

In the maritime world, these cables find their home aboard various types of vessels, from massive container ships that traverse the world's oceans to sophisticated naval vessels equipped with the most advanced technology. On cargo ships, they carry power to essential systems including navigation equipment, cargo handling machinery, and the countless pumps and fans that keep the vessel operating safely. Passenger ships rely on these cables to power everything from cabin lighting to the sophisticated entertainment systems that keep thousands of passengers comfortable during their voyage.

The offshore industry presents perhaps the most challenging environment for electrical cables. Oil platforms, gas extraction facilities, and offshore wind farms all depend on BS7917 MGT/EPR/SW4 cables to maintain their operations. These installations face unique challenges including constant exposure to saltwater, extreme weather conditions, and the need for absolute reliability in environments where maintenance can be extremely difficult and expensive.

One of the most demanding applications for these cables is their use on open decks, where they are directly exposed to the full fury of marine environments. Picture the deck of an offshore platform during a North Sea storm - cables installed in these locations must withstand not only the mechanical stress of wind and waves but also constant exposure to UV radiation from the sun, corrosive saltwater spray, and temperature variations that can range from arctic cold to tropical heat. The ability of BS7917 MGT/EPR/SW4 cables to operate reliably in these conditions makes them invaluable for powering deck-mounted equipment including cranes, winches, and safety systems.

Unpacking the Engineering: Key Electrical Parameters and Construction

The remarkable performance of BS7917 MGT/EPR/SW4 cables in challenging marine environments is no accident - it results from careful engineering and the selection of materials specifically chosen for their properties under maritime conditions. Understanding the construction of these cables reveals why they perform so well where other cables would fail.

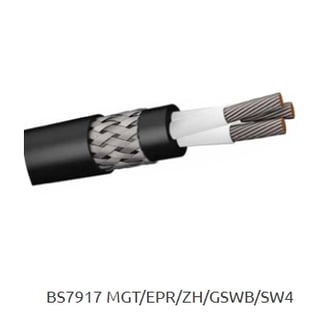

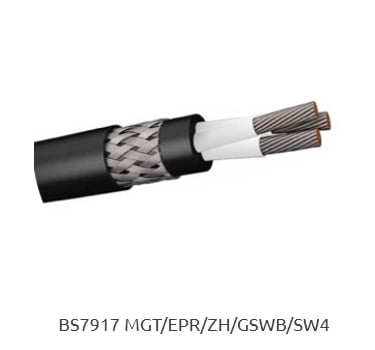

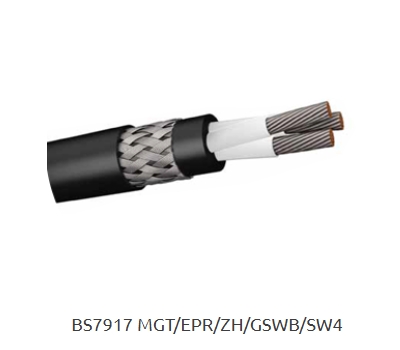

At the heart of every cable lies the conductor, the component responsible for carrying electrical current. BS7917 MGT/EPR/SW4 cables use electrolytic annealed, tinned copper wires as their conductors. This might seem like a simple choice, but each aspect of this specification serves a critical purpose. The copper provides excellent electrical conductivity, ensuring efficient power transmission with minimal losses. The annealing process involves heating and slowly cooling the copper, which relieves internal stresses and makes the metal more flexible - a crucial characteristic for cables that may need to be routed through complex pathways within ships or platforms.

The tinning process involves coating the copper with a thin layer of tin, providing protection against the corrosive effects of moisture and salt that are inevitable in marine environments. Without this protection, copper conductors would gradually corrode, leading to increased resistance, heat generation, and eventual failure. The tin coating acts as a barrier, significantly extending the operational life of the conductor.

These conductors are available in either Class 2 or Class 5 stranded configurations, terms that refer to the flexibility and construction of the conductor. Class 2 stranding uses relatively few, thicker individual wires, making it suitable for fixed installations where flexibility requirements are moderate. Class 5 stranding uses many more, thinner individual wires, providing greater flexibility while still maintaining the strength needed for permanent installations. This flexibility is important because even fixed installations may require cables to navigate tight bends or accommodate some movement due to the flexing of the vessel or platform structure.

Surrounding each conductor is a layer of insulation that serves the critical function of preventing electrical current from flowing where it shouldn't. The insulation system used in these cables consists of specialized elastomer compounds - GP4 Type for 600/1000 volt applications and GP5 Type for other voltage grades. Elastomers are polymers with elastic properties, meaning they can be stretched and will return to their original shape. This characteristic is invaluable in marine applications where cables may experience mechanical stress and movement.

The insulation serves multiple purposes beyond simply preventing electrical faults. It must maintain its properties across a wide range of temperatures, resist degradation from chemicals commonly found in marine environments, and provide consistent electrical performance over many years of service. The white coloration of the insulation with black numbering provides a practical benefit for installation and maintenance, allowing technicians to easily identify individual conductors even in the challenging lighting conditions often found in ship engine rooms or offshore facilities.

A critical safety feature found in these cables is the flame barrier constructed from mica tape. Mica is a naturally occurring mineral with remarkable properties that make it ideal for fire protection applications. When exposed to high temperatures, mica maintains its structural integrity and continues to provide electrical insulation even when organic materials around it are burning. This characteristic is absolutely crucial in marine applications where fire represents one of the most serious threats to safety.

In the event of a fire aboard a ship or offshore platform, the mica tape flame barrier serves two essential functions. First, it prevents the fire from spreading along the cable, helping to contain the blaze. Second, and perhaps more importantly, it maintains the integrity of critical circuits for a period of time, allowing emergency systems to continue operating when they are needed most. This might mean keeping emergency lighting operational during an evacuation or ensuring that fire suppression systems continue to receive power.

The protective system surrounding the insulated conductors represents another triumph of marine engineering. The inner sheath, constructed from SW4 Type elastomer compound, provides an additional layer of protection and helps maintain the structural integrity of the cable. This inner sheath also serves as a moisture barrier, preventing water from reaching the conductors even if the outer layers of the cable are damaged.

The armor layer consists of galvanized steel wire braiding with a minimum coverage of 82 percent. This braiding serves as the cable's primary defense against mechanical damage. In marine environments, cables may be subjected to impacts from equipment, abrasion from movement against ship structures, and crushing forces from heavy machinery. The steel wire braiding distributes these forces across the entire cable structure, preventing localized damage that could compromise the cable's integrity.

The galvanization process involves coating the steel wires with zinc, providing protection against corrosion in the saltwater environment. Without this protection, the steel armor would quickly rust, losing its strength and eventually failing to provide adequate protection for the cable. The galvanized coating significantly extends the service life of the armor system.

The outermost layer, the outer sheath made from SW4 Type elastomer compound, serves as the cable's first line of defense against environmental conditions. This sheath must resist UV radiation from sunlight, chemical attack from oils and fuels commonly found in marine environments, and the constant assault of saltwater and humidity. The SW4 compound is specifically formulated to maintain its properties under these challenging conditions, providing long-term protection for the cable's internal components.

The entire cable system is designed and manufactured in compliance with multiple rigorous standards. BS 7917 governs the overall construction requirements, ensuring that every aspect of the cable meets the demanding requirements of marine service. BS EN 50395 covers electrical testing procedures, verifying that the cable's electrical performance meets specified requirements. BS EN 50396 addresses non-electrical testing, including mechanical properties, fire resistance, and environmental performance. This comprehensive testing regime ensures that every cable meets the highest standards of quality and reliability.

Navigating Potential Challenges: Marine and Offshore Considerations

Working in marine and offshore environments presents unique challenges that don't exist in land-based installations, and understanding how BS7917 MGT/EPR/SW4 cables address these challenges helps explain their importance in these applications.

The corrosive nature of the marine environment represents perhaps the most significant long-term threat to electrical equipment. Saltwater is particularly aggressive, containing dissolved minerals that accelerate the corrosion of metals. When combined with the high humidity levels typically found in marine environments, this creates conditions that can quickly destroy inadequately protected electrical components.

BS7917 MGT/EPR/SW4 cables address this challenge through multiple layers of protection. The tinned copper conductors resist corrosion even if moisture somehow penetrates the cable's protective barriers. The galvanized steel wire braiding armor maintains its strength and protective capability even when exposed to saltwater. The SW4 Type elastomer outer sheath is specifically formulated to resist the penetration of moisture and salt, keeping these corrosive agents away from the cable's internal components.

Fire safety represents another critical concern in marine and offshore environments. Unlike land-based facilities where occupants can quickly evacuate to safety, ships and offshore platforms are isolated environments where fire represents an immediate threat to life. The space constraints typical of these installations mean that fires can spread rapidly, and the limited options for evacuation make it essential that critical systems continue operating during emergency situations.

The mica tape flame barrier in BS7917 MGT/EPR/SW4 cables addresses this challenge by maintaining circuit integrity during fire conditions. When a fire occurs, the mica tape prevents the flames from propagating along the cable while simultaneously maintaining electrical continuity for critical circuits. This allows emergency lighting systems to continue operating, fire suppression systems to receive power, and communication systems to remain functional during the critical period when crew members are responding to the emergency.

The mechanical stresses encountered in marine environments are far more severe than those found in typical land-based installations. Ships and offshore platforms are constantly in motion, subjecting all onboard equipment to vibration and mechanical stress. Heavy machinery creates impact loads, and the process of loading and unloading cargo or operating drilling equipment generates forces that can damage inadequately protected cables.

The galvanized steel wire braiding armor in these cables provides exceptional mechanical protection. The braided construction distributes impact forces across the entire cable surface, preventing localized damage that could compromise the cable's integrity. The elastomer compounds used for insulation and sheathing materials provide flexibility and resistance to fatigue, allowing the cable to withstand the constant small movements and vibrations that are characteristic of marine environments.

Chemical resistance represents another important consideration in marine and offshore applications. These environments frequently involve exposure to oils, fuels, hydraulic fluids, and various chemicals used in operations. Conventional cable materials may be degraded by these substances, leading to premature failure and potential safety hazards.

The SW4 Type elastomer compound used for both inner and outer sheaths is specifically formulated to resist common marine chemicals. This resistance extends the operational life of the cable and reduces the risk of failure due to chemical attack. The resistance is particularly important for cables installed in areas where exposure to petroleum products is likely, such as engine rooms, fuel handling areas, and drilling operations.

Installation and maintenance of cables in marine and offshore environments present their own unique challenges. Space constraints, limited access, and the need to maintain operations while performing maintenance all complicate these tasks. The design of BS7917 MGT/EPR/SW4 cables takes these factors into account.

The stranded conductor construction provides sufficient flexibility for routing through the complex pathways typical of ships and offshore platforms while maintaining the mechanical strength needed for permanent installations. The robust armor system protects the cable during installation, reducing the risk of damage from contact with sharp edges or rough surfaces commonly encountered in these environments.

Maintenance of these cables focuses primarily on visual inspection and testing of connections. The robust construction means that the cables themselves rarely require maintenance, but connection points represent potential weak spots where moisture or corrosion could cause problems. Regular inspection of cable terminations and connections, combined with appropriate protective measures, helps ensure long-term reliability.

The identification system using white insulation with black numbering proves particularly valuable during maintenance operations. In the challenging lighting conditions often found in ship engine rooms or offshore facilities, clear identification of individual conductors is essential for safe and efficient maintenance work.

Advanced Performance Characteristics and Technical Specifications

Understanding the technical performance characteristics of BS7917 MGT/EPR/SW4 cables provides insight into why they are so well-suited for demanding marine applications. These specifications represent the result of extensive engineering development and testing to ensure optimal performance under the challenging conditions encountered at sea.

The voltage ratings of these cables are carefully selected to match the power distribution systems commonly used in marine and offshore applications. The 600/1000 volt rating for GP4 Type insulation covers the majority of shipboard power systems, while higher voltage ratings using GP5 Type insulation accommodate the higher power requirements found in large vessels and offshore installations.

Temperature performance represents a critical specification for marine cables. These cables must operate reliably across a wide temperature range, from the sub-zero conditions that might be encountered in arctic operations to the high temperatures found in engine rooms and areas near heat-generating equipment. The elastomer compounds used in the insulation and sheathing maintain their properties across this entire temperature range, ensuring consistent electrical and mechanical performance.

The mechanical properties of the cable are equally important. The tensile strength of the overall cable structure must be sufficient to support the cable's own weight during installation while also withstanding the additional stresses imposed by the movement of the vessel or platform. The armor system provides much of this mechanical strength while also protecting the internal components from external damage.

Flexibility requirements must be carefully balanced against mechanical strength. While these cables are designed for fixed installations, they must still provide sufficient flexibility for installation through the complex routing paths typical of marine environments. The stranded conductor construction and elastomer materials provide this flexibility while maintaining the robust protection needed for long-term service.

The fire performance characteristics of these cables extend beyond simple flame resistance. The mica tape flame barrier not only prevents flame propagation but also maintains circuit integrity under fire conditions. This performance is quantified through standardized testing procedures that simulate actual fire conditions, ensuring that the cables will perform as expected when needed most.

Environmental resistance encompasses protection against UV radiation, ozone, chemicals, and the constant exposure to moisture and salt that characterizes marine environments. Each of these factors can cause degradation of cable materials over time, so the materials used in these cables are specifically selected and formulated to resist these forms of attack.

Future Developments and Industry Trends

The marine and offshore industries continue to evolve, driven by advancing technology, changing regulatory requirements, and the ongoing need for improved safety and environmental protection. These changes create new challenges and opportunities for cable technology, influencing the development of future generations of marine cables.

Digitalization of marine systems is creating new requirements for data transmission capabilities. While BS7917 MGT/EPR/SW4 cables are primarily power cables, the integration of smart systems throughout ships and offshore platforms is driving demand for hybrid cables that combine power and data transmission capabilities. Future developments may include versions of these cables that incorporate fiber optic elements or specialized conductors for high-speed data transmission.

Environmental regulations are becoming increasingly stringent, particularly regarding the materials used in marine applications. The elastomer compounds used in current cables already provide excellent environmental resistance, but future formulations may need to meet even more demanding requirements for recyclability and environmental impact.

The trend toward larger and more powerful vessels and offshore installations is driving requirements for higher power ratings and improved performance characteristics. This may lead to developments in conductor materials, insulation systems, and armor designs that provide enhanced performance while maintaining the reliability that makes these cables so valuable in marine applications.

Maintenance and monitoring technologies are also advancing, with the development of cables that incorporate sensing elements to monitor their own condition. These smart cables could provide early warning of developing problems, allowing maintenance to be performed before failures occur and reducing the risk of unexpected outages.

Conclusion: Ensuring Reliability in Demanding Environments

BS7917 MGT/EPR/SW4 cables represent a triumph of engineering, combining advanced materials science with practical design to create electrical conductors that can thrive in some of the most challenging environments on Earth. Their robust construction, incorporating tinned copper conductors, specialized elastomer insulation, mica tape flame barriers, and galvanized steel wire armor, provides the multi-layered protection needed for reliable operation in marine and offshore applications.

These cables serve as the unsung heroes of maritime operations, carrying power throughout ships and offshore installations while withstanding conditions that would quickly destroy conventional wiring. Their ability to resist corrosion, provide fire protection, withstand mechanical stress, and maintain electrical performance across wide temperature ranges makes them indispensable for safe and reliable marine operations.

The comprehensive testing and standards compliance that governs these cables ensures that every installation meets the highest requirements for quality and reliability. From the smallest workboat to the largest offshore platform, BS7917 MGT/EPR/SW4 cables provide the electrical backbone that keeps critical systems operating when they are needed most.

As the marine and offshore industries continue to evolve, these cables will undoubtedly continue to play a vital role in ensuring the safe and efficient operation of vessels and installations around the world. Their proven performance and reliability make them an essential component of modern maritime infrastructure, quietly but critically supporting the global economy and the people who work at sea.

Understanding the engineering behind these remarkable cables helps us appreciate the complexity and sophistication of modern marine electrical systems. While they may remain largely invisible to casual observers, BS7917 MGT/EPR/SW4 cables represent a crucial technology that enables the safe and reliable operation of our maritime world.
