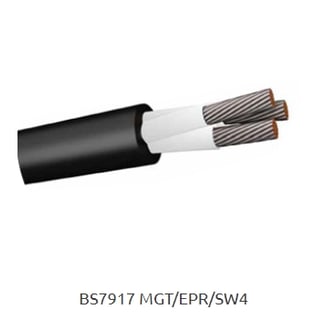

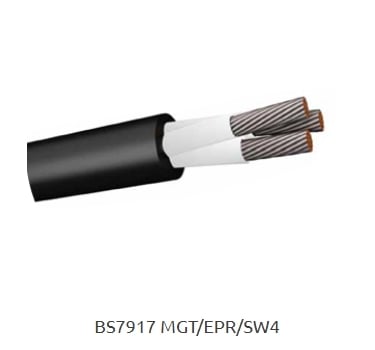

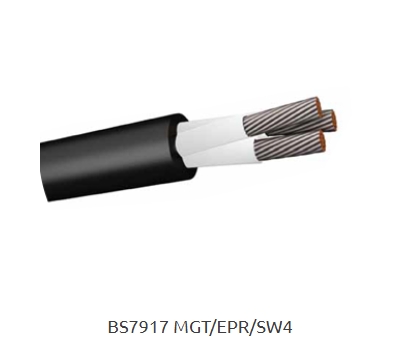

BS7917 MGT/EPR/SW4 Marine Cable: Technical Guide for Shipboard & Offshore Systems

Introduction

The marine environment presents unique challenges for electrical infrastructure, demanding cables that can withstand harsh conditions while maintaining reliable performance and safety standards. Among the specialized solutions designed for these demanding applications, the BS7917 MGT/EPR/SW4 marine cable stands as a prime example of engineering excellence tailored specifically for maritime and offshore electrical systems.

This sophisticated cable represents a carefully engineered solution that combines advanced materials science with decades of marine industry experience. The designation itself tells a story of specialized construction: BS7917 refers to the British Standard governing marine cables, MGT indicates the flame barrier technology, EPR denotes the elastomeric insulation compound, and SW4 specifies the specialized sheath material designed for marine environments.

Understanding the critical role these cables play in marine safety cannot be overstated. In shipboard and offshore installations, electrical systems must continue functioning even under extreme conditions, including fire emergencies, severe weather, and constant exposure to corrosive marine environments. The failure of electrical systems in such environments can have catastrophic consequences, making the selection of appropriate cable systems a matter of life and death.

Compliance with BS7917 and related standards represents more than just regulatory adherence; it embodies a commitment to safety, reliability, and performance that has been refined through years of marine industry experience and testing. These standards ensure that cables meet stringent requirements for fire resistance, mechanical durability, and electrical performance that are essential for marine applications.

Marine Application Scenarios

Shipboard Fixed Installations

The versatility of BS7917 MGT/EPR/SW4 cables makes them indispensable across various shipboard applications, each presenting unique challenges and requirements. In engine rooms, where temperatures can soar and mechanical vibrations are constant, these cables must maintain their integrity while powering critical propulsion and auxiliary systems. The combination of heat resistance and mechanical durability ensures that power delivery remains uninterrupted even in these demanding environments.

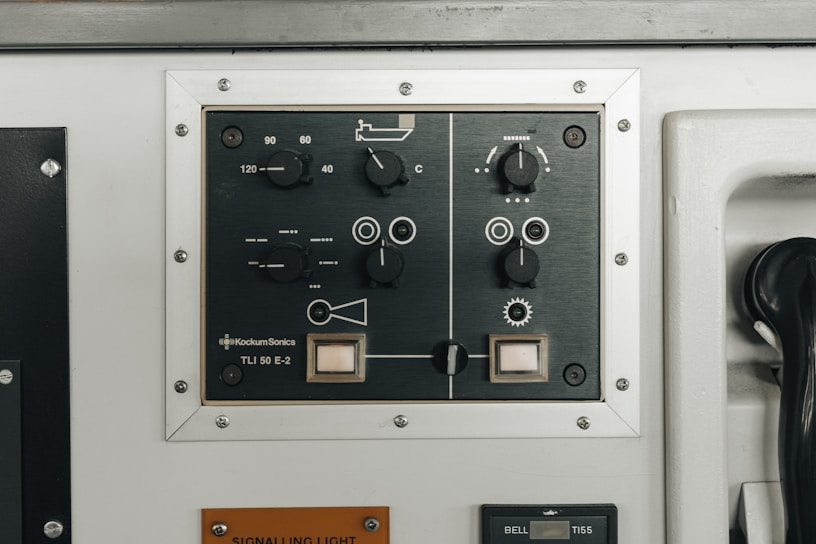

Control panels throughout the vessel rely on these cables to maintain precise electrical connections that enable navigation, communication, and safety systems. The reliability of these connections directly impacts the vessel's ability to operate safely, making the cable's consistent performance characteristics crucial for maritime operations.

Lighting systems aboard ships require cables that can withstand the constant motion and vibration inherent in marine environments. Whether illuminating navigation areas, work spaces, or emergency egress routes, the cable's flexible construction and durable sheath ensure that lighting systems remain functional when needed most.

Power circuits distributing electrical energy throughout the vessel must handle varying loads while maintaining safety standards. The cable's voltage rating and current-carrying capacity, combined with its fire-resistant properties, make it suitable for both primary power distribution and secondary circuits that support vessel operations.

The distinction between protected and unprotected environments aboard ships is particularly important when considering cable selection. Protected areas, such as interior spaces and machinery compartments, offer some shelter from direct weather exposure but may present other challenges like elevated temperatures or mechanical hazards. Unprotected areas, including open deck installations, expose cables to direct sunlight, saltwater spray, and extreme weather conditions that would quickly degrade lesser cable systems.

Offshore Units

Offshore platforms and drilling units represent some of the most challenging environments for electrical infrastructure. The combination of saltwater exposure, high winds, extreme temperatures, and mechanical stresses from drilling operations creates conditions that test the limits of cable performance.

Oil platforms require electrical systems that can operate reliably for extended periods with minimal maintenance opportunities. The remote location of these installations means that cable failures can result in costly downtime and potentially dangerous situations. The BS7917 MGT/EPR/SW4 cable's robust construction and corrosion-resistant properties make it well-suited for these demanding applications.

Drilling units present additional challenges due to the mechanical stresses associated with drilling operations. Vibrations from drilling equipment, combined with the dynamic forces from ocean conditions, create a complex stress environment that requires cables with exceptional mechanical durability. The cable's construction, featuring stranded conductors and elastomeric compounds, provides the flexibility and strength needed to withstand these challenging conditions.

The marine weather conditions encountered on offshore units can be extreme, with cables potentially exposed to hurricane-force winds, driving rain, and salt spray. The SW4 sheath material's resistance to UV radiation, oil, and water ensures that cables maintain their protective properties even under these harsh conditions.

Fire-Sensitive Zones

Fire safety represents a critical concern in marine environments, where the confined spaces and limited escape routes make fire prevention and suppression paramount. Regulations governing marine electrical installations require specific cable types in areas where fire risk is elevated or where maintaining circuit integrity during fire events is essential for safety.

The flame-retardant properties of BS7917 MGT/EPR/SW4 cables make them suitable for installation in areas where fire risk is a primary concern. The mica tape flame barrier provides exceptional fire resistance, ensuring that circuits remain functional during fire events long enough to enable safe evacuation and emergency response.

Fire-resistant cabling becomes particularly important in areas housing emergency systems, such as fire suppression controls, emergency lighting, and communication systems. These circuits must continue operating during fire events to support evacuation and firefighting efforts, making the cable's fire resistance properties not just regulatory requirements but essential safety features.

Electrical Specifications and Construction

Conductor Design and Materials

The foundation of any cable's performance lies in its conductor design, and the BS7917 MGT/EPR/SW4 cable employs electrolytic annealed copper that has been carefully processed to optimize both electrical and mechanical properties. The annealing process removes internal stresses and increases the copper's ductility, making it more resistant to fatigue from repeated flexing that occurs in marine environments.

The choice between Class 2 and Class 5 stranded conductors reflects different application requirements and installation considerations. Class 2 conductors, with their larger individual strands, provide excellent current-carrying capacity and are well-suited for fixed installations where flexibility requirements are moderate. Class 5 conductors, featuring smaller individual strands, offer superior flexibility that becomes essential in applications requiring frequent movement or installation in confined spaces with multiple bends.

Tinned copper construction represents a critical enhancement for marine applications, where corrosion resistance can significantly impact cable longevity and performance. The tin coating provides a barrier against corrosive elements present in marine environments, including salt spray and humidity. This protection extends the cable's service life and maintains reliable electrical connections over time, reducing maintenance requirements and improving system reliability.

The stranding pattern itself contributes to the cable's mechanical properties, with the helical arrangement of individual strands providing flexibility while maintaining structural integrity. This construction allows the cable to withstand the mechanical stresses associated with installation and operation in marine environments, including vibration, flexing, and thermal expansion and contraction.

Flame Barrier Technology

The mica tape flame barrier represents one of the most sophisticated fire protection technologies employed in marine cables. Mica, a naturally occurring mineral with exceptional thermal stability, maintains its structural integrity at temperatures that would destroy other materials. When applied as a tape around the conductor, it creates a continuous barrier that prevents flame propagation and maintains circuit integrity during fire events.

The application of mica tape requires precise engineering to ensure optimal performance. The tape must be applied with appropriate tension and overlap to create a continuous barrier without compromising the cable's flexibility. The thickness and grade of mica tape are carefully selected based on the specific fire resistance requirements and the cable's intended application.

During fire exposure, the mica tape undergoes a transformation that actually enhances its protective properties. As temperatures rise, the tape forms a ceramic-like barrier that continues to protect the conductor even as other cable components may be compromised. This characteristic ensures that critical circuits can continue operating during fire events, providing essential time for evacuation and emergency response.

The flame barrier's effectiveness extends beyond simple fire resistance to include protection against heat transfer, helping to prevent the spread of fire through cable pathways. This characteristic is particularly important in marine environments where cable runs may pass through multiple compartments and fire zones.

Insulation Properties and Performance

The GP4 type elastomer compound used for insulation represents a carefully formulated material designed to meet the specific requirements of marine electrical applications. This elastomeric compound provides excellent electrical insulation properties while maintaining flexibility across a wide temperature range, ensuring reliable performance in varying marine conditions.

The thermal properties of the GP4 insulation allow the cable to operate effectively in the elevated temperatures common in marine environments, including engine rooms and machinery spaces. The compound's thermal stability ensures that insulation properties remain consistent even under sustained high-temperature operation, preventing degradation that could compromise electrical safety.

Mechanical strength represents another critical characteristic of the GP4 insulation, with the compound formulated to resist abrasion, impact, and compression forces that occur during installation and operation. This mechanical durability helps prevent insulation damage that could result in electrical faults or safety hazards.

The elastomeric nature of the insulation compound provides flexibility that allows the cable to accommodate the movements and vibrations inherent in marine environments. This flexibility prevents stress concentrations that could lead to insulation cracking or failure over time, contributing to the cable's long-term reliability.

Sheath Construction and Materials

The SW4 type elastomer compound used for the cable sheath represents the cable's primary defense against environmental hazards. This specialized compound has been formulated to provide comprehensive protection against the multiple threats present in marine environments, including oil, ultraviolet radiation, water, and mechanical abrasion.

Oil resistance becomes particularly important in marine applications where cables may be exposed to hydraulic fluids, lubricants, and fuel oils. The SW4 compound's chemical resistance prevents degradation that could compromise the cable's protective properties, ensuring long-term reliability in environments where oil exposure is common.

Ultraviolet resistance protects cables installed in areas exposed to direct sunlight, preventing the photodegradation that can make cable sheaths brittle and prone to cracking. This protection is essential for deck installations and other exposed applications where UV exposure is unavoidable.

Water resistance encompasses both direct water exposure and the high humidity conditions common in marine environments. The SW4 compound's moisture resistance prevents water ingress that could compromise electrical safety and cable performance, while also resisting the corrosive effects of saltwater exposure.

Abrasion resistance protects the cable during installation and operation, preventing mechanical damage that could expose internal components to environmental hazards. This protection is particularly important in marine environments where cables may be subject to movement against structural elements or other cables.

Core Identification System

The core identification system employed in BS7917 MGT/EPR/SW4 cables uses white insulation with black numbering to provide clear, durable identification of individual conductors. This identification system is designed to remain legible throughout the cable's service life, even under the challenging conditions encountered in marine environments.

The choice of white insulation with black numbering provides excellent visual contrast that facilitates easy identification during installation and maintenance. This contrast remains effective even in the reduced lighting conditions common in marine installations, helping to prevent wiring errors that could compromise system performance or safety.

The durability of the identification system ensures that conductor identification remains clear throughout the cable's service life. The numbering system is integrated into the insulation compound, preventing fading or removal that could occur with applied markings or color coding systems.

Clear conductor identification becomes particularly important in marine applications where cables may be bundled together or routed through confined spaces. The ability to quickly and accurately identify individual conductors reduces installation time and helps prevent wiring errors that could have serious consequences in marine electrical systems.

Technical Performance Overview

Voltage Rating and Electrical Characteristics

The voltage rating of BS7917 MGT/EPR/SW4 cables, typically specified as 600/1000V, reflects the cable's ability to safely handle the electrical potentials commonly encountered in marine electrical systems. This rating system, expressed as rated voltage/test voltage, indicates both the maximum operating voltage and the test voltage used to verify insulation integrity.

The 600V rated voltage makes these cables suitable for the majority of marine electrical applications, including power distribution, lighting circuits, and control systems. This voltage level provides adequate capacity for most shipboard systems while maintaining the safety margins required for marine applications.

The 1000V test voltage demonstrates the cable's ability to withstand electrical stresses that may occur during operation, including transient overvoltages and testing procedures. This enhanced voltage capability provides additional safety margin and ensures reliable performance even under abnormal operating conditions.

Current-carrying capacity varies based on conductor size and installation conditions, with the cable's construction optimized to provide efficient current conduction while maintaining safe operating temperatures. The conductor design and insulation properties work together to ensure that heat generated by current flow is effectively managed and dissipated.

Temperature Performance Range

The operational temperature range of BS7917 MGT/EPR/SW4 cables, typically spanning from -40°C to +90°C, reflects the extreme conditions that may be encountered in marine environments. This wide temperature range ensures reliable performance across the full spectrum of marine operating conditions, from arctic shipping routes to tropical climates.

The low-temperature performance characteristics ensure that cables remain flexible and maintain their electrical properties even in extreme cold conditions. This capability is essential for vessels operating in polar regions or during winter conditions where cable brittleness could lead to mechanical failure.

High-temperature performance enables reliable operation in heated environments such as engine rooms and machinery spaces. The cable's ability to maintain its electrical and mechanical properties at elevated temperatures ensures continued performance even under the thermal stresses associated with marine propulsion and auxiliary systems.

The temperature rating also encompasses the cable's ability to handle thermal cycling, where repeated heating and cooling could stress the cable materials. The elastomeric compounds used in the cable construction are specifically formulated to withstand these thermal cycles without degradation.

Fire Resistance Properties

The fire resistance properties of BS7917 MGT/EPR/SW4 cables extend beyond simple flame retardancy to include circuit integrity maintenance during fire events. The mica tape flame barrier provides exceptional protection that allows circuits to continue operating even when exposed to fire conditions, providing critical time for emergency response and evacuation procedures.

Circuit integrity testing demonstrates the cable's ability to maintain electrical continuity when exposed to fire conditions for specified periods. This capability is essential for emergency systems that must continue operating during fire events, including emergency lighting, fire suppression controls, and communication systems.

The flame barrier technology also contributes to fire safety by preventing flame propagation along the cable length. This characteristic helps prevent fires from spreading through cable pathways, contributing to overall vessel fire safety and containment strategies.

Low smoke emission properties minimize the production of toxic gases and smoke during fire events, improving visibility and air quality for evacuation and firefighting operations. This characteristic is particularly important in marine environments where escape routes may be limited and smoke accumulation could impede safe evacuation.

Mechanical Durability and Environmental Resistance

The mechanical durability of BS7917 MGT/EPR/SW4 cables encompasses resistance to impact, abrasion, and UV degradation that could compromise cable performance in marine environments. The SW4 sheath provides comprehensive protection against these mechanical hazards while maintaining the cable's flexibility and electrical properties.

Impact resistance protects the cable from damage during installation and operation, preventing mechanical damage that could expose internal components or compromise electrical safety. This protection is particularly important in marine environments where cables may be subject to impacts from equipment movement or maintenance activities.

Abrasion resistance ensures that the cable sheath maintains its protective properties even when subject to repeated mechanical contact. This characteristic is essential for cables that may experience movement against structural elements or other cables during vessel operation.

UV resistance prevents photodegradation of the cable sheath when exposed to direct sunlight, maintaining the sheath's protective properties throughout the cable's service life. This protection is crucial for deck installations and other applications where UV exposure is unavoidable.

Common Marine Applications: Frequently Asked Questions

Open Deck Installations and Environmental Exposure

Marine electrical installations often require cables to operate in exposed environments where protection from environmental elements is limited or nonexistent. The question of whether BS7917 MGT/EPR/SW4 cables can withstand open deck conditions where direct exposure to UV radiation and saltwater is constant reflects a fundamental concern about cable durability in marine environments.

The SW4 sheath compound has been specifically formulated to address these environmental challenges, providing superior resistance to UV radiation that prevents the photodegradation that can make cable sheaths brittle and prone to cracking. This UV resistance is not simply a surface treatment but is integrated throughout the sheath compound, ensuring long-term protection even under constant sun exposure.

Saltwater resistance encompasses both direct exposure to seawater and the corrosive effects of salt spray that can penetrate into cable constructions. The SW4 compound's chemical resistance prevents salt-induced degradation while also providing a barrier against moisture ingress that could compromise electrical safety. This protection extends to the cable's resistance to salt crystal formation, which can create mechanical stresses that damage lesser cable constructions.

Oil resistance becomes particularly relevant in marine environments where hydraulic systems, fuel systems, and lubricants are commonly encountered. The SW4 sheath's oil resistance prevents chemical attack from these substances, maintaining the sheath's protective properties even when exposed to petroleum products that would quickly degrade other cable types.

Fire Performance and Emergency System Reliability

The performance of electrical cables during fire events represents a critical safety consideration in marine environments, where confined spaces and limited escape routes make fire suppression and evacuation particularly challenging. Understanding how BS7917 MGT/EPR/SW4 cables perform under fire conditions is essential for ensuring that emergency systems remain operational when they are most needed.

The mica tape flame barrier provides fire resistance that goes beyond simple flame retardancy to include circuit integrity maintenance during fire exposure. When exposed to fire conditions, the mica tape undergoes thermal transformation to form a ceramic-like barrier that continues to protect the conductor even as other cable components may be compromised by the extreme temperatures.

Circuit integrity testing demonstrates the cable's ability to maintain electrical continuity for specified periods during fire exposure, typically measured in hours rather than minutes. This extended fire resistance ensures that critical circuits, including emergency lighting, fire suppression controls, and communication systems, can continue operating during fire events long enough to support evacuation and firefighting efforts.

The fire resistance properties also contribute to preventing fire spread through cable pathways, as the flame barrier prevents fire from propagating along the cable length. This characteristic helps maintain fire compartmentalization strategies that are essential for marine fire safety, preventing fires from spreading between different areas of the vessel through electrical installations.

Corrosion Resistance and Service Life

The marine environment presents unique corrosion challenges that can significantly impact cable performance and service life. The use of tinned copper conductors in BS7917 MGT/EPR/SW4 cables addresses these challenges by providing enhanced corrosion resistance compared to bare copper conductors commonly used in other applications.

Tinned copper conductors feature a tin coating that provides a protective barrier against corrosive elements present in marine environments, including salt spray, humidity, and various chemicals. This tin coating prevents the formation of copper oxide and other corrosion products that can increase electrical resistance and compromise connection integrity over time.

The corrosion resistance of tinned copper becomes particularly important at connection points, where conductor exposure to environmental elements is most likely. The tin coating helps maintain low-resistance connections throughout the cable's service life, reducing maintenance requirements and improving system reliability.

Extended service life results from the combination of corrosion-resistant conductors and protective sheath materials that work together to prevent degradation. In marine environments where cable replacement can be difficult and costly, the extended service life provided by proper material selection represents significant economic and operational advantages.

Flexibility and Installation Considerations

Marine installations often present challenging routing requirements that demand cables with exceptional flexibility characteristics. The question of whether BS7917 MGT/EPR/SW4 cables provide adequate flexibility for tight-space installations reflects the practical realities of marine electrical work, where cables must often be routed through confined spaces with multiple bends and limited access.

Class 5 stranded conductors, when specified, provide enhanced flexibility compared to Class 2 conductors by using smaller individual strands that can more easily accommodate bending and flexing. This increased flexibility becomes particularly important in applications where cables must be routed through tight bends or where movement during operation is expected.

The elastomeric insulation and sheath compounds contribute to overall cable flexibility by providing materials that can accommodate bending without cracking or losing their protective properties. These compounds are formulated to maintain their flexibility across the full temperature range of marine operation, ensuring that installation flexibility is maintained even in cold conditions.

Installation flexibility also encompasses the cable's ability to withstand the pulling forces and mechanical stresses associated with cable installation in marine environments. The cable's construction provides the mechanical strength needed to survive installation while maintaining the flexibility required for proper routing and positioning.

Standards Compliance and Classification Society Approval

Marine electrical installations must comply with numerous standards and regulations that govern safety, performance, and construction requirements. The compliance of BS7917 MGT/EPR/SW4 cables with BS 7917 and testing standards BS EN 50395 and 50396 provides the foundation for meeting these regulatory requirements and obtaining necessary approvals from classification societies.

BS 7917 provides the fundamental requirements for marine cable construction, including specifications for materials, construction methods, and performance characteristics. Compliance with this standard ensures that cables meet the basic requirements for marine electrical installations and provides the foundation for further approvals and certifications.

BS EN 50395 governs electrical testing requirements, including insulation resistance, voltage withstand, and conductor resistance measurements. These tests verify that cables meet electrical performance requirements and can safely handle the electrical stresses encountered in marine applications.

BS EN 50396 covers non-electrical testing requirements, including mechanical tests, environmental resistance tests, and fire performance tests. These tests verify that cables can withstand the physical and environmental stresses associated with marine operation while maintaining their protective and performance characteristics.

Classification society approvals from organizations such as Lloyd's Register, Det Norske Veritas, and American Bureau of Shipping provide third-party verification that cables meet marine industry requirements. These approvals are typically required for commercial vessel installations and provide assurance that cables will perform reliably in marine service.

Conclusion

The BS7917 MGT/EPR/SW4 marine cable represents a sophisticated engineering solution that addresses the unique challenges of marine electrical installations through careful material selection, advanced construction techniques, and rigorous testing protocols. Its combination of marine-grade durability, exceptional fire resistance, comprehensive standards compliance, and proven electrical reliability makes it an essential component for safe and reliable marine electrical systems.

The cable's strengths lie in its integrated approach to marine environmental challenges, where each component from the tinned copper conductor to the SW4 sheath works together to provide comprehensive protection against the harsh conditions encountered in marine service. The mica tape flame barrier ensures that critical circuits remain operational during emergency situations, while the elastomeric compounds provide the flexibility and environmental resistance needed for long-term reliability.

The importance of selecting properly certified cables for marine applications cannot be overstated, as the consequences of cable failure in marine environments can be severe. The BS7917 MGT/EPR/SW4 cable's compliance with recognized marine standards and its proven performance characteristics provide the assurance needed for critical marine electrical installations.

For marine electrical professionals, understanding the technical capabilities and application requirements of specialized cables like the BS7917 MGT/EPR/SW4 is essential for designing and maintaining safe, reliable electrical systems. The investment in proper cable selection pays dividends through reduced maintenance requirements, extended service life, and most importantly, enhanced safety for personnel and equipment operating in marine environments.

The continued evolution of marine electrical systems and the increasing complexity of modern vessels make the selection of appropriate cable systems more critical than ever. The BS7917 MGT/EPR/SW4 cable represents the current state of the art in marine cable technology, providing the foundation for safe and reliable electrical installations that can meet the demanding requirements of modern marine operations.
