Beyond the Surface: How MarineLine YOZp FR 0.6/1 kV Cables Ensure Maritime Resilience

When you stand at a bustling port watching massive container ships dock or observe the steady glow of lights on an offshore oil platform, you're witnessing the visible results of sophisticated electrical infrastructure working tirelessly behind the scenes. At the heart of this infrastructure lies a critical component that most people never see but upon which maritime safety and efficiency absolutely depend: specialized electrical cables designed to withstand the harsh realities of marine environments.

Among these specialized cables, the MarineLine YOZp FR 0.6/1 kV represents a pinnacle of engineering innovation, combining advanced materials science with decades of maritime experience to create a solution that addresses the unique challenges of electrical systems in saltwater environments. This comprehensive exploration will illuminate the sophisticated design features that make these cables indispensable for modern maritime operations, from busy port terminals to remote offshore installations.

The Relentless Challenges of Maritime Environments

Understanding why specialized cables like the MarineLine YOZp FR are necessary requires first appreciating the extraordinary conditions they must endure. The maritime environment presents a perfect storm of challenges that would quickly destroy conventional electrical cables, creating not just operational failures but potentially catastrophic safety hazards.

Saline Corrosion: The Silent Destroyer

Salt water represents one of the most corrosive environments on Earth for electrical systems. When salt particles become airborne through spray or evaporation, they deposit on every surface, creating microscopic pathways for electrical current to leak and metals to corrode. This process, known as galvanic corrosion, occurs when dissimilar metals are present in a conductive environment, leading to accelerated degradation of the more reactive metal. In conventional cables, this means rapid deterioration of copper conductors and steel armor, resulting in reduced conductivity, mechanical weakness, and eventual failure.

The corrosion process becomes even more aggressive in the presence of oxygen and moisture, conditions that are abundant in marine environments. Standard cables designed for terrestrial applications typically use materials and protective coatings that prove inadequate against this relentless chemical assault, making specialized marine-grade solutions essential for reliable long-term performance.

Mechanical Stress: Forces in Constant Motion

Maritime installations experience mechanical stresses that land-based electrical systems rarely encounter. Ships roll and pitch with ocean swells, creating constant flexing and tension in cable runs. Port cranes subject cables to repeated bending cycles as they load and unload cargo, while offshore platforms must endure the dynamic forces of wind and waves that can create vibrations throughout the structure.

These mechanical stresses create fatigue in cable components, particularly in the conductor strands and protective layers. Over time, repeated flexing can cause individual copper strands to break, reducing current-carrying capacity and creating hot spots that may lead to insulation breakdown. The outer protective layers also experience wear from abrasion against mounting hardware and structural members, potentially exposing inner components to environmental damage.

Temperature Extremes: From Arctic Cold to Tropical Heat

Maritime electrical systems must function reliably across an enormous temperature range. A cable installed on a ship operating in Arctic waters might experience temperatures as low as -40°C, while the same vessel could later operate in tropical ports where ambient temperatures exceed 50°C and engine room environments can reach even higher temperatures.

These temperature variations create thermal cycling stress in cable materials, causing expansion and contraction that can lead to insulation cracking and conductor joint failures. Additionally, high temperatures accelerate chemical degradation processes in insulation materials, while low temperatures can make materials brittle and prone to mechanical damage.

Fire Risk: The Ultimate Safety Challenge

Perhaps the most critical challenge in maritime electrical systems is fire prevention and control. Ships and offshore platforms represent confined environments where a fire can quickly become catastrophic, threatening both human life and valuable assets. The combination of flammable materials, high electrical loads, and limited escape routes makes fire resistance a paramount concern in cable selection.

Traditional cables often use materials that, while adequate for normal operation, can become fire hazards themselves. PVC insulation, commonly used in standard cables, releases toxic hydrogen chloride gas when burned, creating a deadly atmosphere that can overcome occupants before they can escape. The dense smoke produced by burning conventional cables can also obscure escape routes and hamper firefighting efforts.

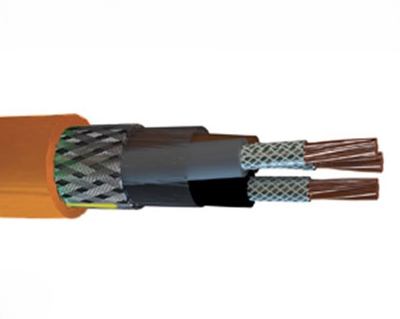

Engineering Excellence: Deconstructing the MarineLine YOZp FR Design

The MarineLine YOZp FR 0.6/1 kV cable represents a sophisticated engineering solution that addresses each of the maritime challenges through carefully selected materials and advanced construction techniques. Understanding its design requires examining each component and how they work together to provide superior performance in demanding marine environments.

Class 2 Stranded Copper Conductor: The Foundation of Reliability

At the heart of every MarineLine YOZp FR cable lies a Class 2 stranded copper conductor, constructed according to IEC 60228 standards. Rather than using a single solid copper wire, this design employs multiple fine copper strands twisted together to form the complete conductor. This stranded construction provides several critical advantages for marine applications.

The flexibility inherent in stranded conductors allows them to withstand the repeated bending and flexing common in maritime installations without experiencing the fatigue failures that plague solid conductors. Each individual strand can move slightly relative to its neighbors, distributing mechanical stress throughout the conductor cross-section rather than concentrating it at specific points.

From an electrical perspective, the stranded design provides superior current distribution compared to solid conductors. The multiple parallel paths for current flow reduce the effects of skin effect at higher frequencies, maintaining consistent electrical performance across a range of operating conditions. The increased surface area of stranded conductors also provides better heat dissipation, allowing for higher current carrying capacity in demanding applications.

Copper remains the conductor material of choice for marine applications due to its excellent electrical conductivity, resistance to corrosion, and mechanical properties. While aluminum conductors might be used in some terrestrial applications for weight savings, copper's superior performance in marine environments makes it the clear choice for critical maritime electrical systems.

Dual Insulation System: Mica Tape and XLPE Working in Harmony

The insulation system of the MarineLine YOZp FR cable employs a sophisticated dual-layer approach that combines the fire-resistant properties of mica tape with the electrical performance of cross-linked polyethylene (XLPE). This combination addresses both the electrical insulation requirements and the fire safety demands of maritime applications.

The inner layer consists of mica tape, a material derived from naturally occurring mica minerals known for their exceptional heat resistance and electrical insulating properties. Mica maintains its structural integrity at temperatures exceeding 1000°C, making it ideal for maintaining circuit integrity during fire conditions. When exposed to extreme heat, mica tape forms a ceramic-like barrier that continues to insulate the conductor, allowing critical circuits to operate during emergency situations.

This fire-resistant property is particularly crucial for emergency lighting systems, fire pump circuits, and communication networks that must continue operating during a fire to facilitate safe evacuation and firefighting efforts. The mica tape layer ensures compliance with IEC 60331 standards for fire-resistant cables, providing the circuit integrity required for life safety systems.

The outer insulation layer uses cross-linked polyethylene (XLPE), a thermosetting polymer that provides superior electrical properties compared to conventional thermoplastic insulations. The cross-linking process creates a three-dimensional molecular structure that enhances the material's resistance to heat, chemicals, and mechanical stress. This results in improved insulation resistance, lower dielectric losses, and enhanced long-term stability under the challenging conditions of marine environments.

XLPE insulation also exhibits excellent resistance to water absorption, a critical property in maritime applications where moisture ingress can lead to insulation breakdown and electrical failures. The material's resistance to ozone and ultraviolet radiation makes it suitable for outdoor installations where cables may be exposed to sunlight and atmospheric conditions.

Tinned Copper Braiding: Mechanical Protection and EMC Performance

The MarineLine YOZp FR cable incorporates a tinned copper braiding layer that serves multiple functions critical to marine electrical system performance. This metallic screen provides mechanical protection against impact and abrasion while simultaneously offering electromagnetic compatibility (EMC) benefits that are increasingly important in modern maritime installations.

The mechanical protection provided by the copper braiding is essential in the harsh environment of ships and offshore platforms. The braiding acts as a flexible armor that distributes impact forces across the cable's surface, preventing damage to the inner insulation and conductor. This is particularly important in areas where cables may be subject to foot traffic, cargo handling equipment, or contact with structural members during vessel movement.

The tinning process involves coating the copper braiding with a thin layer of tin, providing enhanced corrosion resistance in the marine environment. Tin forms a protective oxide layer that prevents the underlying copper from reacting with chloride ions present in salt spray and humid air. This tinned coating significantly extends the service life of the braiding, maintaining both its mechanical protection and electrical performance over time.

From an electromagnetic compatibility perspective, the copper braiding provides effective shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). Modern maritime installations contain numerous electronic systems, from navigation equipment to automation systems, all of which can generate electromagnetic fields that may interfere with sensitive circuits. The braiding acts as a Faraday cage, containing electromagnetic emissions from power cables and protecting sensitive signal circuits from external interference.

The braiding also provides a low-impedance path for fault currents, improving the effectiveness of protective systems and enhancing personnel safety. In the event of an insulation failure, fault current flows through the braiding to the grounding system, allowing protective devices to operate quickly and safely isolate the affected circuit.

LSOH Outer Sheath: Advanced Fire Safety Technology

The outer sheath of the MarineLine YOZp FR cable utilizes Low Smoke Halogen-Free (LSOH) thermoplastic polyolefin, representing a significant advancement in fire safety technology for maritime applications. This material addresses the critical need for cables that not only resist fire propagation but also minimize the production of toxic gases and dense smoke during thermal decomposition.

Traditional cable sheathing materials, particularly those containing halogens like chlorine and bromine, release toxic gases when exposed to fire. Polyvinyl chloride (PVC), commonly used in conventional cables, produces hydrogen chloride gas when burned, creating a corrosive and toxic atmosphere that can be lethal in the confined spaces typical of maritime installations. The LSOH sheath material eliminates these halogen-containing compounds, significantly reducing the toxicity of combustion products.

The low smoke characteristic of the LSOH sheath is equally important for life safety. Dense smoke can quickly obscure escape routes and hamper firefighting efforts, contributing to casualties even when the fire itself might be contained. The LSOH material produces minimal smoke when exposed to fire, maintaining visibility for evacuation and emergency response activities.

Beyond fire safety, the LSOH sheath provides excellent mechanical properties for maritime applications. The material exhibits superior abrasion resistance compared to conventional sheathing materials, withstanding the wear and tear associated with installation and operation in demanding marine environments. The lightweight nature of the polyolefin material also contributes to overall cable weight reduction, an important consideration in applications where weight affects vessel stability or platform loading.

The sheath incorporates an integrated ripcord, a practical feature that facilitates safe and efficient cable preparation during installation. The ripcord allows technicians to strip the outer sheath cleanly and safely, reducing installation time and minimizing the risk of damage to inner cable components during termination procedures.

Performance Characteristics: Engineering for Excellence

The MarineLine YOZp FR 0.6/1 kV cable's performance characteristics represent the culmination of advanced materials science and maritime engineering expertise. Each specification reflects careful consideration of the operational requirements and safety demands of marine electrical systems.

Fire Resistance: Beyond Flame Retardancy

The fire resistance designation of the MarineLine YOZp FR cable represents a crucial distinction in maritime safety applications. While flame retardant cables are designed to prevent fire propagation, fire-resistant cables must maintain circuit integrity during exposure to fire conditions for a specified period. This difference is critical for emergency systems that must continue operating during a fire to ensure safe evacuation and effective firefighting.

The fire resistance performance is achieved through the combination of mica tape insulation and LSOH sheath materials, providing compliance with IEC 60331 standards for fire-resistant cables. During fire conditions, the mica tape forms a ceramic-like barrier that maintains insulation properties at temperatures exceeding 750°C for periods up to 90 minutes, depending on the specific rating. This performance ensures that critical circuits such as emergency lighting, fire pump controls, and communication systems remain operational when they are most needed.

The importance of fire resistance in maritime applications cannot be overstated. In the confined environment of a ship or offshore platform, the failure of emergency systems during a fire can quickly transform a manageable incident into a catastrophic event. The fire-resistant properties of these cables provide the time necessary for safe evacuation and effective emergency response.

Voltage Rating: Understanding 0.6/1 kV Specifications

The voltage rating of 0.6/1 kV indicates the cable's suitability for low-voltage power distribution applications common in maritime installations. The notation follows international standards where the first number (0.6 kV) represents the rated voltage to earth (Uo) and the second number (1 kV) represents the rated voltage between phases (U) for three-phase systems.

This voltage rating makes the MarineLine YOZp FR cable ideal for shipboard power distribution systems, port terminal electrical installations, and offshore platform utility circuits. The 1 kV rating provides adequate safety margin for typical 400V and 690V marine electrical systems while maintaining the flexibility and cost-effectiveness associated with low-voltage cable designs.

The voltage rating also reflects the cable's insulation system design and testing requirements. Cables rated for 0.6/1 kV must undergo rigorous testing to demonstrate their ability to withstand not only the rated voltage but also the overvoltage conditions that can occur during switching operations or system disturbances. This testing includes voltage withstand tests, impulse voltage tests, and long-term aging tests that verify the cable's ability to maintain electrical integrity throughout its service life.

Temperature Performance: Engineered for Extremes

The temperature ratings of the MarineLine YOZp FR cable reflect the demanding thermal conditions of maritime environments. The maximum conductor temperature rating of 90°C allows for higher current carrying capacity compared to cables with lower temperature ratings, providing greater flexibility in system design and installation.

This higher temperature rating is achieved through the use of XLPE insulation, which maintains its electrical and mechanical properties at elevated temperatures. The cross-linked molecular structure of XLPE provides thermal stability that allows the cable to operate safely at higher temperatures without degradation of insulation properties or reduction in service life.

The cable's ability to operate across a wide temperature range is crucial for maritime applications where ambient conditions can vary dramatically. Installation temperature ratings ensure that the cable can be safely installed in cold weather conditions without becoming brittle or prone to mechanical damage. Similarly, the operating temperature range accommodates the thermal cycling that occurs in maritime environments, from the heat of tropical ports to the cold of polar waters.

Critical Applications: Where These Cables Make the Difference

The specialized capabilities of MarineLine YOZp FR cables make them indispensable across a wide range of maritime and offshore applications. Understanding these applications helps illustrate why the cable's sophisticated design features are not just beneficial but essential for safe and reliable operation.

Port Terminal Operations: The Gateway to Global Commerce

Modern port terminals represent some of the most electrically demanding environments in maritime operations. These facilities require reliable power distribution for massive container cranes, automated guided vehicles, refrigerated container connections, and extensive lighting systems that enable 24-hour operations. The MarineLine YOZp FR cable's combination of mechanical durability and fire resistance makes it ideal for these critical applications.

Container cranes, which can lift loads exceeding 100 tons, require cables that can withstand constant flexing as the crane moves along its rails and the boom extends and retracts. The stranded conductor design and robust construction of the MarineLine YOZp FR cable ensure reliable power delivery even under these demanding mechanical conditions. The fire-resistant properties are equally important in terminal environments where the concentration of electrical equipment and the presence of flammable materials create significant fire risks.

Shore power connections, which allow docked vessels to shut down their generators and connect to the port's electrical grid, represent another critical application. These connections must handle substantial electrical loads while maintaining safety and reliability. The LSOH sheath material is particularly valuable in these applications, as any fire involving shore power cables could affect both the vessel and port facilities.

Shipboard Systems: Power Distribution in Confined Spaces

Aboard vessels ranging from small coastal freighters to massive cruise ships, MarineLine YOZp FR cables provide the electrical backbone for propulsion systems, navigation equipment, lighting, and life safety systems. The confined spaces and complex routing requirements of shipboard installations demand cables that combine flexibility with durability and fire resistance.

The fire-resistant properties of these cables are particularly crucial for emergency circuits that must continue operating during a fire. Emergency lighting systems, fire pump controls, and general alarm circuits all rely on fire-resistant cables to maintain functionality when conventional power systems may be compromised. The LSOH sheath material further enhances safety by minimizing smoke and toxic gas production, critical factors in the confined environment of a vessel.

Navigation and communication systems aboard modern vessels increasingly rely on sophisticated electronic equipment that requires clean, stable power free from electromagnetic interference. The EMC shielding provided by the tinned copper braiding ensures that power cables do not interfere with sensitive electronic systems, maintaining the reliability of critical navigation and communication equipment.

Offshore Platforms: Electrical Systems in Extreme Environments

Offshore oil and gas platforms, wind farms, and other marine installations present perhaps the most challenging environment for electrical systems. These facilities must operate reliably in the harsh conditions of the open ocean, often hundreds of miles from shore with limited opportunities for maintenance or repair. The MarineLine YOZp FR cable's comprehensive design features make it particularly well-suited for these demanding applications.

The corrosion resistance provided by the tinned copper braiding and LSOH sheath is essential for offshore installations where salt spray and humid conditions create an extremely corrosive environment. The fire-resistant properties are equally critical, as fires on offshore platforms can quickly become catastrophic due to the presence of flammable hydrocarbons and the limited ability to evacuate personnel or bring in external firefighting resources.

Wind farms represent a growing application for marine electrical cables, where reliability and longevity are paramount due to the high cost of offshore maintenance operations. The mechanical durability and environmental resistance of MarineLine YOZp FR cables make them ideal for these installations, where cables may be exposed to continuous vibration from wind turbines and the corrosive marine environment.

The Foundation of Maritime Safety and Efficiency

The MarineLine YOZp FR 0.6/1 kV cable represents far more than a simple electrical component; it embodies the sophisticated engineering solutions required to ensure safe and reliable operation of our global maritime infrastructure. Through the careful integration of advanced materials, innovative construction techniques, and comprehensive testing, these cables provide the foundation upon which modern maritime operations depend.

The fire-resistant properties ensure that critical safety systems remain operational during emergency conditions, providing the time necessary for safe evacuation and effective emergency response. The LSOH sheath material minimizes the production of toxic gases and dense smoke, further enhancing life safety in the confined spaces typical of maritime installations. The mechanical durability and corrosion resistance ensure reliable operation throughout the cable's service life, reducing maintenance requirements and the risk of unexpected failures.

As maritime operations continue to evolve with increasing automation, electrification, and environmental consciousness, the importance of specialized cables like the MarineLine YOZp FR will only grow. These cables represent the invisible infrastructure that enables everything from the efficient movement of global commerce through our ports to the safe operation of offshore energy installations that power our modern world.

The engineering excellence embodied in these cables reflects the broader commitment to safety and reliability that characterizes the maritime industry. While passengers aboard a cruise ship or workers on an offshore platform may never see these cables, their lives depend on the continued reliable operation of the electrical systems these cables support. In this light, the MarineLine YOZp FR 0.6/1 kV cable truly represents one of the unsung heroes of maritime safety, ensuring that the vital electrical systems of our maritime infrastructure continue to operate safely and reliably in the face of the ocean's relentless challenges.
