Introduction to Application Scenarios in Modern Port Operations
Modern port facilities represent some of the most demanding environments for electrical infrastructure, where massive mechanical systems operate continuously under harsh maritime conditions. Understanding how specialized high-flexibility cables perform in these environments requires examining both the equipment they serve and the unique challenges they face.
Overview of Port Equipment and Cable Requirements

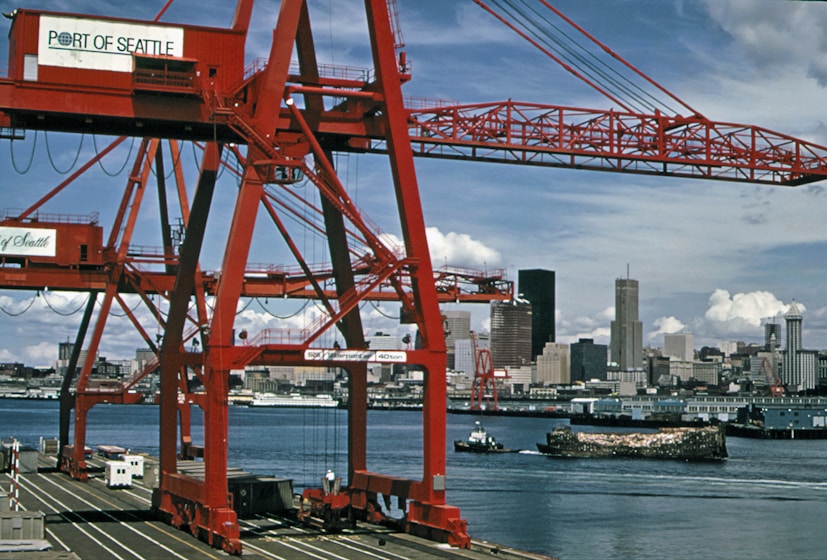

The backbone of modern port operations consists of three primary types of equipment, each presenting distinct electrical and mechanical demands. Ship-to-shore cranes, commonly known as STS cranes, serve as the critical link between ocean-going vessels and terminal infrastructure. These towering structures, often reaching heights of 100 meters or more, require reliable power transmission and precise control signals to manage loads exceeding 60 tons. The electrical systems powering these cranes must maintain consistent performance despite constant motion, including boom rotation, trolley movement, and hoist operations.
Rail-mounted gantry cranes, or RMG cranes, provide the intermediate handling capability within container yards. Unlike their ship-to-shore counterparts, RMG cranes operate on fixed rail systems but still require flexible cable solutions to accommodate their movement along lengthy tracks. The electrical demands here focus on maintaining signal integrity across distances that can exceed several hundred meters, while the mechanical requirements center on the cable's ability to withstand repeated flexing as the crane traverses its operational area.
Automated guided vehicles represent the newest evolution in port automation, requiring sophisticated communication networks and power distribution systems. These vehicles demand cables that can handle not only the electrical requirements of propulsion and control systems but also the data transmission needs of modern logistics software. The integration of AGVs into port operations has created new requirements for cable systems that can support high-frequency data transmission while maintaining the durability expected in maritime environments.
The importance of reliable power and signal transmission in these dynamic operations cannot be overstated. A single cable failure can halt operations across entire terminal sections, creating cascading delays that affect global supply chains. This reality has driven the development of specialized cable types designed specifically for the unique combination of electrical, mechanical, and environmental demands found in port operations.
Understanding Reeling Systems and Cable Track Applications
Cable reeling systems represent one of the most mechanically demanding applications for electrical cables in port environments. These systems, typically found on STS and RMG cranes, involve constant winding and unwinding of cables around drums as the equipment moves through its operational range. During a typical crane cycle, cables may experience complete extension and retraction multiple times, creating millions of flex cycles over the cable's operational lifetime.
The engineering challenges inherent in cable reeling systems extend beyond simple mechanical flexibility. As cables wind and unwind, they experience varying degrees of tension, compression, and torsional stress. The innermost layers of cable on a reel experience higher compression forces, while outer layers face greater tensional loads. This gradient of mechanical stress requires cable designs that can maintain electrical integrity across a wide range of physical conditions.
Cable trolley and sliding systems present a different set of challenges, focusing primarily on horizontal movement along fixed tracks. In these applications, cables typically follow the moving equipment through specialized cable carriers or tracks designed to support the cable weight while allowing smooth movement. The mechanical stresses in trolley systems tend to be more predictable than those in reeling applications, but they require cables that can maintain their structural integrity over extended distances and countless movement cycles.
The interaction between cable design and track systems also influences the choice of cable construction. Cables used in trolley systems must possess sufficient structural integrity to prevent sagging or binding within their guides, while maintaining the flexibility necessary for smooth movement. This balance between structural strength and flexibility represents a key engineering consideration in cable selection for these applications.
Environmental and Mechanical Demands in Maritime Settings
Port environments subject cables to an exceptionally harsh combination of environmental conditions that would quickly degrade standard electrical cables. The marine atmosphere introduces constant exposure to salt spray, which creates corrosive conditions that can penetrate cable jackets and attack internal components. This corrosive environment is further complicated by temperature variations that can range from subzero conditions during winter operations to extreme heat generated by direct sunlight and equipment operation.
Ultraviolet radiation from sunlight presents another significant challenge, particularly for cables that experience regular exposure during equipment movement. UV degradation can cause cable jackets to become brittle and crack, potentially exposing internal components to moisture infiltration. The combination of UV exposure and salt air creates an accelerated aging environment that requires specialized compound formulations to ensure acceptable service life.
Oil contamination represents an additional environmental factor that must be considered in port cable applications. Hydraulic systems, diesel-powered equipment, and general industrial operations create opportunities for cable contact with various petroleum products. Cables that cannot resist oil penetration may experience swelling, softening, or chemical breakdown of their protective jackets, leading to premature failure.
The mechanical stresses imposed by port equipment operation often exceed those found in typical industrial applications. High mechanical stress from frequent bending occurs as cables follow equipment through complex movement patterns, often involving simultaneous motion in multiple axes. Torsional forces develop when cables experience twisting motion, particularly in reeling applications where the cable must accommodate both winding action and equipment movement.
Tension forces in port cable applications can be substantial, particularly in vertical reel systems where the cable must support its own weight plus any additional loads imposed by equipment acceleration or deceleration. These tensional loads, combined with the dynamic nature of port operations, create fatigue conditions that require careful consideration in cable design and selection.
Electrical and Mechanical Parameters of High-Flexibility Marine Cables
Understanding the specific characteristics of different cable types is essential for proper application in port environments. Each cable type within the FMGC series offers distinct advantages tailored to specific operational requirements.




Comprehensive Cable Types Analysis
The FMGCG cable represents the foundation of the series, designed as a shielded, high-flexibility control cable optimized for communication and control applications. Its construction centers around electrolytic copper conductors that meet IEC 60228 Class 2 specifications, ensuring consistent electrical performance. The conductors utilize stranded, annealed copper wire construction that provides the flexibility necessary for dynamic applications while maintaining low electrical resistance.
The insulation system employs HF HEPR (High Frequency Halogen-free Ethylene Propylene Rubber) compound, specifically formulated to maintain its electrical properties across the wide temperature range encountered in port operations. This insulation material demonstrates excellent dielectric strength and insulation resistance, critical factors in maintaining signal integrity in high-frequency communication applications. The white coloration of the standard insulation provides visual identification, though alternative colors are available for specific application requirements.
FMGCH cables build upon the FMGCG foundation with enhanced mechanical performance characteristics specifically designed for more demanding flexing applications. The construction maintains the same high-quality conductor and insulation systems while incorporating design modifications that improve the cable's ability to withstand the mechanical stresses associated with reeling and trolley systems. The halogen-free outer sheath compound provides superior resistance to flame propagation while maintaining flexibility across the operational temperature range.
The FMGCCH configuration represents a significant advancement in cable technology, offering both individual pair shielding and overall cable shielding to minimize electromagnetic interference in complex signal environments. This dual-shielding approach proves particularly valuable in port applications where multiple control systems operate in close proximity, potentially creating interference between communication channels. The addition of drain wires for each shielded pair ensures effective grounding of the individual shields, maintaining signal integrity even in electrically noisy environments.
FMGCH-FFR cables incorporate fire-resistant technology designed to maintain circuit integrity during fire conditions. The addition of mica tape as a separator provides the thermal barrier necessary to preserve conductor integrity at elevated temperatures. This fire-resistant capability proves crucial in port applications where the consequence of communication system failure during emergency conditions could result in significant safety hazards or equipment damage.
Critical Electrical Specifications and Performance Characteristics
The electrical performance of these cables centers around their ability to maintain signal integrity while operating within specified voltage ranges. The rated voltage of 60/250V AC reflects the typical control and communication voltage levels found in port equipment, while the test voltage of 1.5kV provides assurance of adequate insulation strength for safe operation. This voltage rating proves adequate for most port control applications while remaining within the low-voltage classification that simplifies installation and maintenance requirements.
Insulation resistance performance is particularly critical in marine environments where moisture infiltration can create leakage paths that degrade signal quality. The HF HEPR insulation system maintains high insulation resistance values even under conditions of elevated humidity and temperature, ensuring consistent electrical performance throughout the cable's service life. The dielectric strength of the insulation system provides protection against voltage transients and ensures safe operation even under fault conditions.
Signal transmission integrity represents perhaps the most critical electrical parameter for communication cables in port applications. The twisted pair construction of these cables provides inherent noise rejection by ensuring that electromagnetic interference affects both conductors in each pair equally, allowing differential signal processing to eliminate common-mode noise. The overall shielding system provides additional protection against external electromagnetic interference, particularly important in port environments where high-power electrical equipment creates significant electromagnetic fields.
The electromagnetic compatibility (EMC) performance of shielded cables like FMGCG and FMGCCH proves essential for maintaining reliable communication in electrically noisy port environments. The copper braided screening with 90% coverage provides effective shielding against both electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring that control signals maintain their integrity even in the presence of powerful radar systems, radio communications, and variable frequency drive systems commonly found in port operations.
Mechanical Properties and Performance Requirements
The mechanical performance characteristics of high-flexibility port cables must address the unique combination of bending, torsion, and tensional stresses encountered in dynamic applications. The minimum bending radius specifications provide critical guidance for installation and operation, with FMGCG cables requiring a minimum radius of 8 times the cable diameter, while FMGCH and FMGCCH cables specify 12 times the cable diameter. These specifications reflect the different construction approaches and the resulting mechanical properties of each cable type.
Understanding bending radius requirements helps prevent cable damage during installation and operation. Exceeding the minimum bending radius can cause conductor deformation, insulation stress, and potential long-term reliability issues. In reeling applications, the drum diameter must be carefully selected to ensure that the cable experiences bending radii well above the minimum specification, even when fully wound.
Torsional strength becomes particularly important in reeling applications where cables may experience twisting motion as they wind and unwind. The stranded conductor construction and flexible insulation systems of these cables provide good torsional performance, but installation practices must still consider the cumulative effects of repeated torsional stress. Proper cable routing and reel design can minimize torsional stress and extend cable service life.
Tensile strength requirements in port applications often exceed those found in typical industrial installations. The vertical cable runs common in crane applications require cables that can support their own weight plus dynamic loads imposed by equipment acceleration and deceleration. The conductor construction and overall cable design must provide adequate tensile strength without compromising electrical performance or flexibility.
Abrasion resistance proves critical in applications where cables may contact moving equipment or experience rubbing against guide surfaces. The outer sheath compounds used in these cables incorporate materials specifically selected for their resistance to mechanical wear while maintaining flexibility and chemical resistance. Oil resistance capabilities ensure that contact with hydraulic fluids or other petroleum products will not cause immediate cable degradation, though prolonged exposure should still be avoided through proper installation practices.
The flex life performance of these cables often reaches into the millions of cycles, reflecting their design optimization for dynamic applications. This exceptional flex life results from careful attention to conductor stranding, insulation design, and overall cable construction. However, achieving maximum flex life requires proper installation practices, including adequate support systems, appropriate bending radii, and protection from excessive tensional or torsional loads.
Common Maritime Cable Challenges: Comprehensive Solutions and Technical Insights
The demanding nature of port operations creates unique challenges that require specialized technical solutions. Understanding these challenges and their solutions provides insight into both the cable selection process and the broader engineering considerations involved in port electrical system design.
Continuous Flexing Performance in Cable Reel Applications
The question of how cables handle continuous flexing in cable reels touches on fundamental materials science and mechanical engineering principles. FMGCH and FMGCH-FFR cables address this challenge through several coordinated design approaches that work together to maximize flex life while maintaining electrical performance.
The conductor design represents the foundation of flex performance, utilizing tight stranding patterns that allow individual wire strands to move independently during bending cycles. This independent strand movement distributes mechanical stress across multiple conductors rather than concentrating stress in specific areas. The stranding pitch and wire gauge are carefully optimized to provide the best balance between electrical performance and mechanical flexibility.
Special sheath compounds play an equally important role in flex performance. These compounds must maintain their flexibility across the wide temperature ranges encountered in port operations while providing adequate mechanical protection for internal cable components. The thermoplastic polyolefin compounds used in FMGCH and FMGCH-FFR cables offer superior low-temperature flexibility compared to traditional PVC compounds, maintaining their protective properties even under extreme cold conditions.
The extended flex life achieved by these cables results from the synergistic effects of optimized conductor design, advanced insulation materials, and carefully formulated sheath compounds. However, achieving maximum flex life in practical applications requires attention to installation factors including proper drum sizing, adequate cable support systems, and protection from excessive tensional loads during operation.
Environmental Resistance in Coastal Port Conditions
Port environments present a unique combination of environmental challenges that would quickly degrade cables not specifically designed for maritime service. The question of suitability for outdoor use in coastal environments addresses the comprehensive environmental resistance built into these cable designs.
Ultraviolet resistance proves critical for cables that experience regular sun exposure during equipment operation. The outer sheath materials incorporate UV stabilizers that prevent the polymer chains from breaking down under prolonged UV exposure. This UV resistance is verified through standardized testing procedures that simulate years of sun exposure in accelerated timeframes, ensuring that cables will maintain their protective properties throughout their intended service life.
Salt mist resistance addresses one of the most corrosive aspects of the marine environment. The halogen-free outer sheath compounds resist salt penetration while maintaining their flexibility and mechanical properties. This resistance extends beyond simple surface protection to include prevention of salt-induced stress cracking that can occur when cables experience mechanical flexing in salt-contaminated environments.
Oil resistance capabilities ensure stable performance when cables encounter the various petroleum products common in port operations. The thermoplastic polyolefin compounds used in these cables resist swelling and chemical breakdown when exposed to hydraulic fluids, diesel fuel, and lubricating oils. This chemical resistance prevents the degradation that could otherwise lead to premature cable failure in the oil-contaminated environments typical of heavy industrial operations.
Temperature stability across the specified range of -40°C to +90°C ensures reliable performance in both extreme cold conditions and the elevated temperatures that can result from direct sunlight, equipment heat, or electrical loading. The insulation and sheath materials maintain their electrical and mechanical properties across this entire temperature range, preventing the brittleness that could develop at low temperatures or the softening that might occur at elevated temperatures.
Signal Integrity Maintenance in Extended Mobile Cable Runs
Maintaining signal integrity in long, mobile cable runs represents one of the most technically challenging aspects of port cable applications. The combination of extended cable lengths, dynamic mechanical stress, and electrically noisy environments requires sophisticated shielding approaches to ensure reliable communication system performance.
The EMC-compliant shielding employed in FMGCG and FMGCCH cables utilizes copper braiding with 90% coverage to provide effective electromagnetic interference suppression. This high level of coverage ensures that external electromagnetic fields cannot significantly penetrate the cable and interfere with internal signal transmission. The copper braiding also provides a low-impedance path for interference currents, effectively shunting them away from signal conductors.
Twisted pair construction provides the foundation for noise rejection in communication cables. By twisting the two conductors in each pair around each other, any external electromagnetic interference affects both conductors equally, creating a common-mode signal that can be rejected by differential signal processing equipment. The twist rate is carefully optimized to provide maximum noise rejection while maintaining the mechanical flexibility required for dynamic applications.
The combination of twisted pair construction and overall shielding creates a highly effective noise rejection system that maintains signal integrity even in the presence of powerful electromagnetic interference sources. Variable frequency drives, large motors, and radar systems commonly found in port environments generate significant electromagnetic fields that could otherwise interfere with communication signals.
In FMGCCH cables, the addition of individual pair shielding provides an additional level of protection against both external interference and crosstalk between different signal pairs within the same cable. This dual-shielding approach proves particularly valuable in applications where multiple communication channels must operate simultaneously without mutual interference.
Fire Safety and Emergency Performance Characteristics
The question of cable performance during exposure to high heat or fire conditions addresses critical safety considerations in port operations. The FMGCH-FFR model incorporates several design features specifically intended to maintain circuit integrity during fire emergencies and reduce the risk of fire propagation through cable installations.
Flame-retardant performance meeting IEC 60332 standards ensures that cables will not contribute to fire propagation if exposed to ignition sources. The halogen-free outer sheath compounds are formulated to resist ignition and limit flame spread, helping to prevent cables from becoming a pathway for fire propagation throughout port facilities. This flame-retardant performance is particularly important in enclosed spaces where cable fires could quickly create dangerous conditions.
The fire-resistant construction of FMGCH-FFR cables incorporates mica tape barriers that maintain their integrity at elevated temperatures, providing thermal protection for internal conductors even when the outer sheath materials begin to degrade. This construction approach allows critical communication circuits to continue operating during the early stages of fire conditions, potentially providing additional time for emergency response and evacuation procedures.
Halogen-free construction eliminates the production of corrosive and toxic gases that would otherwise be generated if PVC or other halogenated materials were exposed to fire conditions. This characteristic proves particularly important in enclosed port facilities where toxic gas production could create additional hazards for personnel and equipment.
Low smoke density characteristics ensure that cable fires produce minimal smoke, maintaining visibility for emergency response operations and evacuation procedures. The combination of flame retardancy, low smoke production, and absence of toxic gas generation creates a comprehensive fire safety profile that addresses the unique requirements of port facility protection.
Hybrid Cable Solutions for Integrated Power and Control Systems
The capability for single cables to carry both power and control signals addresses the growing trend toward integrated electrical systems in modern port equipment. FMGCCH hybrid cables provide this combined transmission capability while maintaining the signal integrity required for reliable control system operation.
The design challenges inherent in hybrid cable construction center around preventing power conductors from interfering with control signals while maintaining the mechanical flexibility required for dynamic applications. Individual shielding around control pairs provides isolation from power conductors, while careful cable construction ensures that mechanical stresses are distributed evenly across all cable components.
Installation and maintenance advantages of hybrid cables become particularly apparent in tight equipment layouts where cable routing space is limited. By combining power and control functions in a single cable, installation complexity is reduced while maintenance access is improved. This consolidation also reduces the number of cable entry points required in equipment enclosures, potentially improving environmental protection.
The technical considerations involved in hybrid cable design include careful attention to conductor sizing to ensure that power conductors can carry required currents without generating excessive heat that could affect control signal performance. The cable construction must also ensure that electromagnetic fields generated by power conductors do not interfere with control signal transmission, despite their presence within the same cable assembly.
Conclusion and Future Considerations
The application of high-flexibility cables in port equipment and reeling systems represents a specialized field where electrical engineering, materials science, and mechanical design converge to address unique operational challenges. The FMGCG, FMGCH, FMGCCH, and FMGCH-FFR cable types each offer specific advantages tailored to different aspects of port operations, from basic control applications to fire-resistant emergency systems.
As port operations continue to evolve toward greater automation and integration, cable requirements will likely become even more demanding. The trend toward hybrid cable solutions reflects the industry's recognition that integrated approaches often provide superior performance and installation advantages compared to separate cable systems. Future developments may include enhanced data transmission capabilities to support the increasing digitization of port operations and improved environmental resistance to address evolving regulatory requirements.
The success of cable installations in port environments depends not only on proper cable selection but also on careful attention to installation practices, support systems, and maintenance procedures. Understanding the relationship between cable design characteristics and application requirements enables engineers to make informed decisions that optimize both performance and service life in these demanding applications.
